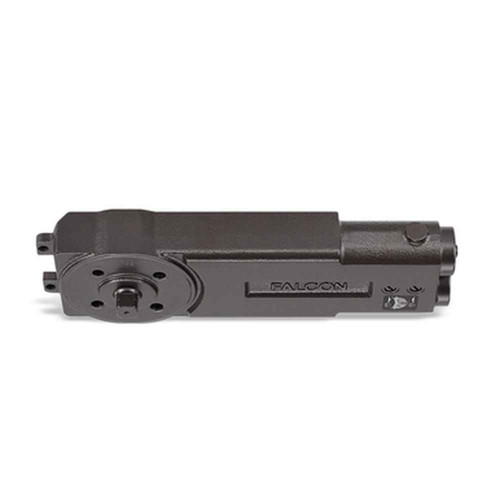

Falcon OHC100A Series Overhead Concealed Door Closer Complete Kit with Hold-Open Cylinder
Model: FAL-OHC100A
Falcon OHC100A Series Overhead Concealed Door Closer Complete Kit with Hold-Open CylinderProfessional Concealed Door Control Solution for Aluminum Frame ApplicationsThe Falcon OHC100A Series Overhead...
Falcon
Starting at
$423.00
$288.33

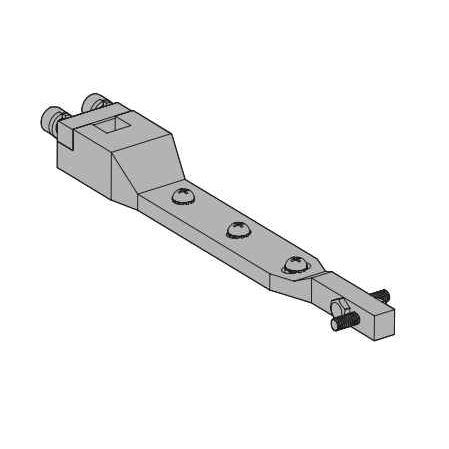

Falcon OHC100A-EL "A" Style End Load Arm for OHC100 Series Door Closers
Model: FAL-OHC100A-EL
Falcon OHC100A-EL "A" Style End Load Arm for OHC100 Series Door ClosersProfessional Door Closer Replacement ComponentThe Falcon OHC100A-EL is a professional-grade "A" style end load arm designed...
Falcon
$100.00
$72.89
Dormakaba RTS88 Overhead Concealed Door Closer Body Only
Model: DOR-RTS88
Dormakaba RTS88 Overhead Concealed Door Closer — Body Only
The RTS88 is engineered for installations where surface-applied closers are unsuitable or would compromise the architectural design. Fully...
Dormakaba
Starting at
$646.00
$401.64
Sargent 268 Overhead Concealed Door Closer with Cast Iron Body
Model: SGT-268
Sargent 268 Series Overhead Concealed Door Closer with Cast Iron Body and Hold Open Feature
Heavy-Duty Concealed Door Control Solution
The Sargent 268 Series Overhead Concealed Door Closer delivers...
Sargent
Starting at
$1,169.00
$724.38
Falcon OHC100A-AFK Mounting Bracket and Hardware Kit for OHC100 Series Door Closers
Model: FAL-OHC100A-AFK
Falcon OHC100A-AFK Mounting Bracket and Hardware Kit for OHC100 Series Door ClosersProfessional Door Closer Installation AccessoryThe Falcon OHC100A-AFK mounting bracket and hardware kit provides...
Falcon
$34.00
$24.78

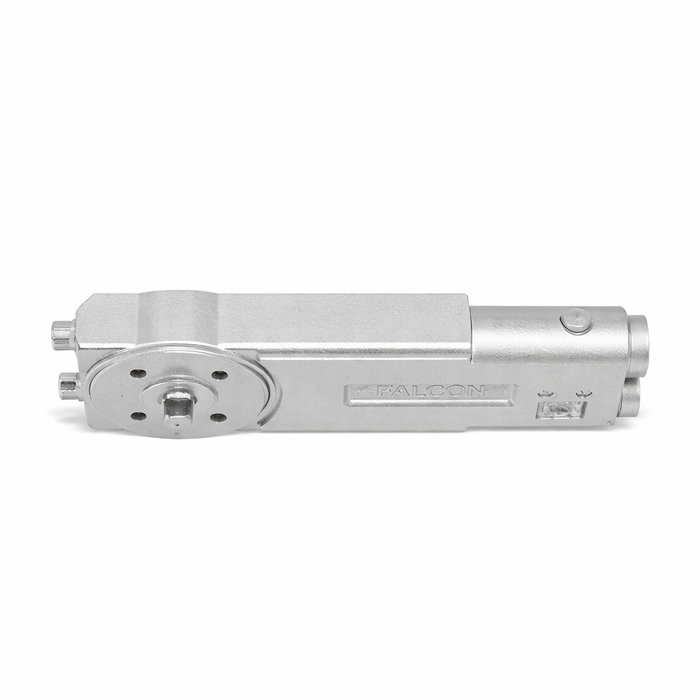

Falcon OHC100A Series Overhead Concealed Door Closer Body Assembly
The Falcon OHC100A Series body assembly is the cast iron replacement body component for Falcon's overhead concealed door closer system, designed to fit inside standard aluminum frame headers. Non-handed and ADA compliant, it supports 90° and 105° standard opening configurations with optional hold-open cylinders. Two body models cover the full closer size range: the OHC100 body accommodates adjustable sizes 3–5 (heavier doors), and the OHC101 body accommodates adjustable sizes 1–3 (lighter doors). Both match the Jackson hole pattern for straightforward retrofit into existing frames.
Key Features
- Cast Iron Construction: Durable, commercial-grade body for long-term reliability in high-traffic applications.
- Correct Size Range by Model: OHC100 body — adjustable sizes 3–5; OHC101 body — adjustable sizes 1–3. Select the body that matches your existing closer size.
- Standard Frame Compatibility: Fits inside standard aluminum frame headers; Jackson hole pattern matches for easy retrofit.
- Dual Opening Configurations: Standard 90° and 105° opening; hold-open cylinder variants available at 90° and 105°.
- Non-Handed: Installs on either hand of door — no separate handing required.
- UL10C Fire Rated: Compliant when used without hold-open feature for fire-rated door applications.
- ADA Compliant: Meets ADA opening-force requirements for accessible door applications.
- BAA Qualified: Buy American Act qualified for government and federally funded projects.
- 5-Year Manufacturer Warranty: Backed by Falcon's standard commercial warranty.
Technical Specifications
- Body Material: Cast Iron
- Application: Commercial
- Handing: Non-Handed
- Closer Size Range — OHC100: Adjustable Sizes 3–5
- Closer Size Range — OHC101: Adjustable Sizes 1–3
- Opening Angles: 90° and 105°
- Cylinder Options: Standard or Hold Open
- Finishes Available: AL (Aluminum Painted), DKBRZ (Dark Bronze Painted)
- Fire Rating: UL10C (without hold-open)
- ADA Compliant: Yes
- BAA Qualified: Yes
- Warranty: 5 Years
- Frame Compatibility: Standard Aluminum Frames (Jackson Hole Pattern)
Typical Applications
- Commercial office buildings and lobbies
- Healthcare and medical clinic facilities
- Educational and library buildings
- Retail and restaurant entrances
- Government and institutional buildings (BAA-required projects)
- Fire-rated aluminum frame door systems
- Retrofit and replacement of existing OHC100A Series installations
Installation Note
This body assembly is intended for use with compatible OHC100A Series overhead concealed door closer systems. Verify the existing closer size before selecting OHC100 (sizes 3–5) or OHC101 (sizes 1–3). Refer to Falcon's installation instructions and the Falcon Door Controls Catalog for full integration guidance.
Manufacturer Resources
Falcon Door Controls catalog
Product Specs
- Subcategory:
- Concealed Closers
- Series:
- OHC100A Series
- ADA Compliant:
- Yes
- BAA Qualified:
- Yes
- Product Group:
- Door Controls
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Body Kits
- Commercial/Residential:
- Commercial
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Door Hand Direction:
- Non-Handed
- Product Category:
- Door Controls
- Product Substrate:
- Cast Iron
- Department:
- Door Hardware
Falcon OHC100-S090 DKBRZ – Frequently Asked Questions
1) What door sizes work with the Falcon OHC100A overhead concealed closer?
The OHC100A handles standard commercial doors up to 36 inches wide. Maximum door weight capacity varies by model grade. Verify your specific door dimensions and weight against the manufacturer's template before installation.
2) Does this closer work on both right and left-hand doors?
Yes, the OHC100A is field reversible for left-hand or right-hand installations. The same closer body accommodates both configurations with proper arm positioning during installation.
3) What finishes are available for this overhead concealed closer?
Standard finishes include aluminum and dark bronze. Some models offer painted options. The concealed design minimizes visible hardware once installed in the door frame.
4) What power size rating does the OHC100A provide?
The OHC100A typically provides size 1-4 power ratings depending on model configuration. Check the specific model number for exact power grade. Higher power ratings handle heavier doors and wind loads.
5) Does this closer meet ADA accessibility requirements?
When properly adjusted, the OHC100A can meet ADA opening force requirements. Adjust the closing speed and sweep controls to achieve compliant opening force levels. Verify local code requirements for your installation.
6) What installation template and hardware comes with this closer?
The body-only package includes the closer mechanism and basic mounting hardware. Installation template and arm assembly may be sold separately. Check product specifications to confirm what's included with your specific model.
7) How do you adjust closing speed on the Falcon OHC100A?
Adjust closing speed using the sweep and latch valves located on the closer body. Turn clockwise to increase speed, counterclockwise to decrease. Make small quarter-turn adjustments and test door operation between changes.
8) Can this closer be used on fire-rated door assemblies?
Many Falcon OHC100A models are listed for use on fire-rated assemblies. Verify the closer carries proper UL listing for your fire rating requirement. Check with the door manufacturer for approved closer compatibility.
9) What's the difference between OHC100A and other Falcon overhead closers?
The OHC100A offers concealed installation within the door frame. Other door closers may be surface-mounted or have different power ratings. Compare specifications to match your project needs.
10) How do you maintain an overhead concealed closer?
Check door operation monthly and adjust valves as needed. Keep pivot points clean and lubricated. Annual professional inspection ensures proper closing force and ADA compliance. Replace hydraulic fluid if performance degrades.
11) What door frame preparations are needed for installation?
The door frame requires precise mortising to house the closer body. Follow the manufacturer's template exactly for proper fit and operation. Frame modifications should be completed during door preparation, not in the field.
12) Will this closer work in high-wind or weather-exposed locations?
The OHC100A handles moderate wind loads when properly sized. For severe weather exposure, verify the power rating meets wind load calculations. Consider hold-open options for high-traffic areas during favorable weather.
