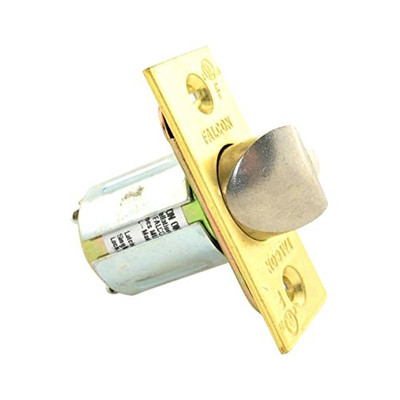

Falcon Q330-203 W Series Square Corner Deadlatch Faceplate with 2-3/8" Backset
Professional Replacement Faceplate for W Series Deadlatch Systems
The Falcon Q330-203 W Series deadlatch faceplate features precise 1-1/8" by 2-1/4" square corner dimensions with 2-3/8" backset configuration for commercial door hardware applications. Constructed with 630 satin stainless steel finish, this replacement component ensures reliable integration with existing W Series deadlatch mechanisms while maintaining consistent aesthetic appearance across door hardware installations.
Professional Features & Benefits
- Precise Dimensions: 1-1/8" by 2-1/4" square corner faceplate designed for exact fit with W Series deadlatch systems.
- Standard Backset Configuration: 2-3/8" backset spacing provides compatibility with common commercial door preparations.
- Durable Finish: 630 satin stainless steel construction offers corrosion resistance and professional appearance for commercial applications.
- Square Corner Design: Clean geometric profile integrates seamlessly with modern commercial door hardware aesthetics.
- W Series Compatibility: Engineered specifically for Falcon W Series deadlatch mechanisms ensuring proper fit and function.
- Commercial-Grade Construction: Designed for demanding commercial applications where reliable hardware performance is essential.
Technical Specifications
- Commercial/Residential: Commercial
- Department: Door Hardware
- Parts and Accessories Type: Replacement Parts
- Product Attribute: Parts and Accessories
- Product Category: Parts and Accessories
- Product Group: Parts and Accessories
- Product Subgroup: Cylinders
- Product Type: Deadlatch
- Series: Q330 Series
- Subcategory: Cylinder
Installation & Operation
This replacement faceplate is designed for use with compatible Falcon W Series deadlatch mechanisms. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Retail Establishments
- Industrial and Warehouse Facilities
- Multi-Tenant Residential Properties
- Government and Municipal Buildings
Why Choose Falcon Quality?
Falcon Q330 Series replacement components deliver professional-grade reliability with precision-engineered dimensions and durable 630 satin stainless steel construction. Designed specifically for commercial applications where consistent hardware performance and aesthetic continuity are essential for long-term facility management.
Manufacturer Resources
Falcon locks Catalog
Product Specs
- Series:
- Q330 Series
- Product Group:
- Parts and Accessories
- Product Subgroup:
- Cylinders
- Product Type:
- Deadlatch
- Subcategory:
- Cylinder
- Commercial/Residential:
- Commercial
- Parts and Accessories Type:
- Replacement Parts
- Product Attribute:
- Parts and Accessories
- Product Category:
- Parts and Accessories
- Department:
- Door Hardware
Falcon Q330-203-626 – Frequently Asked Questions
1) Will the Falcon Q330-203 faceplate fit my existing deadlatch prep, or do I need to re-mortise the door edge?
The Q330-203 is a square corner faceplate measuring 1-1/8 by 2-1/4 inches, so it drops into an edge prep already cut for that size and corner style. If the existing plate on the door has radius (round) corners, the mortise won't match and you'd be filling and recutting. Check the plate that's coming off before ordering: square corner to square corner, same 1-1/8 x 2-1/4 footprint, and it's a straight swap.
2) Does the Falcon Q330-203 work on a 2-3/4 inch backset door, or only 2-3/8?
Only 2-3/8 inch. The Q330-203 is built to the 2-3/8 backset configuration, which is the shorter of the two standard backsets, and the cylinder hole in the door is bored to whichever one the original latch used. If your doors are bored at 2-3/4, this part is the wrong one for that opening.
3) Can I put a Falcon Q330-203 faceplate on a deadlatch from another brand?
No. The Q330-203 is made for Falcon W Series deadlatch mechanisms, and the plate has to line up with that latch case's screw pattern and bolt opening. For a different brand you need that maker's own plate, or the complete latch. ZenSupply also carries the CENTRIOS CE-238 deadlatch, which is a full deadlatch for the CEB100 Series rather than a faceplate, if you're replacing the whole unit instead.
4) What finishes does the Falcon Q330-203 deadlatch faceplate come in?
Four: 606 satin brass, 622 matte black, 626 satin chrome, and 630 satin stainless steel. For a property manager trying to keep a building consistent, 630 satin stainless is the usual commercial standard and the one most likely to match the other plates on the openings; 626 satin chrome is the brighter chrome-look option and is not interchangeable visually with 630.
5) I'm replacing damaged faceplates across a building. Can I mix finishes on the same order?
Yes. The Q330-203 faceplate is ordered by finish, so you can take 630 satin stainless for the back-of-house and exterior openings and 626 satin chrome or 606 satin brass where the front-of-house hardware calls for it, all in one go. All four finishes are the same 1-1/8 x 2-1/4 square corner plate at 2-3/8 backset, so the door prep does not change with the finish.
6) Is a stainless faceplate like the Falcon Q330-203 OK for an exterior storefront or a wet entry?
The 630 satin stainless steel version gives corrosion resistance and is the one to specify for exterior doors, entries that get wet, or wash-down areas. The brass and black finishes are cosmetic choices for interior openings where matching the rest of the hardware matters more.
7) Is the Falcon Q330-203 rated for commercial traffic or is it a residential part?
Commercial. The Q330 Series faceplate is a commercial-duty replacement part, used in office buildings, schools, healthcare, retail, industrial facilities, multi-tenant residential, and government buildings. It's the part you standardize on across a facility, not a light residential plate.
