Falcon SC70A-3077PA Regular Arm with PA Bracket for SC70A Series Door Closers

Professional Door Closer Arm Assembly

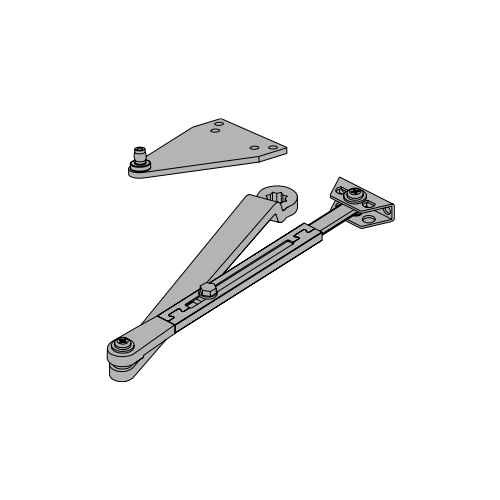

The Falcon SC70A-3077PA Regular Arm with PA Bracket (RWPA) is designed specifically for SC70A Series Door Closers, providing versatile mounting options for commercial door control applications. This non-handed arm features an adjustable forearm assembly to accommodate a range of doors and frame reveal conditions, with mounting capability for hinge side, top jamb, or parallel arm configurations. The included PA shoe enables installation in a parallel arm configuration for enhanced flexibility.

Professional Features & Benefits

  • Universal Compatibility: Designed specifically for SC70A Series Door Closers ensuring perfect fit and optimal performance.
  • Non-Handed Design: Universal arm configuration eliminates the need for separate left and right-hand versions, simplifying inventory and installation.
  • Adjustable Forearm Assembly: Accommodates various door and frame reveal conditions for flexible installation in diverse applications.
  • Multiple Mounting Options: Supports hinge side, top jamb, or parallel arm mounting configurations to meet specific architectural requirements.
  • PA Shoe Included: Complete assembly includes PA shoe for parallel arm installation capability, providing maximum installation versatility.
  • Commercial-Grade Construction: Built to withstand demanding commercial applications with reliable long-term performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Replacement Parts
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Door Closer Arms
  • Series: SC70A Series

Installation & Operation

This replacement arm assembly is designed for use with compatible SC70A Series Door Closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon door closer components deliver professional-grade reliability with precision-engineered construction designed for demanding commercial applications. The SC70A-3077PA arm assembly provides the versatility and durability needed for long-term performance in high-traffic environments where dependable door control is essential.

Manufacturer Resources

Falcon Closers Catalog

Product Specs

Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Door Closer Arms
Series:
SC70A Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Door Controls
Department:
Door Hardware

Falcon SC70A-3077/PA AL – Frequently Asked Questions

1) Can the SC70A-3077PA be mounted parallel arm, or do I need a separate shoe?
The PA shoe comes with it. The 3077PA assembly covers hinge (pull) side, top jamb, and parallel arm mounting, and the parallel arm bracket is included in the box, so you don't order the shoe separately. That's the difference between this and a plain regular arm.
2) Is the Falcon SC70A-3077PA arm a stop arm? Will it stop the door against a wall?
It isn't. The 3077PA carries no built-in stop, so you still need a wall or floor stop to limit the swing. Arms that stop the door mechanically are a different part: Sargent's 25-CPS parallel arm for 351 and 281 closers carries a compression stop, as does the 25-CPSH hold-open version. Don't rely on the 3077PA to take the abuse of a door being thrown open.
3) What is the LCN equivalent of the Falcon SC70A-3077PA regular arm with PA bracket?
The LCN 1260-3077 is a regular arm with parallel arm bracket assembly, the same arm-plus-PA-bracket combination as the Falcon SC70A-3077PA. The difference is the closer body each one belongs to: the Falcon arm is built for SC70A Series closers, and the LCN 1260-3077 is a 1260 Series component. Match the arm to the closer body already on the door rather than to the look of the arm.
4) I need the door to stay open. Is there a hold open version of the Falcon SC70A-3077PA?
The SC70A-3077PA is a regular arm with PA bracket; it does not hold the door open. For a hold open arm, the LCN 1250-3049/PA is a hold open arm assembly with parallel arm shoe and a non-handed design with adjustable hold open, for 1250 Series closers, and the LCN 4010-3049 is a hold open arm with an adjustable elbow function. On Sargent 351 and 281 closers, the 25-H is a hold-open arm for standard and top jamb mount and the 25-CPSH is a hold-open parallel arm with compression stop. Each of those belongs to its own closer body, so pick by the closer already installed.
5) My closer is a Sargent 351. Will the Falcon SC70A-3077PA arm fit it?
No. The SC70A-3077PA is made for Falcon SC70A Series closers. For a Sargent 351 or 281, the arm to look at is the Sargent 25 family: the 25-H hold-open arm for standard and top jamb mount, the 25-CPS parallel arm with compression stop, or the 25-CPSH, which combines the compression stop with hold-open. All three are heavy duty Grade 1.
6) The door swings into a wall and I need the arm to stop it. What should I use instead of the SC70A-3077PA?
The SC70A-3077PA is a regular arm with PA bracket and an adjustable forearm; stopping the swing is not part of what it does. Where the opening needs the arm to take the stop, Sargent offers the 25-CPS, a heavy duty parallel arm with compression stop for 351 and 281 closers, and the 25-CPSH, the same compression stop arm with hold-open added. Both are Grade 1 heavy duty. They mount to Sargent closer bodies, so this is a change of closer as well as arm unless a Sargent closer is already on the door.
7) Is the LCN 4000T-3077T the same thing as the Falcon SC70A-3077PA?
The part numbers look close but the parts are not interchangeable. The LCN 4000T-3077T is a standard arm replacement component for 4000T Series closers. The Falcon SC70A-3077PA is a regular arm that ships with the PA shoe, so it can be set up hinge side, top jamb, or parallel arm, and it is built for SC70A Series closers. Order by the closer series stamped on the body, not by the 3077 in the number.
8) My door has a deep frame reveal. Will this Falcon closer arm still reach?
The forearm on the 3077PA is adjustable, which is what lets it take up a range of door and frame reveal conditions. You set the forearm length at install to suit the reveal rather than ordering a reveal-specific part.
9) Should I buy just the arm or a whole new door closer?
If the SC70A closer body still controls the door and doesn't leak, replacing the arm is the cheaper repair, and the 3077PA is sold as a replacement part for exactly that. If the body is failing, you're buying a complete closer instead, such as the Sargent 1431-CPS TB EN, a Grade 1 heavy duty surface closer with a parallel arm and compression stop.
10) Is the LCN 1260-3077 the same arm as the Falcon SC70A-3077PA?
Similar part, different closer. The LCN 1260-3077 is also a regular arm with a parallel arm bracket, but it's for LCN 1260 Series closers, not Falcon SC70A. The 3077 number is a family convention across brands, so the digits matching doesn't mean the arm interchanges. Buy by the closer body you have on the door.
11) Do I have to order a left hand and a right hand version of these closer arms?
Not for the Falcon SC70A-3077PA. It is non-handed, so one part number covers both swings, and its adjustable forearm takes up a range of door and frame reveal conditions. The LCN 1250-3049/PA hold open arm assembly is likewise non-handed. For property managers stocking spares across a building, a non-handed arm means one shelf item instead of two.
12) I am pricing a Grade 1 heavy duty closer for a high traffic opening, not just an arm. What are my options?
The SC70A-3077PA is a replacement arm assembly, so it is the right buy only when the closer body on the door is sound and the arm is what failed. If the whole unit is being replaced, Sargent lists complete closers: the 1431-CPS TB EN is a heavy duty surface door closer with parallel arm and compression stop, Grade 1, and the 25-CPS is a heavy duty Grade 1 parallel arm closer with compression stop compatible with 351 and 281. Facilities standardizing on one Grade 1 closer across a building usually specify at the closer level rather than the arm level.
13) What is the difference between the LCN 1250-3049/PA and the LCN 4010-3049 hold open arms?
Both are hold open arms, but they serve different closer bodies and arrive with different content. The 1250-3049/PA is a 1250 Series hold open arm assembly that includes the parallel arm shoe and is non-handed with adjustable hold open. The 4010-3049 is a 4020 Series hold open arm with an adjustable elbow function. Neither fits a Falcon SC70A Series closer, which takes the SC70A-3077PA.
14) Is the Falcon SC70A-3077PA arm rated for commercial traffic, or is it a residential part?
Commercial. The SC70A-3077PA is catalogued for commercial door control work, which is where these closers land: office buildings, schools, healthcare, retail, warehouses, and multi-tenant residential corridors.
15) I need the arm to match the dark bronze hardware already on our doors. Which arms come in a finish other than aluminum?
The Falcon SC70A-3077PA is offered in 689 aluminum, 696 brass, 695 dark bronze, and 622 matte black, so 695 dark bronze will line up with existing bronze hardware. Choose the finish at the time of order; the arm itself is the same part across all four.
