Falcon SC90A-18PA Push Side Mounting Plate for SC90A Series Door Closers

Professional Door Closer Installation Accessory

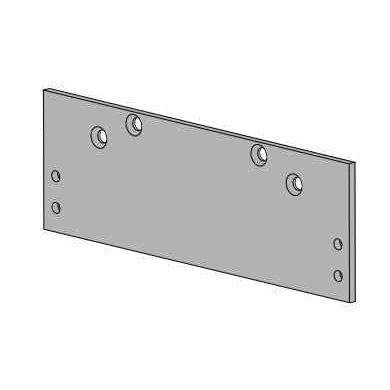

The Falcon SC90A-18PA mounting plate is specifically designed for push side installation of SC90A Series door closers in parallel arm configurations. This essential mounting accessory accommodates installations where the top rail measures less than 4-5/8" (117 mm) from the stop, while requiring a minimum 2-1/8" (54mm) top rail clearance for proper installation. Engineered for commercial applications, this mounting plate ensures secure and reliable door closer mounting in challenging architectural configurations.

Professional Features & Benefits

  • Precise Dimensional Requirements: Designed for top rails less than 4-5/8" (117 mm) from stop with minimum 2-1/8" (54mm) clearance for optimal parallel arm mounting.
  • SC90A Series Compatibility: Specifically engineered for use with Falcon SC90A Series door closers for guaranteed fit and performance.
  • Push Side Configuration: Optimized for push side mounting applications where standard mounting is not feasible due to architectural constraints.
  • Parallel Arm Installation: Enables proper parallel arm door closer installation in space-restricted applications.
  • Commercial-Grade Construction: Built to withstand the demands of high-traffic commercial door applications.
  • Professional Installation Solution: Provides contractors with the necessary hardware for challenging door closer installations.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Parts and Accessories Type: Installation Accessories
  • Product Attribute: Parts and Accessories
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Parts and Accessories
  • Product Type: Installation Accessories
  • Series: SC90A Series

Installation & Operation

This mounting plate is designed for use with compatible Falcon SC90A Series door closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Falcon Quality?

Falcon door closer mounting accessories deliver professional-grade reliability with precision-engineered dimensions for demanding commercial applications. The SC90A-18PA mounting plate provides contractors with the specialized hardware needed to overcome architectural challenges while maintaining proper door closer function. Engineered for demanding commercial applications where dependable performance is essential.

Manufacturer Resources

Falcon Closers Catalog

Product Specs

Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Commercial/Residential:
Commercial
Product Type:
Installation Accessories
Series:
SC90A Series
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Category:
Door Controls
Department:
Door Hardware

Falcon SC90A-18PA AL – Frequently Asked Questions

1) When do I need the Falcon SC90A-18PA mounting plate instead of mounting the closer directly to the door?
You need the 18PA plate when the top rail is less than 4-5/8 inches (117 mm) from the stop and there isn't enough flat rail to land a parallel arm closer body on the push side. The plate spans the narrow rail and gives the SC90A closer a solid mounting surface. If your top rail is 4-5/8 inches or wider from the stop, you can mount the closer directly and skip the plate.
2) What is the minimum top rail clearance needed for the SC90A-18PA plate?
2-1/8 inches (54 mm) of top rail clearance is the minimum. Below that the plate has nowhere to sit and a parallel arm push side installation is not possible on that door, so you'd look at a regular arm pull side mount or a top jamb mount instead.
3) Will the SC90A-18PA fit Falcon closers other than the SC90A Series?
It is built for the Falcon SC90A Series only. The hole pattern and footprint are matched to that closer body, so it should not be used as a mounting plate for other Falcon closer series or another brand's closer.
4) Does the SC90A-18PA plate work with regular arm or top jamb mounting?
No. It is a push side plate for parallel arm installations only. Regular arm mounting puts the closer body on the pull side of the door and top jamb mounting puts it on the frame, so neither uses this plate.
5) What finishes does the Falcon SC90A-18PA mounting plate come in?
Three: 689 aluminum, 695 dark bronze, and 696 brass. Order the plate in the same finish code as the SC90A closer and arm so the exposed hardware matches across the openings in the building.
6) I'm standardizing closers across a building with mixed door rail sizes. How do I handle the narrow rail openings?
Keep the same SC90A closer on every opening and add an 18PA push side plate only where the top rail measures under 4-5/8 inches from the stop. That way you stock one closer model and one accessory rather than two different closer types, as long as every narrow-rail door still gives you 2-1/8 inches of rail clearance.
7) Is the SC90A-18PA plate a replacement closer part or an accessory I order with a new closer?
It's an installation accessory, not a closer component. The plate ships separately from the SC90A closer, so on a new install you order both, and on a retrofit where a narrow top rail is the problem you can add the plate to a closer you already have.
8) Is this mounting plate suitable for high traffic commercial doors in schools and hospitals?
Yes, the SC90A-18PA is a commercial-grade part, used on office, education, healthcare, retail, industrial, multi-tenant residential, and government openings. It's a mounting bracket, so the door control performance itself comes from the SC90A closer you pair it with.
