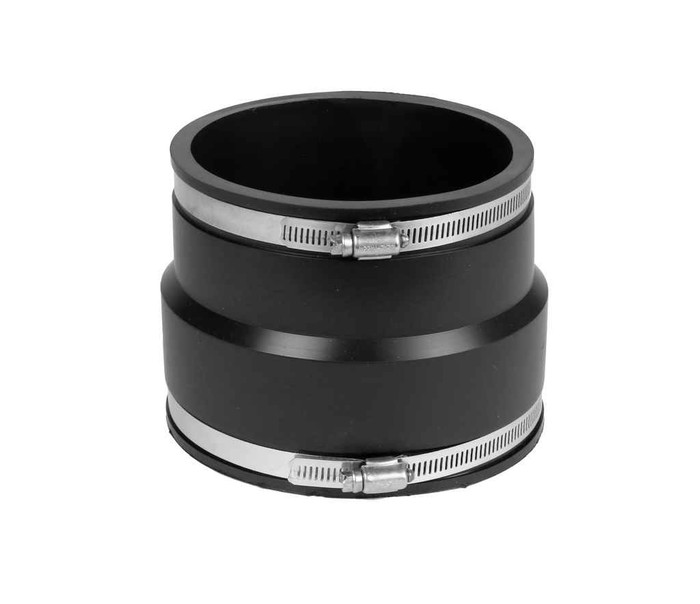

Fernco 1002-55 5-in Clay to CI/PL Flexible PVC Coupling
Manufacturer Resources
Product Specs
- Department:
- Plumbing
- Product Group:
- Plumbing
- Product Subgroup:
- Pipe Fittings
- Product Type:
- Flexible Coupling
Fernco 1002-55 – Frequently Asked Questions
1) What pipe materials does the Fernco 1002-55 coupling connect?
The Fernco 1002-55 is a 5 inch flexible coupling that joins clay pipe to cast iron or plastic pipe. It is the transition fitting you reach for when an old clay lateral has to tie into new PVC or into existing cast iron, since the two materials have different outside diameters and a rigid fitting will not bridge them.
2) Can I use a Fernco 1002-55 to repair a broken section of 5-inch clay sewer line?
Yes, that is the usual job for it. Cut out the damaged clay, drop in your replacement length of PVC or cast iron, and use the 1002-55 at each transition point. The flexible body absorbs the small offsets you get between old clay and new pipe, which is exactly what a rigid hub will not tolerate in a trench repair.
3) Will the Fernco 1002-55 work for a straight clay-to-clay joint?
No. The 1002-55 is sized with two different ends, one for 5 inch clay and one for cast iron or plastic. For a same-material clay to clay repair you want a coupling with matching ends on both sides, otherwise one end will not seal to the pipe OD.
4) Is the Fernco 1002-55 a shielded or unshielded coupling?
It is a flexible PVC coupling in the Fernco 1002 series, the standard clamp-and-sleeve style used for buried, non-pressure drainage work. Where local code calls for a full stainless shear ring around the sleeve, you need a shielded transition coupling instead, not this one.
5) Does the Fernco 1002-55 come with the clamps, or do I buy those separately?
The 1002-55 ships as a complete coupling, sleeve and clamps together. All you need on site is a nut driver or torque wrench for the clamp screws and a clean, square-cut pipe end on both sides.
6) Can the Fernco 1002-55 be used on a pressurized water line?
No. Flexible couplings of this type are for gravity drain, waste and vent piping, not pressure service. Use it on sewer laterals, building drains and storm lines only.
How fast can I get the Fernco 1002-55 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Fernco 1002-55 come with a warranty?
Absolutely. The Fernco 1002-55 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Fernco 1002-55?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
