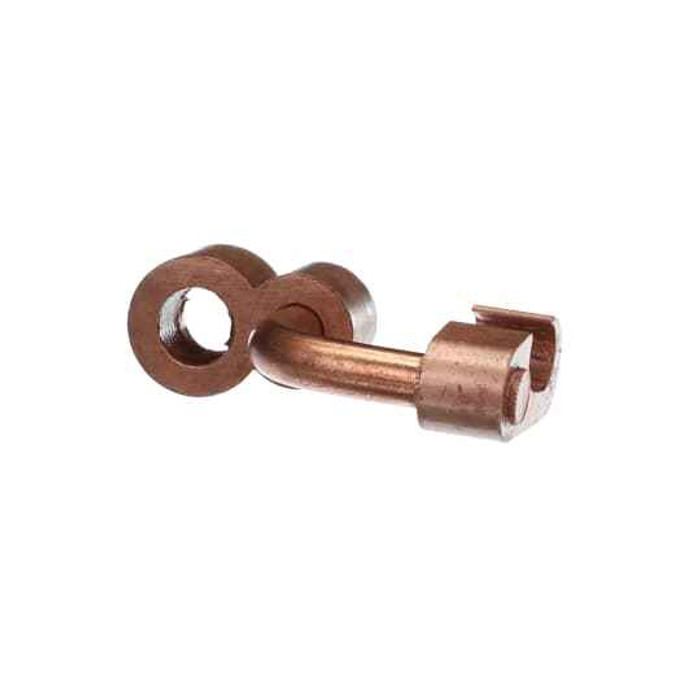

FIG 6TO8, 3/4IN GRD ROD, 2-250 CBL
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- No
- Material Of Conductor:
- Copper
- Product Group:
- Grounding & Bonding
- Product Type:
- E-Z-Ground Compression Grounding
- Selling Unit Of Measure:
- each
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn 54875LR34 – Frequently Asked Questions
1) Is the 54875LR34 a mechanical clamp or a crimp-on connector?
It is a compression (crimp) connector, part of Blackburn's E-Z-Ground compression grounding family. You set it with a hydraulic or battery crimp tool using the 6TO8 die figure, not with a wrench. If you want something you can install with hand tools or remove later for testing, choose a mechanical ground rod clamp instead.
2) What die or figure number do I set the 54875LR34 with?
Figure 6TO8. Crews running mixed rod and cable sizes should keep the figure marking with the connector, since the compression dies are what make the joint code-compliant. Once crimped, the connection is permanent.
3) Is the 54875LR34 copper, and can I use it on a copper-bonded ground rod with copper cable?
The conductor material is copper, so it pairs with copper grounding electrode conductors and copper-bonded steel rods without introducing a dissimilar-metal joint. Do not use it as a substitute for an aluminum-rated connector on aluminum conductor.
4) Is the Blackburn 54875LR34 made in the USA for a Buy American job?
Country of origin is the United States. For federal, municipal, or institutional work with domestic-sourcing language in the spec, that is the detail the submittal package needs.
5) Does the Blackburn 54875LR34 come insulated?
No. It is a bare, uninsulated compression connector for direct-burial or exposed grounding electrode connections. If the application calls for an insulated cover, you would need to add one separately.
6) Is the 54875LR34 sold individually or in a box quantity?
It is sold each, so quantity ordered equals connectors received. Useful to know when you are pricing out one connector per rod across a site of many electrodes.
