Product Specs
- Approved In Combination With Protective Conduit Din En 61386 23:
- N
- Approved In Combination With Protective Conduit Fi:
- N
- Connection:
- Straight
- Connection Type Screw Connection To Housing:
- Thread
- Construction Type:
- External thread
- Etim:
- EC001180 Screw connection for protective metallic hose
- Inner Quantity:
- 10
- Material Housing:
- Zinc die-cast
- Nominal Size In Inch:
- 3/4 inch
- One Piece:
- Y
- Outer Quantity:
- 50
- Product Group:
- Conduit & Fittings
- Revolving Thread:
- N
- Standard:
- CSA 700501
- Surface Protection:
- Untreated
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 23.37 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Fittings
- Product Type:
- Fitting, Insulated Straight Liquidtight
- Product Model:
- Straight
- Product Details:
- Fitting, Insulated Straight Liquidtight
- Product Material:
- Zinc Alloy
Thomas & Betts CI6606-IT – Frequently Asked Questions
1) What size liquidtight conduit does the Thomas & Betts CI6606-IT fitting take?

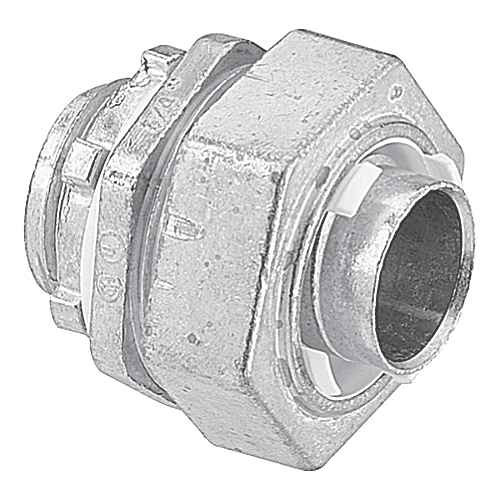

The CI6606-IT is a 3/4 inch trade size straight liquidtight connector. It terminates 3/4 inch liquidtight flexible metal conduit into a box or enclosure through a 3/4 inch knockout.
2) Does this liquidtight connector have an insulated throat so I don't have to add a bushing?
Yes, the CI6606-IT is an insulated straight liquidtight fitting, so the throat is insulated to protect conductor insulation as wire is pulled through. No separate bushing is needed at that termination.
3) How does the CI6606-IT attach to a panel or enclosure, and is it a one piece body?
It mounts by external male thread through the knockout, secured with a locknut on the inside of the enclosure. The body is one piece, so there is nothing to disassemble or lose during install.
4) What is this Thomas & Betts fitting made of, and is it plated or bare?
Zinc die-cast body, zinc alloy material, with an untreated surface, meaning no added plating or coating. That is worth knowing if the run is outdoors or in a corrosive or washdown area, where a plated or coated fitting is usually specified instead.
5) Is the CI6606-IT liquidtight connector certified to any standard?
It is built to CSA 700501. That is the certification carried on the fitting; no other rating is claimed for it.
6) What exactly is the part number I order for a 3/4 inch insulated straight liquidtight connector from Thomas & Betts?
CI6606-IT is the Thomas & Betts manufacturer part number, and it identifies the 3/4 inch insulated straight liquidtight fitting in zinc die-cast. That number is what to quote on a purchase order or match against a spec.
7) Is the thread on this Thomas & Betts fitting a rotating or fixed thread?
The thread is fixed, not revolving. The male hub does not spin independently of the body, so plan the orientation of the conduit before you tighten the locknut, and land the fitting in the enclosure first rather than trying to spin it in after the conduit is committed.
