Blackburn FBS1H070A1-24 FLEX BRAID 9/16H 1/4 X 1.5 X 24 IN

One hole per terminal pad. It's a 1-hole braid connector, so each end lands on a single bolt. If your bus or pad is drilled NEMA two-hole, this isn't the right configuration and you'd want a 2-hole braid instead.

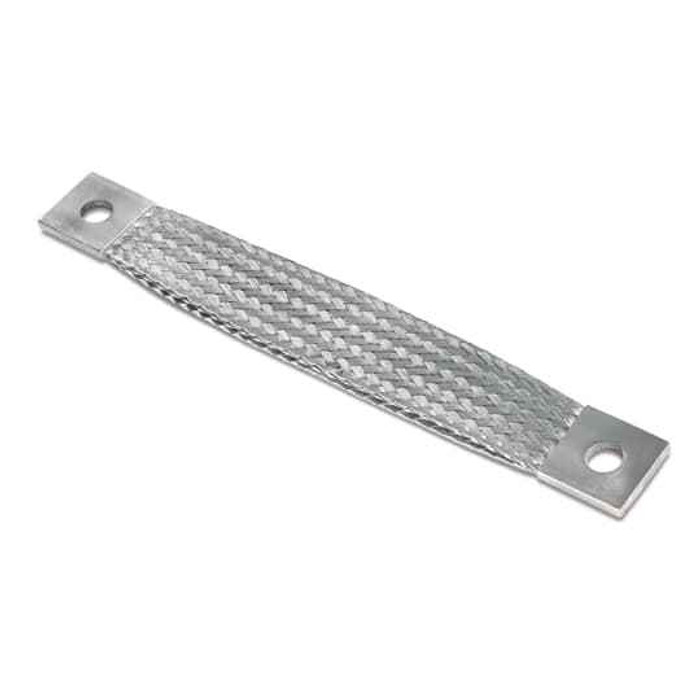

It's a flat, flexible tin-plated copper braid connector used to make a current-carrying connection between two points that move relative to each other, or where rigid bus would transmit vibration or thermal expansion. Typical spots are switchgear, disconnect switches, transformer bushings, and grounding jumpers. The braid is 24 inches long with a single bolt hole at each pad.

The conductor is tin-plated copper, and the tin plating is what gives it corrosion resistance in humid, outdoor, or industrial atmospheres compared with bare copper. It also keeps the contact surface from oxidizing where it bolts to aluminum or plated bus, which is the usual reason braid connections heat up over time.

Braid is the answer when the two connection points move. Solid bar transmits vibration, thermal growth, and switch operating movement straight into the bolted joint and eventually cracks it or loosens the hardware. This one is a flexible, flat braid, so it absorbs that motion while still carrying current. Where nothing moves and you need mechanical rigidity, a rigid bus bar is the better choice.

Yes. The FBS1H070A1-24 is the braid only, with a drilled pad at each end. The bolt, flat washers, Belleville washer, and nut for each landing are separate, and for a bolted power connection you'll also want a joint compound rated for the metals you're joining.

24 inches overall. On a moving connection that length is deliberate: install it with slack so the braid flexes rather than pulling on the pads. Pulling a braid taut between two points defeats the reason for using one and puts strain on the bolted joint.

Sold individually, one braid per unit, and it is manufactured in the United States. If you're making up a pair of connections you need two.
