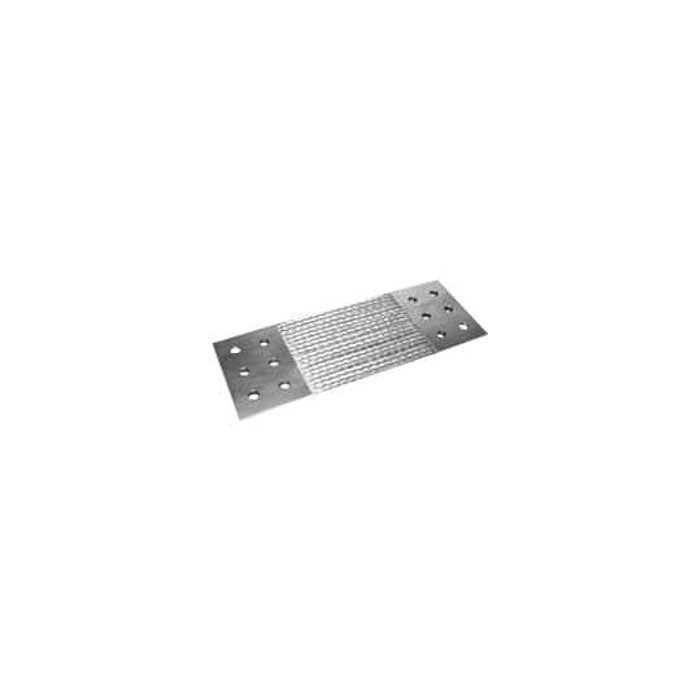

FLEX BRAID ASSEMBLY
Manufacturer Resources
Product Specs
- Cable Length:
- 1067 mm
- Conductor Category:
- Flexible
- Conductor Shape:
- Flat
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Tin-Plated Copper
- Product Group:
- Wire & Cable Management
- Product Type:
- Large Transformer Link Connector - 6-Hole
- Selling Unit Of Measure:
- each
- Standards:
- IEEE / ANSI C37, 34
- Type2:
- Flexible braid
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn LTL400D31067 – Frequently Asked Questions
1) How many bolt holes are in the pads on this Blackburn transformer link?
It is a 6-hole large transformer link connector, so each terminal pad is drilled for a six-bolt pattern. Match that to the bushing pad and bus drilling on your transformer before ordering; a 2-hole or 4-hole pad will not line up.
2) What is the conductor made of, and will it hold up in an outdoor substation?
The braid is tin-plated copper. Tin plating over copper is the standard finish for substation flexible links because it resists oxidation at the bolted interface and keeps contact resistance stable over time.
3) Why use a flexible braid link instead of a rigid bus connection at a transformer bushing?
A flexible flat braid absorbs thermal expansion, vibration and slight misalignment between the transformer bushing and the bus, so the bushing porcelain is not loaded in bending. This Blackburn assembly is a flexible, flat-shape conductor for exactly that duty. If the two pads are fixed, aligned and never move, a rigid bus bar or a solid link is the cheaper choice; anywhere the equipment moves or settles, use the braid.
4) Is this Blackburn braid assembly made in the USA, and is it sold individually or in pairs?
Country of origin is the United States, and it is sold each. A three-phase transformer connection needs one per phase, so order three for a typical set.
5) What part number do I give the distributor for this Blackburn flex braid?
Order Blackburn LTL400D31067. That is the manufacturer part number for the 1067 mm six-hole flexible braid transformer link assembly.
