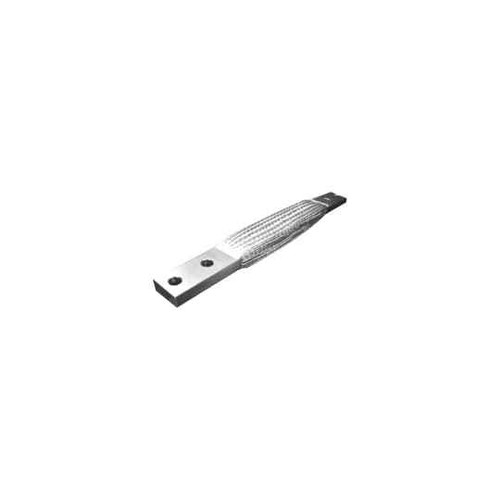

FLEX BRAID TNCU 2000A 2H 610MM
Manufacturer Resources
Product Specs
- Cable Length:
- 610 mm
- Conductor Category:
- Flexible
- Conductor Shape:
- Flat
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Tin-Plated Copper
- Product Group:
- Wire & Cable Management
- Product Type:
- Standard Flexible Braid Connector - 2-Hole
- Selling Unit Of Measure:
- each
- Standards:
- IEEE/ANSI C37.34
- Type2:
- Flexible braid
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn STB200A1610 – Frequently Asked Questions
1) How many bolt holes does the Blackburn STB200A1610 braid have on each pad?
It is a two-hole terminal braid, so each flat end pad drills for two bolts rather than one. Two-hole pads resist rotation under fault current and vibration, which is why they are the usual call on switchgear and substation bus work. If your existing landing pad is drilled for a single bolt, this braid will not land on it without re-drilling.
2) Is the STB200A1610 braid copper or aluminum, and will it corrode outdoors?
The conductor is tin-plated copper. The tin plating is what lets it land on copper or aluminum pads and stand up in substation and outdoor switchgear environments without the surface oxidation you get from bare copper braid. Clean the pad and use an appropriate joint compound on aluminum landings as your practice requires.
3) Why use a flexible braid connector instead of a solid bus bar or rigid link?
A braid absorbs the movement a rigid bar cannot. Between two bolted pads that shift from thermal expansion, equipment vibration, or seismic motion, a flexible flat braid takes the strain instead of transferring it into the terminals. The STB200A1610 is a flexible flat conductor for exactly that duty. Where both ends are fixed and nothing moves, a rigid bus link is the simpler connection.
4) What exactly am I ordering with Blackburn part STB200A1610, and does it come with bolt hardware?
Part number STB200A1610 is a single Blackburn tin-plated copper flexible braid connector, flat profile, two-hole pads, 610 mm long, sold each. It is the braid itself. Bolts, nuts, washers, and Belleville hardware for the pad connection are ordered separately to match your pad drilling and torque spec.
