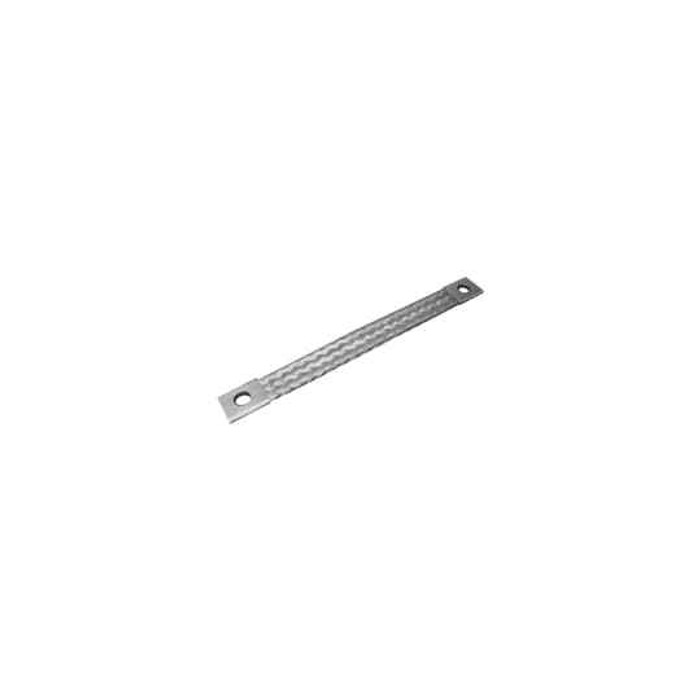

FLEX BRAID TNCU 700A 1H 38.1X610MM
Manufacturer Resources
Product Specs
- Cable Length:
- 610 mm
- Conductor Category:
- Flexible
- Conductor Shape:
- Flat
- Country Of Origin:
- United States (US)
- Material Of Conductor:
- Tin-Plated Copper
- Product Group:
- Wire & Cable Management
- Product Type:
- Standard Flexible Braid Connector - 1-Hole
- Selling Unit Of Measure:
- each
- Standards:
- IEEE / ANSI C37, 34
- Type2:
- Flexible braid
- Department:
- Electrical
- Product Subgroup:
- Connectors
Blackburn SWA070A3610 – Frequently Asked Questions
1) What is the Blackburn SWA070A3610 flexible braid connector rated for, and where is it used?
The SWA070A3610 is a 700A flexible braid connector with a single-hole pad on each end, built as a flat tin-plated copper braid. Flexible braids like this one are used where a bus or switchgear connection has to carry high current while tolerating movement, vibration, or thermal expansion between two rigid conductors. It is built to IEEE / ANSI C37, 34.
2) Will a 1-hole braid connector work on a two-hole NEMA bus pad?
No. The SWA070A3610 has a single bolt hole per pad, so it lands on a single-bolt connection. If your bus or equipment pad is drilled two-hole NEMA spacing, a single-hole pad only catches one of the two bolts and will not give you the joint the drawing calls for; order the 2-hole version of the braid instead.
3) Is the SWA070A3610 braid tinned, and does that matter for aluminum bus?
The conductor is tin-plated copper. The plating is what lets a copper braid be bolted to aluminum bus or aluminum pads without bare copper-to-aluminum contact, and it slows oxidation on the pad faces in damp or industrial air. It also means you are not limited to copper bus on either end.
4) Can I use a flexible braid instead of a solid bus link or a flexible cable jumper?
A flat flexible braid is the right choice when the two ends move relative to each other, from vibration, seismic movement, or thermal growth in a bus run. A rigid bus link transfers that stress straight into the bolted joint. Round flexible cable bends, but a flat braid gives you a broad flat pad face that mates directly to bus and a flatter profile in tight compartments. The SWA070A3610 is the flat flexible type, one bolt hole per end, rated 700A.
5) Does the Blackburn SWA070A3610 come with bolts and washers?
It is sold each, as the braid with its two one-hole pads only. Bolt, nut, Belleville or flat washers, and any joint compound are separate items you specify to match your bus hole size and the torque spec for the joint.
6) Is the Blackburn SWA070A3610 made in the USA?
Country of origin is the United States, which is what a government, utility, or federally funded project needs to see for domestic-content sourcing requirements on electrical connectors.
7) What is the exact part number to quote for this 700A flex braid?
Quote Blackburn SWA070A3610. That number covers the 700A single-hole flexible tin-plated copper braid at 38.1 mm by 610 mm, sold each.
