Blackburn LTL250D3304 FLEX CONN 2500AMP 12INCHES_6HOLE

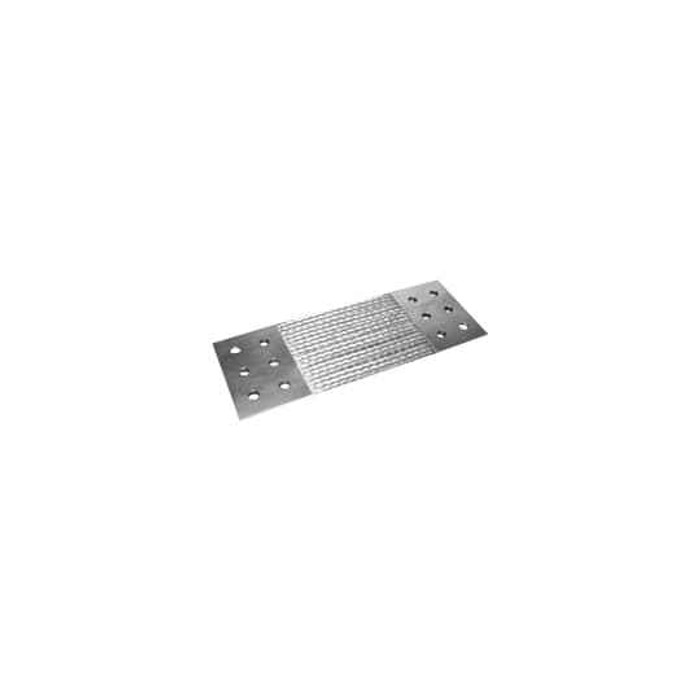

The LTL250D3304 is a 2500 amp flexible transformer link connector with a 12 inch (304 mm) cable length. It is a flat, flexible tin-plated copper braid with a 6-hole pad pattern on the terminations.

Only if your pad is drilled with the matching 6-hole NEMA pattern. The LTL250D3304 terminates in 6-hole pads at both ends, so it mates with transformer or bus pads drilled for six bolts. If your bushing pad is 2-hole or 4-hole, this link will not line up and you need a connector with that hole count.

A flexible braid link absorbs thermal expansion, vibration, and small misalignment between the transformer bushing and the switchgear bus, which rigid bar cannot do without stress on the bushing. The LTL250D3304 is a flexible flat braid conductor for exactly that connection, at 2500 amps over a 12 inch span. Use solid bar only where the two pads are fixed, aligned, and mechanically decoupled some other way.

The braid is tin-plated copper. The tin plating resists oxidation on the contact surface and is the standard finish used where copper terminates to aluminum bus or pads, since bare copper against aluminum sets up galvanic corrosion. Clean the mating pad and use the joint compound your spec calls for.

Yes. 2500 amps is the connector's capacity, so applying it on a lower-rated feeder is conservative and common where the pad drilling matches. What you cannot do is run it above 2500 amps, and the 12 inch length is fixed, so the pad-to-pad span has to suit that.

It is sold each. A three-phase connection needs three links, so order by phase count plus any neutral run, not by the assembly.

Country of origin on the LTL250D3304 is the United States, which is what government, healthcare, and education procurement usually needs documented for domestic-content requirements.
