Flexible Braid
Application
- Flexible copper braids for use in substation and grounding applications.
Notes
- Catalog number is shown in 12 inch length. Standard lengths offered are 6, 12, 18, 24, 30 and 36 inches (end to end). Change the 12 to the desired length.
- The suffix -1 if present after the length indicats 1 bolt hole per ferrule.
Certifications
- UL
- CSA
Features
- Tin-plated copper braids and ferrules for high conductivity and corrosion resistance.
- Certified C22.2 No. 41 Grounding and Bonding Equipment. Listed UL467 and UL486A for Grounding and Bonding Equipment.
Manufacturer Resources
Product Specs
- Bolt Size:
- 16-Jul

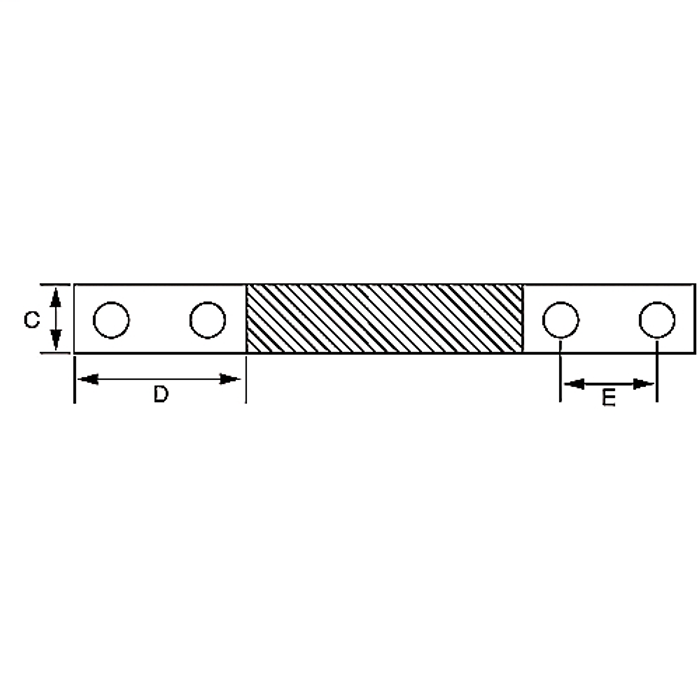

- C Inches :
- 1
- Circular Mil Area:
- 48,000
- D Inches :
- 1.3
- Finish:
- Tin-Plated
- Material:
- Copper
- Outer Package:
- 10
- Package Height:
- 4
- Package Length:
- 14
- Package Width:
- 4
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1 lbs. Each
- Thickness Inches :
- 0.148
- Department:
- Electrical
