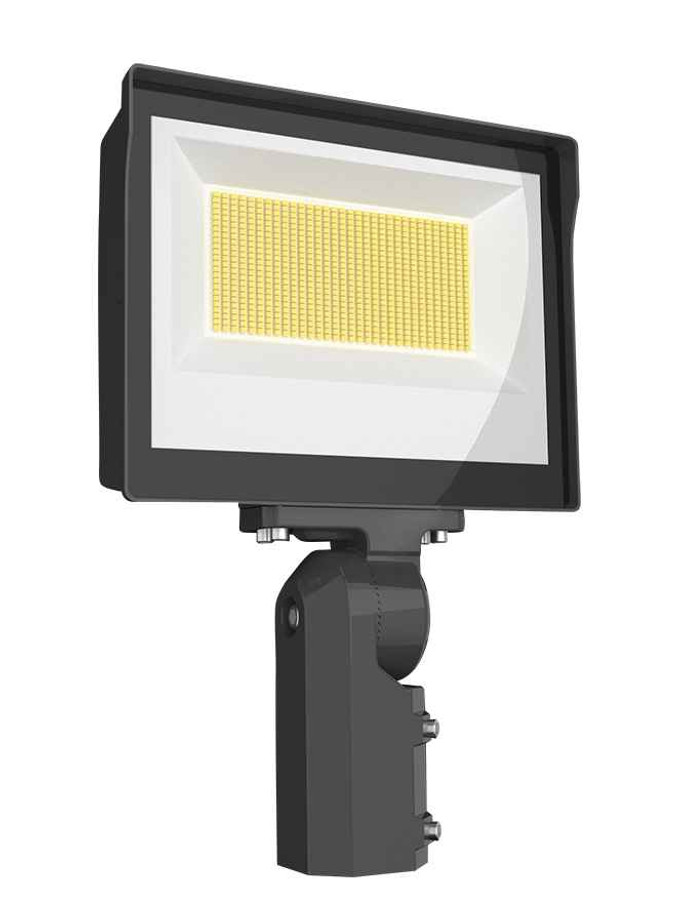

RAB 105W X17 FlexFlood LED 14129 Lumens Field Adjustable Power 50W-105W Selectable CCT 3000K-5000K Trunnion Mount Bronze
Model: RAB-X17XFU105T
RAB
RAB X17 LED Floodlight with Field Adjustable Power
Professional-Grade Variable Power LED Flood Lighting
The RAB X17 LED Floodlight delivers professional-grade variable power flood lighting performance for commercial and industrial outdoor illumination. This bronze-finished LED floodlight features field adjustable power from 50W to 105W and selectable color temperature designed for electrical contractors, lighting professionals, and facility managers, providing the reliable performance and industry-leading quality that lighting professionals demand.
Professional Features & Benefits
Variable Power Performance
- Field Adjustable Power - Variable wattage from 50W to 105W allows customization for specific lighting requirements and energy efficiency optimization
- High Lumen Output - Delivers up to 14,129 lumens with exceptional efficacy rating of 126.1-140.9 lumens per watt for maximum energy efficiency
- Selectable Color Temperature - Field adjustable CCT from 3000K warm white to 5000K daylight for versatile lighting applications
- Constant Current LED Driver - Professional-grade driver ensures consistent light output and extended LED lifespan of 100,000 hours
Energy Efficiency & Compliance
- DLC Premium Listed - DLC ID PS9H9M39 qualifies for maximum utility rebates and energy incentive programs
- Multi-Voltage Operation - Compatible with 120V-277V systems with optimized amperage draw from 0.38A to 0.87A
- Energy Star Performance - Exceeds energy efficiency standards for commercial outdoor lighting applications
Technical Specifications
Power consumption: 50W-105W field adjustable | Light output: 6,304-14,129 lumens | Color temperature: 3000K/4000K/5000K selectable | Voltage: 120V-277V | Dimensions: 18.31" L x 13.98" W x 4.73" H | Weight: 9.31 lbs | Finish: Bronze | Mounting: Slipfitter | Driver: Constant current | Lifespan: 100,000 hours | Certifications: DLC Premium Listed, UL Listed
Installation & Setup
- Mount securely to pole or structure using integrated slipfitter mounting system for professional installation results
- Connect to 120V-277V electrical supply following NEC code requirements for outdoor lighting installations
- Select desired wattage setting (50W, 75W, or 105W) using field adjustable power controls for optimal energy efficiency
- Configure color temperature (3000K, 4000K, or 5000K) based on application requirements and lighting design specifications
- Verify proper electrical connections and test all power settings to ensure reliable operation
- Complete installation documentation including power and CCT settings for maintenance records
Professional Applications
Ideal for:
- Commercial Outdoor Lighting - Parking lots, building facades, and perimeter security lighting with adjustable power for varying illumination needs
- Industrial Facility Illumination - Manufacturing plants, warehouses, and loading docks requiring high-output flood lighting with energy efficiency
- Retail and Hospitality - Shopping centers, hotels, and restaurants needing attractive bronze-finished exterior lighting with selectable color temperature
- Municipal and Infrastructure - Parks, recreational facilities, and public spaces requiring reliable LED flood lighting with utility rebate eligibility
- Architectural Accent Lighting - Building highlighting and landscape illumination with field adjustable power for precise light control
- Security and Safety Lighting - Perimeter lighting, entrance illumination, and surveillance area lighting with high lumen output and long lifespan
- Sports and Recreation Facilities - Tennis courts, basketball courts, and outdoor activity areas requiring bright, uniform illumination
- Transportation Applications - Transit stations, parking structures, and pathway lighting with bronze finish for architectural coordination
X17 LED Technology Advantage
RAB's X17 series incorporates advanced LED technology with field adjustable power and selectable color temperature, providing unmatched versatility for lighting professionals. The constant current driver ensures optimal LED performance while the bronze finish offers superior corrosion resistance and architectural appeal for demanding outdoor environments.
Why Choose RAB Quality?
RAB Lighting's commitment to DLC Premium certification, field adjustable features, and reliable LED performance makes the X17 floodlight the preferred choice for lighting professionals. With 100,000-hour lifespan, energy rebate eligibility, and code-compliant installation, this floodlight delivers the quality and efficiency that electrical contractors and facility managers demand for professional outdoor lighting projects.
Manufacturer Resources
Product Specs
- Amps 120:
- 0.87A
- Amps 208:
- 0.60A
- Amps 240:
- 0.50A
- Amps 277:
- 0.38A
- Amps 347:
- 83-86
- Dlc Id:
- PS9H9M39
- Dlc Type:
- DLC Premium
- Dlc Version:
- 5.1
- Driver Info:
- Constant Current
- Efficacy:
- 126.1-140.9
- Input Watts:
- 50-104.1
- Lamp Hours:
- 100000
- Lamp Info:
- LED
- Lamp Lumens:
- 6304-14129
- Product Group:
- Lighting
- Product Subgroup:
- Flood Lights
- Department:
- Electrical
- Product Finish:
- Bronze
- Product Length:
- 18.31
- Product Watts:
- 105
- Product Height:
- 4.73
- Product Weight:
- 9.31
- Product Width:
- 13.98
