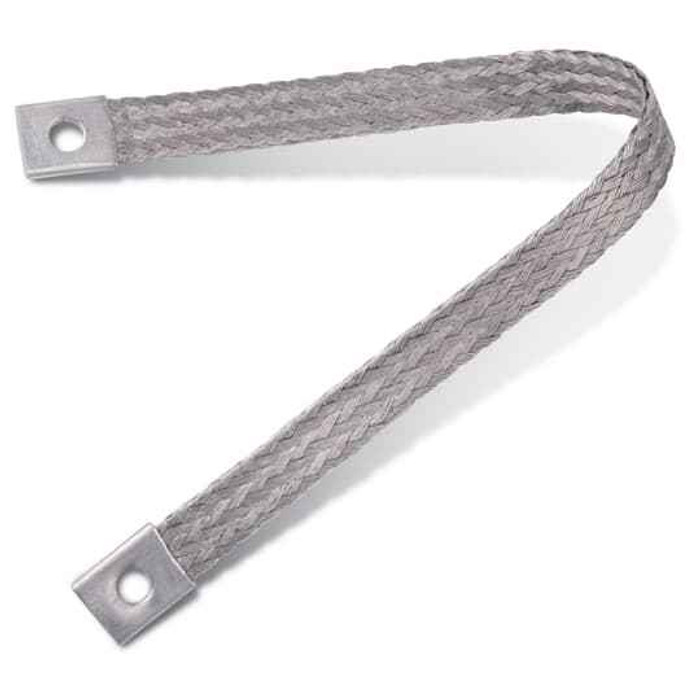

FLWX BRAID 105.6 KCMIL, 6INL 1 HOLE
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- N
- Material Of Conductor:
- Copper
- Product Group:
- Grounding & Bonding
- Product Net Depth Length:
- 6 in
- Product Type:
- Flexible Braid
- Selling Unit Of Measure:
- each
- Standards:
- UL E3060
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn FBXD6-1 – Frequently Asked Questions
1) What size is the Blackburn FBXD6-1 flexible braid and how many bolt holes does it have?
The FBXD6-1 is a 105.6 kcmil flexible copper braid, 6 inches long, with a single bolt hole. One hole means it lands on one terminal pad at that end, so if your connection needs two-hole NEMA spacing for anti-rotation, this is not the right configuration.
2) Will a 6 inch braid span my equipment gap?
Six inches is the overall length of the FBXD6-1, hole to hole spacing included, so it suits short jumps: a panel door to its enclosure, a motor frame to its base, a section-to-section bond in a lineup. If your two landing pads are farther apart than roughly five inches of usable reach, step up to a longer braid rather than stretching this one, since a braid under tension defeats the point of using flexible strap in the first place.
3) Is the Blackburn FBXD6-1 braid bare copper or insulated?
Bare. The conductor is copper and the braid carries no insulation, which is normal for a bonding jumper you want visible for inspection and able to shed heat at the connection.
4) Why use a flexible braid instead of a solid or stranded ground conductor?
A braid is for connections that move. Equipment on vibration isolators, hinged enclosure doors, switchgear covers, generator skids, and expansion joints all flex, and a rigid conductor work-hardens and eventually cracks at the lug. The FBXD6-1 is a flexible copper braid built for that duty, with a bolt hole at each end for a fixed mechanical termination. For a static run between two rigid points, ordinary bare copper conductor is the simpler choice.
5) Is the Blackburn FBXD6-1 made in the USA for Buy American projects?
Country of origin is the United States. That matters on federally funded and institutional work where domestic sourcing is written into the contract, and it is the kind of line a procurement officer needs documented before release.
