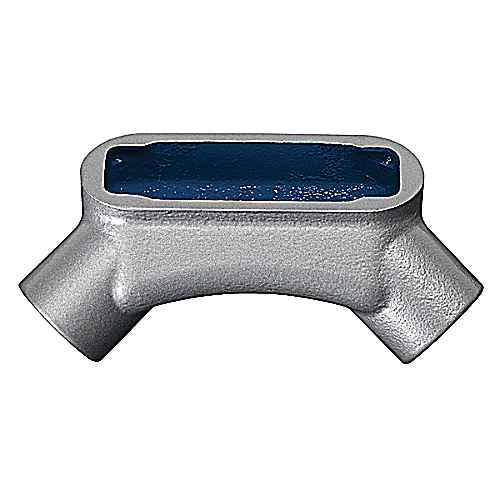

Form 8 Conduit Body
LU68 - spec sheet
Features
- Radius is the same as the bend conduit. Pull wire through the body
- UL Listed as an enclosure - splices are allowed inside the LU
- Rated for 40% wire fill - avoids conduit system de-rating
- Angled cover port enables easier wire pulling and uses standard covers
- 4 to 1 SKU reduction - replaces LL, LR, LB, and C conduit bodies
- BlueKote four-layer protection provides internal and external corrosion resistance
- Uses standard covers
LU68 - spec sheet
Manufacturer Resources
Product Specs
- Brand Name:
- T&B
- Finish:
- Zinc-Plating with Acrylic Coating
- Form:
- 8
- Hub Size:
- 2 Inch
- Igcc:
- 5563 Electrical conduit fitting body
- Inner Dimensions Inches :
- 11.68x9.68x4.75
- Inner Quantity:
- 1
- Material:
- Iron
- Outer Dimensions Inches :
- 16x9.75x6.25
- Outer Quantity:
- 2
- Product Group:
- Electrical
- Standard:
- UL E2969, CSA
- Type:
- Form 8 Conduit Body
- Unspsc:
- 39131708 Electrical conduit fitting body
- Weight Uom:
- 9.96 lbs. Each
- parent sku:
- TB-LU68
