Manufacturer Resources
Spec Sheet
Product Specs
- Colour:
- Other
- Construction Type:
- Device connection box (round/square)
- Cover Attachment:
- Not applicable
- Cubic Capacity:
- 41 Cubic Inches
- Etim:
- EC002601 Box/housing for built-in mounting in the wall/ceiling
- Inlet From The Rear:
- N
- Mounting Method:
- Other
- Mounting Switching Equipment:
- Screwing
- Outer Dimensions Inches:
- 17.25x10x6.37
- Outer Quantity:
- 10
- Pipe Locking:
- N
- Pipe Locking Optional:
- N
- Product Group:
- Boxes & Enclosures
- Sealable:
- N
- Standards:
- 5043
- Unspsc:
- 39121305 Weatherproof boxes
- Weight Uom:
- 147.5 lbs. per 100
- With Screws:
- N
- Department:
- Electrical
- Product Subgroup:
- Box Covers
- Product Type:
- FS Boxes and Covers
- Product Length:
- 109.855mm
- Product Details:
- FS Boxes and Covers
- Product Shape:
- Rectangular
- Product Material:
- Other
- Product Width:
- 165.1mm
- Product Depth:
- 47.625-47.625mm

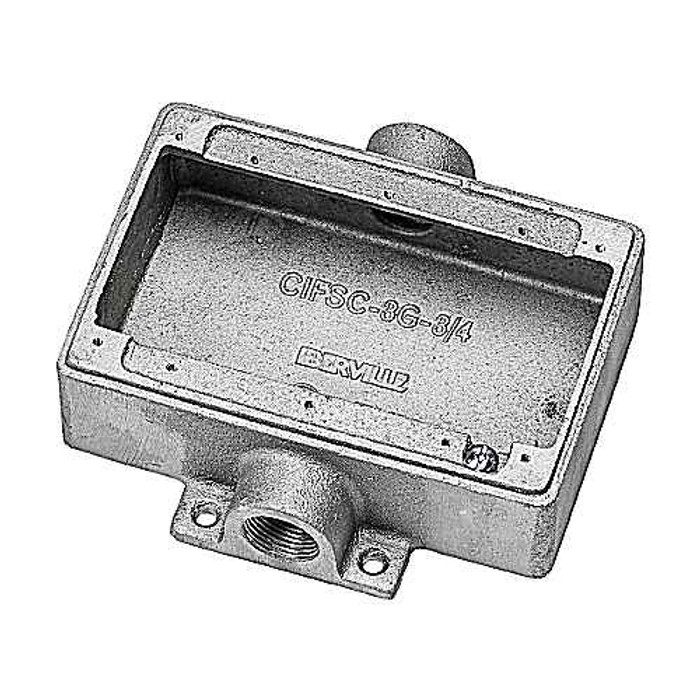

Thomas & Betts CIFSC-3G-3/4 – Frequently Asked Questions
1) How many conductors can I fill in the Thomas & Betts CIFSC-3G-3/4 FS box?
The box offers 41 cubic inches of interior volume, which is the number you use for NEC box fill. Subtract the deductions for devices, grounds, and clamps before counting conductors, and remember a three-gang box carries three device deductions.
2) Is the CIFSC-3G-3/4 a three-gang box and what hub size does it take?
Yes, three-gang, and the 3/4 in the part number is the 3/4 inch trade size conduit hub. Order it when you are running 3/4 inch rigid or IMC to a three-device weatherproof location. Part number is CIFSC-3G-3/4 from Thomas & Betts.
3) Do mounting or cover screws come with the Thomas & Betts CIFSC-3G-3/4?
No screws are supplied with it, so plan on sourcing device and cover screws separately. Devices mount by screwing into the box, and the box has no rear inlet, so all entries come from the hubs on the body.
4) Is this FS box sealable or suitable for a lockable/sealed installation?
It is not a sealable enclosure and it has no pipe-locking provision, so do not spec it where a sealed or utility-sealable housing is required. It is a rectangular device connection box for built-in mounting in a wall or ceiling.
5) How is the CIFSC-3G-3/4 packaged for a job order?
It ships in a standard pack of 10, with a listed shipping weight of 147.5 lbs per 100 pieces. For multi-unit rough-in work on an MRO or contractor order, buy in multiples of 10 to match the carton.
6) Where can I get the manufacturer spec sheet for the CIFSC-3G-3/4?
Thomas & Betts publishes a PDF spec sheet for the CIFSC-3G-3/4, linked in the product details, with the manufacturer's dimensional and construction data for submittal packages.
