Sta-Kon Nylon Fully Insulated ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,128.57
Sta-Kon RA2573 FULLY INS NYL FEM-250 DISC, 22

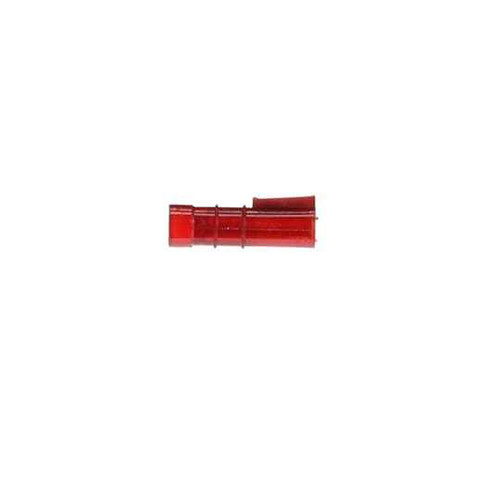

Sta-Kon Nylon Fully Insulated Female Disconnect Terminal 22 AWG 0.250" Tab Red, 1000 Pack

(No reviews yet) Write a Review

Model: RA2573
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,128.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sta-Kon Nylon Fully Insulated Female Disconnect Terminal 22 AWG 0.250" Tab Red

Professional Wire Termination Solution with Full Nylon Insulation

The Sta-Kon Nylon Fully Insulated Female Disconnect Terminal delivers reliable electrical connections for 22 AWG wire applications. Featuring durable brass construction with complete nylon insulation and distinctive red color coding, this professional-grade disconnect terminal ensures secure connections with 0.250" tab compatibility. UL listed for safety compliance, this terminal provides dependable performance in electrical termination applications.

Professional Features & Benefits

  • 22 AWG Wire Compatibility: Precisely engineered for optimal connection with 22 gauge wire for reliable electrical continuity.
  • Brass Construction: Durable brass material provides excellent conductivity and corrosion resistance for long-lasting performance.
  • Full Nylon Insulation: Complete nylon/polyamide insulation ensures electrical safety and prevents accidental contact.
  • 0.250" Tab Design: Standard female disconnect configuration fits securely on quarter-inch male tabs.
  • Red Color Coding: Distinctive red insulation enables quick identification and proper circuit organization.
  • UL Listed Safety: UL E66716 certification ensures compliance with electrical safety standards.
  • USA Manufacturing: Made in the United States for consistent quality and reliable supply chain.

Technical Specifications

  • Color: Red
  • Country Of Origin: United States (US)
  • Department: Electrical
  • Insulation Material: Nylon/Polyamide
  • Material: Brass
  • Product Group: Wire Termination
  • Product Subgroup: Disconnects
  • Product Type: Nylon Fully Insulated Female Disconnect
  • Standards: UL E66716

Installation & Operation

  1. Strip wire to appropriate length according to terminal specifications and ensure clean, undamaged conductor.
  2. Insert stripped wire fully into the terminal barrel and verify proper seating before crimping.
  3. Use appropriate crimping tool to secure wire connection with proper compression force.
  4. Verify crimp integrity by gently tugging the wire to ensure secure mechanical and electrical connection.
  5. Connect female terminal to corresponding 0.250" male tab with firm, complete engagement.
  6. Inspect final connection for proper fit and ensure full insulation coverage for safety compliance.

Professional Applications

  • Electrical Panel Connections
  • Control Circuit Wiring
  • Automotive Electrical Systems
  • Industrial Equipment Terminations
  • HVAC Control Circuits
  • Appliance Wire Connections
  • Electronic Equipment Assembly

Why Choose Sta-Kon Quality?

Sta-Kon delivers proven reliability in electrical connection solutions with UL listed safety compliance and USA manufacturing standards. The combination of durable brass construction, complete nylon insulation, and precise engineering ensures dependable performance in demanding electrical applications. Trust Sta-Kon for professional-grade wire termination components that meet rigorous electrical industry standards.

Manufacturer Resources

Product Specs

Country Of Origin:
United States (US)
Insulation Material:
Nylon/Polyamide
Product Subgroup:
Disconnects
Product Type:
Nylon Fully Insulated Female Disconnect
Standards:
UL E66716
Department:
Electrical
Product Group:
Wire Termination
Product Color:
Red
Product Material:
Brass

Sta-Kon RA2573 – Frequently Asked Questions

1) Will the Sta-Kon RA2573 female disconnect fit a 1/4 inch male tab?
Yes. The RA2573 is a female quick-disconnect sized for 0.250 inch (1/4 inch) male tabs, which is the common tab size on switches, relays, HVAC contactors and blower motors. Push it straight on for full engagement; the nylon body covers the tab shoulder once seated.
2) What wire gauge does the Sta-Kon RA2573 red disconnect crimp onto?
It is a 22 AWG terminal. Red insulation on Sta-Kon disconnects is the small-wire color code, and this one is built for 22 gauge conductor. If you are terminating 16 to 14 AWG you need a blue or yellow barrel instead, not this red one.
3) Is the Sta-Kon RA2573 UL listed for panel and control wiring?
It carries UL file E66716. That covers the terminal itself for electrical safety compliance, which is what an inspector or a spec writer on a control panel or institutional MRO job will be looking for.
4) Is this female disconnect fully insulated or just vinyl sleeved?
Fully insulated, with a nylon/polyamide body rather than a loose vinyl sleeve. The nylon shroud covers the barrel and the tab receptacle, so there is no exposed metal once the terminal is seated on the tab. Nylon also holds up better to heat and crimp pressure than vinyl, which is why it gets specified in control panels and HVAC circuits where terminals sit close together.
5) What is the terminal barrel made of, and will it hold up in a humid or outdoor enclosure?
The conductor barrel is brass, which gives good conductivity and resists corrosion better than plain steel. Combined with the nylon body it is a reasonable choice for HVAC control circuits and equipment enclosures. For direct water exposure you would want a heat-shrink sealed disconnect instead, since this one is not a sealed terminal.
6) Do I need a special crimper for Sta-Kon nylon insulated disconnects?
Use an insulated-terminal crimper matched to the red 22 AWG range, not a bare-terminal or plier-style tool. Strip the wire, bottom it in the barrel before crimping, then tug-test the finished crimp. A bare-metal die will crush the nylon body and leave you with a connection that pulls out.
7) Is the RA2573 made in the USA?
Yes, country of origin is the United States. That matters on government, healthcare and other publicly funded jobs where domestic sourcing is part of the procurement spec.
8) How many terminals come in a pack of the Sta-Kon RA2573?
The RA2573 red 22 AWG female disconnect is supplied as a 1,000 piece pack, which is the normal buy for a panel shop or an MRO crib standardizing on one terminal rather than a job-count handful.
