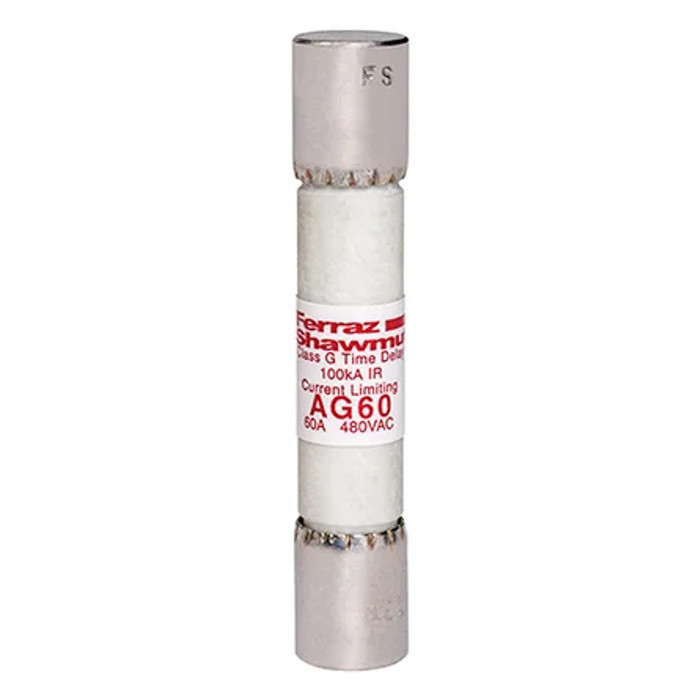

Mersen Class G Time Delay Fuse 480VAC 60A Ferrule Terminal Amp-Trap
Professional Class G overcurrent protection with time delay characteristics
The Mersen Class G Time Delay Fuse delivers reliable overcurrent protection for 480VAC electrical systems with 60A capacity. Featuring time delay characteristics and ferrule terminal connections, this Amp-Trap fuse provides professional-grade circuit protection with 100 kA breaking capacity and tin-plated copper terminals for secure electrical connections.
Professional Features & Benefits
- 60A Current Rating: Provides precise overcurrent protection for medium-duty electrical circuits and equipment loads.
- 480VAC Voltage Rating: Engineered for commercial and industrial three-phase electrical systems with reliable performance.
- 100 kA Breaking Capacity: Delivers exceptional fault current interruption capability for demanding electrical applications.
- Time Delay Characteristics: Allows temporary overloads while providing fast response to dangerous fault conditions.
- Class G Design: Meets stringent performance standards for current-limiting fuse applications with compact form factor.
- Ferrule Terminal Type: Ensures secure mechanical and electrical connections with tin-plated copper construction.
- GMG Body Material: Provides durable insulation and mechanical protection in industrial environments.
Technical Specifications
- Ac Max I R Breaking Capacity I1: 100 kA
- Ac Or Dc: AC
- Ampere Rating: 60 A
- Body Insulating Material: GMG
- Connection Terminal Material: Tin-Plated Copper
- Connection Terminal Type: Ferrule
- Frequency Hz : 50/60 Hz
- Fuse Class: Class G
- Mounting Method: Clip
- Product Length: 2.25 in
- Product Weight: 0.037 lb
- Rated Voltage Ac Ul: 480 V
- Rohs Compliant: Yes
- Speed Characteristic: Time Delay
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial HVAC Systems
- Industrial Motor Control Centers
- Manufacturing Equipment Protection
- Three-Phase Distribution Panels
- Process Control Systems
- Electrical Service Entrance Equipment
- Critical Infrastructure Protection
Why Choose Mersen Quality?
Mersen delivers proven reliability in electrical protection with RoHS compliant construction and professional-grade materials. The compact 2.25-inch length and lightweight 0.037 lb design provide versatile installation options while maintaining robust 100 kA breaking capacity and tin-plated copper terminal durability for long-term performance.
