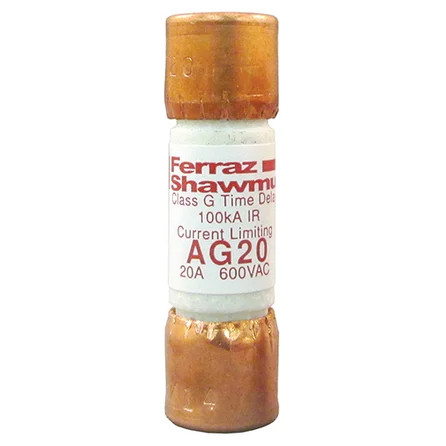

Mersen Class G Time Delay Fuse 600VAC 20A Ferrule Terminal Amp-Trap Protection System

Mersen Class G Time Delay Fuse 600VAC 20A Ferrule Terminal Amp-Trap Protection System

Professional electrical protection with time delay characteristics for motor and inductive load applications

The Mersen Class G Time Delay Fuse delivers reliable overcurrent protection for 600VAC systems with 20A rating and ferrule terminal connections. This Amp-Trap protection system features time delay characteristics ideal for motor starting and inductive loads, with 100 kA breaking capacity and tin-plated copper terminals for dependable electrical connections in professional installations.

Professional Features & Benefits

• 20A Current Rating: Provides precise overcurrent protection for medium-duty electrical circuits and equipment loads.
• 600VAC Voltage Rating: Suitable for commercial and industrial electrical systems operating at standard voltage levels.
• 100 kA Breaking Capacity: Delivers exceptional fault current interruption capability for high-demand electrical environments.
• Time Delay Characteristics: Allows temporary overcurrents during motor starting while providing protection against sustained overloads.
• Class G Design: Meets stringent performance standards for current-limiting fuse applications with compact form factor.
• Ferrule Terminal Type: Ensures secure mechanical and electrical connections with tin-plated copper construction.
• GMG Body Material: Provides reliable insulation and mechanical protection in a lightweight 0.016 lb package.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 100 kA
• Ac Or Dc: AC
• Ampere Rating: 20 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class G
• Mounting Method: Clip
• Product Length: 1.41 in
• Product Weight: 0.016 lb
• Rated Voltage Ac Ul: 600 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Motor Control Centers and Starter Panels
• Industrial Equipment Protection
• Commercial HVAC Systems
• Manufacturing Facility Power Distribution
• Process Control Equipment
• Electrical Panel and Switchgear Applications
• Inductive Load Protection Systems

Why Choose Mersen Quality?

Mersen delivers proven electrical protection solutions with RoHS compliant construction and professional-grade materials. The compact 1.41 in length and clip mounting method provide versatile installation options, while the time delay characteristics and high breaking capacity ensure reliable performance in demanding electrical environments.
