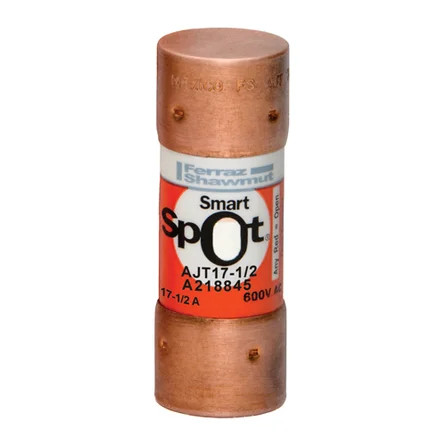

Mersen Class J Time-Delay Fuse 17.5A 600VAC/400VDC with SmartSpot Indication System

Mersen Class J Time-Delay Fuse 17.5A 600VAC/400VDC with SmartSpot Indication System

Professional Circuit Protection with Visual Indication Technology

The Mersen Class J Time-Delay Fuse delivers reliable circuit protection for AC and DC applications with 17.5A current rating and dual voltage capability of 600VAC/400VDC. Featuring SmartSpot indication system for visual fuse status monitoring, this professional-grade fuse incorporates ferrule terminals with tin-plated copper construction and GMG body insulating material for dependable performance in demanding electrical environments.

Professional Features & Benefits

• 17.5A Current Rating: Provides precise overcurrent protection for medium-load electrical circuits and equipment.
• Class J Time-Delay Design: Allows temporary overloads while providing fast fault clearing for enhanced equipment protection.
• 600VAC/400VDC Dual Voltage: Versatile voltage compatibility for both AC and DC circuit protection applications.
• 200kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption in demanding electrical systems.
• SmartSpot Indication System: Visual indication technology provides immediate fuse status verification for faster troubleshooting.
• Ferrule Terminal Design: Tin-plated copper terminals ensure secure connections and corrosion resistance.
• RoHS Compliant Construction: Environmentally responsible design meets regulatory compliance requirements.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 17.5 A
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class J
• Indication System: Yes
• Indication System Type: SmartSpot�
• Mounting Method: Clip
• Product Length: 2.25 in
• Product Weight: 0.097 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 400 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Electrical Panels
• HVAC Equipment Protection
• Manufacturing Process Equipment
• Data Center Power Distribution
• Renewable Energy Systems
• Emergency Power Systems

SmartSpot Indication Advantage

The integrated SmartSpot indication system provides immediate visual confirmation of fuse status, enabling faster troubleshooting and reduced downtime. This professional indication technology eliminates guesswork during maintenance and system diagnostics, improving overall electrical system reliability and service efficiency.

Why Choose Mersen Quality?

Mersen delivers proven circuit protection reliability through RoHS compliant construction, precision-engineered GMG insulating materials, and tin-plated copper terminals for long-term performance. The compact 2.25-inch length and lightweight 0.097 lb design ensure versatile installation options while maintaining professional-grade protection standards.
