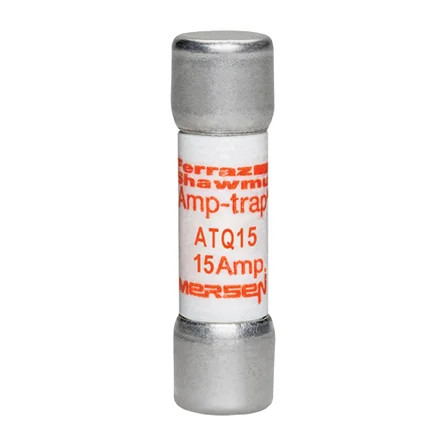

Mersen ATQ Midget Time-Delay Fuse 15A 500VAC Ferrule Terminal

Professional Circuit Protection with Time-Delay Characteristics

The Mersen ATQ Midget Time-Delay Fuse delivers reliable 15A circuit protection at 500VAC with professional-grade time-delay characteristics. Featuring ferrule terminals with tin-plated copper construction and GMG body insulating material, this midget class fuse provides dependable overcurrent protection with 10 kA breaking capacity for demanding electrical applications.

Professional Features & Benefits

  • 15A Rating at 500VAC: Provides precise overcurrent protection for medium-voltage applications with reliable amperage handling.
  • Time-Delay Characteristics: Allows temporary overloads while protecting against sustained overcurrent conditions, ideal for motor and inductive load applications.
  • 10 kA Breaking Capacity: Delivers robust fault interruption capability for high-current fault conditions in demanding electrical systems.
  • Ferrule Terminal Design: Ensures secure electrical connections with tin-plated copper terminals for enhanced conductivity and corrosion resistance.
  • Midget Class Construction: Compact 1.5-inch length design optimizes space utilization in electrical panels and equipment.
  • GMG Insulating Material: Professional-grade body construction provides reliable electrical isolation and mechanical durability.
  • RoHS Compliant: Meets environmental compliance standards for professional electrical installations.

Technical Specifications

  • Ac Max I R Breaking Capacity I1: 10 kA
  • Ac Or Dc: AC
  • Ampere Rating: 15 A
  • Body Insulating Material: GMG
  • Connection Terminal Material: Tin-Plated Copper
  • Connection Terminal Type: Ferrule
  • Frequency Hz : 50/60 Hz
  • Fuse Class: Midget
  • Mounting Method: Clip
  • Product Length: 1.5 in
  • Product Weight: 0.014 lb
  • Rated Voltage Ac Ul: 500 V
  • Rohs Compliant: Yes
  • Speed Characteristic: Time Delay

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Motor Control Centers and Starter Panels
  • Industrial Control Equipment
  • Commercial HVAC Systems
  • Lighting Control Panels
  • Power Distribution Equipment
  • Electrical Switchgear Applications
  • Process Control Systems

Why Choose Mersen Quality?

Mersen delivers professional-grade fuse protection with proven reliability through GMG insulating material construction, tin-plated copper terminals, and RoHS compliance. The compact midget class design and time-delay characteristics provide dependable circuit protection for demanding electrical applications requiring precise overcurrent management.

Manufacturer Resources

Product Specs

Ac Max I R Breaking Capacity I1:
10 kA
Ac Or Dc:
AC
Ampere Rating:
15 A
Body Insulating Material:
GMG
Connection Terminal Material:
Tin-Plated Copper
Connection Terminal Type:
Ferrule
Frequency Hz :
50/60 Hz
Fuse Class:
Midget
Mounting Method:
Clip
Product Length:
1.5 in
Product Weight:
0.014 lb
Rated Voltage Ac Ul:
500 V
Rohs Compliant:
Yes
Speed Characteristic:
Time Delay
