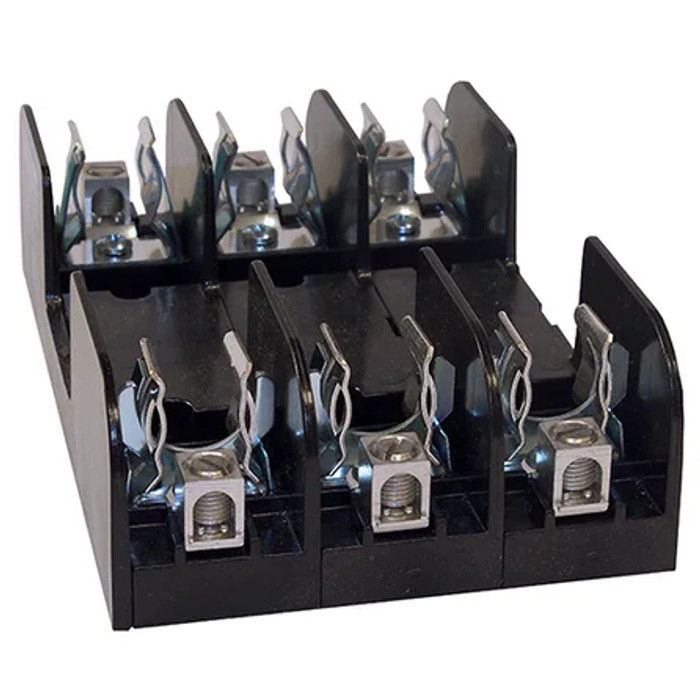

Mersen Class R Fuse Block 600VAC/600VDC 60A 3-Pole with Reinforced Clip-In Design

Mersen Class R Fuse Block 600VAC/600VDC 60A 3-Pole with Reinforced Clip-In Design

Professional Class R Fuse Protection for Industrial & Commercial Applications

The Mersen Class R Fuse Block delivers reliable overcurrent protection with 600VAC/600VDC dual voltage capability and 60A ampere rating. This 3-pole fuse block features glass filled polycarbonate construction for durability and reinforced clip-in fuse installation for secure connections. With 200 kA short circuit current rating and direct screw mount installation, this professional-grade fuse block provides dependable protection for demanding electrical applications.

Professional Features & Benefits

• 600VAC/600VDC Dual Voltage Rating: Versatile compatibility for both AC and DC electrical systems with maximum operational flexibility.
• 60A Ampere Rating: Robust current handling capacity suitable for medium-duty industrial and commercial circuit protection requirements.
• Class R Fuse Compatibility: Engineered for Class R fuses providing reliable time-delay characteristics and rejection of lower-rated fuse classes.
• Glass Filled Polycarbonate Construction: Superior insulating material delivers enhanced mechanical strength and thermal stability for long-term reliability.
• Reinforced Clip-In Design: Secure fuse installation method ensures positive contact and simplified maintenance procedures.
• 200 kA Short Circuit Current Rating: High fault current interruption capability provides robust protection in demanding electrical environments.
• RoHS Compliant Design: Environmentally responsible construction meets international standards for hazardous substance restrictions.

Technical Specifications

• Ac Or Dc: AC/DC
• Ampere Rating: 60 A
• Body Insulating Material: Glass Filled Polycarbonate
• Frequency Hz : 50/60 Hz
• Fuse Class: Class R
• Fuse Installation Method: Clip-in
• Fuse Type Class: Class R
• Installation Mounting: Direct Screw Mount
• Max Fuse Rating: 60 A
• Number Of Poles: 3-Pole
• Product Height: 2 in
• Product Length: 7 in
• Product Weight: 1 lb
• Product Width: 4.55 in
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 600 V
• Rohs Compliant: Yes
• Short Circuit Current Rating Sccr : 200 kA
• Torque Rating: 45 lb-in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Motor Control Centers
• Commercial Electrical Distribution Panels
• Manufacturing Equipment Protection
• HVAC System Circuit Protection
• Process Control Applications
• Electrical Maintenance & Service Operations
• Power Distribution Upgrade Projects

Why Choose Mersen Quality?

Mersen fuse blocks deliver proven reliability through glass filled polycarbonate construction and RoHS compliant design. With 200 kA short circuit current rating and reinforced clip-in installation, this professional-grade protection solution ensures dependable performance in demanding electrical environments while meeting international environmental standards.
