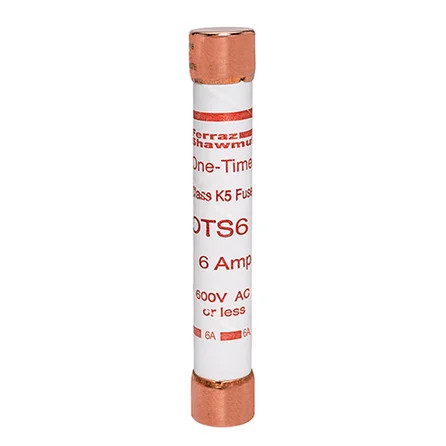

Mersen Class K5 Fast-Acting Fuse 6A 600VAC/300VDC Ferrule Terminal

Mersen Class K5 Fast-Acting Fuse 6A 600VAC/300VDC Ferrule Terminal

Professional Fast-Acting Circuit Protection with Ferrule Terminal Design

The Mersen Class K5 Fast-Acting Fuse delivers reliable circuit protection for both AC and DC applications with 6A current rating, 600VAC/300VDC voltage capability, and ferrule terminal connections. This professional-grade fuse features paper body insulation, copper connection terminals, and clip mounting for versatile installation requirements.

Professional Features & Benefits

• 6A Current Rating: Provides precise overcurrent protection for medium-load circuits and equipment applications.
• 600VAC/300VDC Dual Voltage: Offers flexible protection for both alternating and direct current systems up to rated voltages.
• Class K5 Fast-Acting Response: Delivers rapid fault clearing to minimize equipment damage and system downtime.
• 50kA Breaking Capacity: Handles high fault currents safely, ensuring reliable protection under severe fault conditions.
• Ferrule Terminal Design: Enables secure, professional connections with copper terminals for optimal conductivity.
• Paper Body Insulation: Provides effective electrical isolation with proven insulating material technology.
• RoHS Compliant Construction: Meets environmental standards for responsible electrical component manufacturing.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 50 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 6:00 AM
• Body Insulating Material: Paper
• Connection Terminal Material: Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class K5
• Mounting Method: Clip
• Product Length: 5 in
• Product Weight: 0.11 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 300 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Industrial Control Panels and Motor Control Centers
• Commercial HVAC and Lighting Systems
• Power Distribution Equipment Protection
• Electronic Equipment and Instrumentation Circuits
• Renewable Energy System Protection
• Process Control and Automation Systems
• Emergency Power and UPS Applications

Why Choose Mersen Quality?

Mersen delivers proven reliability in electrical protection with RoHS compliant construction, precision-engineered copper terminals, and professional-grade paper insulation. The 5-inch compact design and 0.11 lb lightweight construction ensure versatile installation while maintaining robust 50kA breaking capacity for demanding applications.
