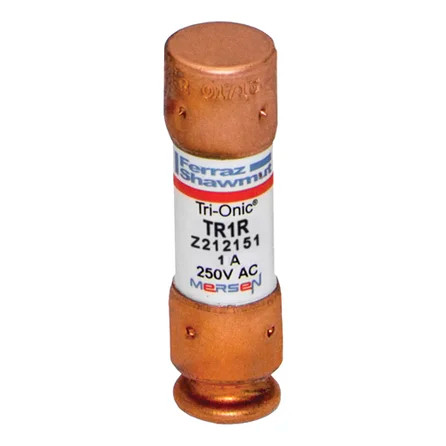

Mersen TR1R Class RK5 Time-Delay Fuse 1A 250VAC/250VDC Ferrule Terminal

Mersen TR1R Class RK5 Time-Delay Fuse 1A 250VAC/250VDC Ferrule Terminal

Professional Time-Delay Protection for AC/DC Applications

The Mersen TR1R delivers reliable overcurrent protection with Class RK5 time-delay characteristics for both AC and DC circuits up to 250V. This professional-grade fuse features ferrule terminals with copper connection material and PolyTube body insulation, providing dependable circuit protection with 200 kA breaking capacity for demanding electrical applications.

Professional Features & Benefits

• Class RK5 Time-Delay Design: Provides selective coordination and withstands temporary overloads while protecting against sustained overcurrent conditions
• Dual Voltage Rating 250VAC/250VDC: Versatile protection for both alternating and direct current applications up to 250V
• 200 kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption in demanding electrical systems
• Ferrule Terminal Construction: Copper terminals provide secure, low-resistance connections for reliable electrical contact
• PolyTube Body Insulation: Durable insulating material ensures safe operation and long service life
• Compact 2-inch Length: Space-efficient design fits standard fuse holders and electrical enclosures
• RoHS Compliant: Meets environmental compliance standards for professional electrical installations

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 1:00 AM
• Body Insulating Material: PolyTube
• Connection Terminal Material: Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class RK5
• Mounting Method: Clip
• Product Length: 2 in
• Product Weight: 0.037 lb
• Rated Voltage Ac Ul: 250 V
• Rated Voltage Dc Ul: 250 V
• Rohs Compliant: Yes
• Speed Characteristic: Time Delay
