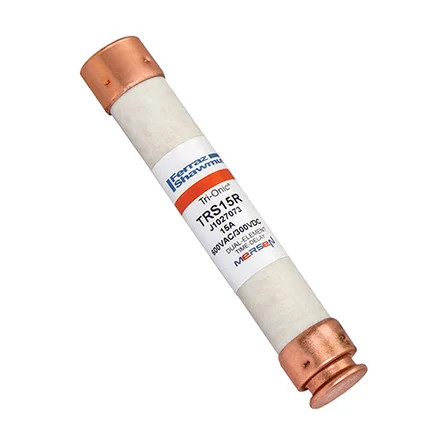

Mersen TRS-R Class RK5 Time-Delay Fuse 15A 600VAC/300VDC Ferrule Terminal

Mersen TRS-R Class RK5 Time-Delay Fuse 15A 600VAC/300VDC Ferrule Terminal

Professional Circuit Protection with Time-Delay Characteristics

The Mersen TRS-R Class RK5 time-delay fuse delivers reliable circuit protection with 15A rating and dual voltage capability of 600VAC/300VDC. Featuring ferrule terminals and PolyTube insulating material, this professional-grade fuse provides exceptional breaking capacity of 200 kA for demanding electrical applications requiring precise overcurrent protection.

Professional Features & Benefits

• 15A Ampere Rating: Provides precise current protection for medium-load circuits and equipment protection applications.
• Class RK5 Design: Delivers current-limiting performance with time-delay characteristics for motor and inductive load compatibility.
• Dual Voltage Rating: 600VAC/300VDC capability offers versatility for both AC and DC circuit protection requirements.
• 200 kA Breaking Capacity: Exceptional fault current interruption capability ensures reliable protection in high-fault current environments.
• Ferrule Terminal Construction: Copper ferrule terminals provide secure connections and optimal conductivity for professional installations.
• PolyTube Insulating Material: Advanced body construction delivers superior insulation and mechanical protection in demanding environments.
• Time-Delay Characteristics: Allows temporary overloads while providing fast response to fault conditions for optimal equipment protection.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 200 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 15 A
• Body Insulating Material: PolyTube
• Connection Terminal Material: Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Class RK5
• Mounting Method: Clip
• Product Length: 5 in
• Product Weight: 0.137 lb
• Rated Voltage Ac Ul: 600 V
• Rated Voltage Dc Ul: 300 V
• Speed Characteristic: Time Delay

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Motor Control Centers and Industrial Equipment Protection
• Commercial HVAC and Lighting Circuit Protection
• Power Distribution Panels and Switchgear Applications
• Manufacturing and Process Control Systems
• Building Automation and Control Circuits
• Emergency Power and Backup Systems
• Professional Electrical Service and Maintenance

Why Choose Mersen Quality?

Mersen TRS-R fuses deliver proven reliability with advanced PolyTube construction and copper ferrule terminals for professional circuit protection applications. The 5-inch length and clip mounting method ensure compatibility with standard fuse holders while providing the durability and performance required for critical electrical systems.
