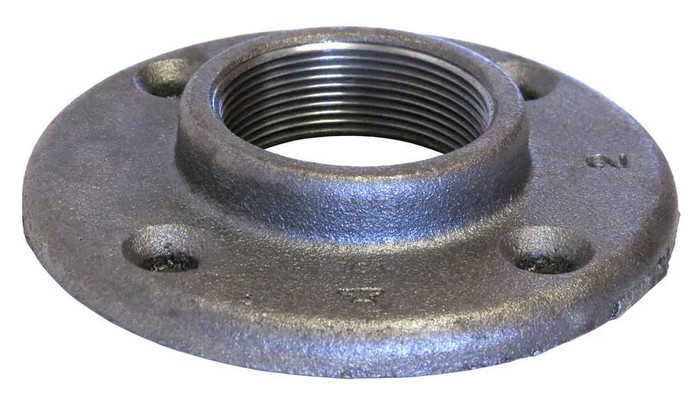

G1190 2 PLTD DI FLOOR FLANGE
Manufacturer Resources
Product Specs
- Dimensions Specification:
- ASME B16.3
- End Conn Size 1:
- FPT
- End Conn Size 2:
- FPT
- Finish Specification:
- ASTM A-153
- Material Specification:
- ASTM A-197
- Pressure Rating Specification:
- ASME B16.3
- Size 1:
- 2
- Size 2:
- 2
- Strength:
- STD
- Thread Specification:
- ASME B1.20.1
- Ul Fm:
- Yes
- Department:
- Plumbing
- Product Group:
- Plumbing Fittings
- Product Subgroup:
- Flanges
- Product Type:
- Floor Flange
- Product Finish:
- Galvanized
- Product Material:
- Ductile Iron
- Product Weight:
- 2.05 lbs
ASC Engineered Solutions 311106009 – Frequently Asked Questions
1) What pipe size and thread does the ASC G1190 floor flange take?
The G1190 floor flange is a 2 inch fitting with female pipe threads (FPT) cut to ASME B1.20.1, so it threads straight onto standard 2 inch NPT pipe. No adapter needed if your pipe is threaded NPT.
2) Is this 2 inch floor flange approved for fire sprinkler piping?
Yes, the G1190 carries UL/FM approval, so it can be used on fire protection piping where the AHJ requires listed fittings. Confirm the pressure class on your drawing matches, as this is a standard weight fitting rated per ASME B16.3.
3) Is the ASC G1190 floor flange malleable iron or cast iron?
It is ductile iron built to ASTM A-197, which is the malleable/ductile iron fitting spec, and it is dimensioned to ASME B16.3 for threaded malleable iron fittings. That makes it a threaded-fitting class part, not a brittle gray cast iron flange.
4) Can this galvanized floor flange be used outdoors or in a damp mechanical room?
The G1190 is galvanized to ASTM A-153, the hot-dip zinc coating spec for iron hardware, so it holds up in wet and exposed locations better than a plain black fitting. For interior dry work either black or galvanized will do; for outdoor, damp, or corrosive areas the galvanized version is the one to order.
5) How much does the 2 inch ASC floor flange weigh?
About 2.05 lbs each. That matters when you are figuring anchor sizing for an overhead or wall-mounted support, and when a job calls for a case of them on a riser package.
