GENERAC 6424 Generac 6424 - HS...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$317.13
$267.13

GENERAC 6424 Generac 6424 - HSB Brownout Protection Kit

(No reviews yet) Write a Review

Model: 6424
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$317.13
$267.13
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
Generac 6424 - HSB Brownout Protection Kit
  • Features

    • Allows the nominal drop out, pick up percentage to be increased to 95%
    • Compatible with: RTSX, RTSD, RSTE, RTSN, EZ switches up to 400 amps, single phase (not compatible with GenReady)

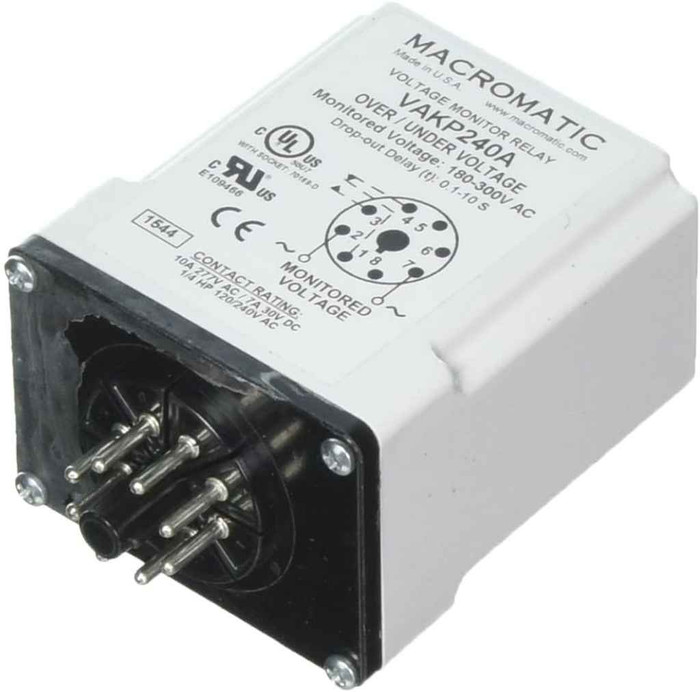

    • 240V relay timer, 8 position, 600V, 10 amp socket relay and associated hardware
    • HSB Brownout Protection Kit
    • Allows the nominal voltage pick up percentage to be increased to 90%

Manufacturer Resources

Product Specs

Assembled Depth:
6.0 in
Assembled Height:
6.0 in
Assembled Weight:
2.0 lbs
Assembled Width:
6.0 in
Country Of Origin:
United States
Does This Product Have A Warranty :
Yes
Manufacturer Warranty:
1 Year Limited
Restrictions:
No
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Generator Accessories
Product Type:
Brownout Protection Kit

Generac 6424 – Frequently Asked Questions

1) Will the Generac 6424 brownout kit work with my RTSX transfer switch?
Yes. The 6424 HSB Brownout Protection Kit is compatible with Generac RTSX, RTSD, RSTE, RTSN and EZ switches up to 400 amps, single phase. It will not work with GenReady load centers, so if that's what you have on the wall, this kit is the wrong part.
2) What does the Generac 6424 brownout kit actually change about when the generator starts?
It raises the voltage thresholds the transfer switch uses to decide utility power has failed. The nominal drop out and pick up percentage can be increased to 95%, and the nominal voltage pick up percentage to 90%. That means the switch calls for the generator on a sag rather than waiting for a full outage, which is the point of it on a site with soft or sagging utility voltage that browns out equipment before it ever drops.
3) Can I use the Generac 6424 brownout kit on a three phase or over-400-amp transfer switch?
No. Compatibility stops at single phase switches up to 400 amps. A three phase service or a switch rated above 400 amps is outside what this kit covers, so specify a different brownout solution for those installations.
4) What comes in the Generac 6424 brownout protection kit?
The kit contains a 240V relay timer, an 8 position, 600V, 10 amp socket relay, and the associated mounting hardware. It's a field-added assembly for an existing Generac automatic transfer switch, not a standalone controller and not a switch itself.
5) I manage buildings where the lights dim but the generator never starts. Is a brownout kit the fix?
That's the exact condition this addresses. A standard Generac transfer switch waits for utility voltage to fall well below nominal before transferring, so a long sag can sit there browning out motors and electronics without ever triggering a start. The 6424 kit raises the drop out threshold to 95% of nominal and the pick up to 90%, so the switch reacts to the sag instead of riding through it. It only helps if the switch is one of the supported single phase models (RTSX, RTSD, RSTE, RTSN or EZ) at 400 amps or less.
6) How much room do I need to mount the Generac 6424 brownout kit?
Assembled, the kit runs 6 by 6 by 6 inches and weighs 2 pounds, so it needs a clear 6 inch cube of space in the enclosure or on the panel where it lands. Light enough that it hangs on the relay socket and hardware supplied with it.
7) What is the Generac part number for the HSB brownout protection kit?
Generac 6424. That's the manufacturer part number to order against, and the kit is made in the United States.
