Intermatic 40A Autovoltage Electronic Time Control with 7-Day Programming and Type 3R Enclosure

Intermatic 40A Autovoltage Electronic Time Control with 7-Day Programming and Type 3R Enclosure

Professional Time Control for Commercial & Industrial Applications

The Intermatic 40A Autovoltage Electronic Time Control delivers precise scheduling and reliable switching for demanding commercial and industrial applications. This heavy-duty time control features automatic voltage adjustment from 120-277 VAC, DPDT switching configuration with 40A contact rating, and weatherproof Type 3R outdoor enclosure for versatile installation requirements.

Professional Features & Benefits

• 40A Heavy-Duty Contact Rating: Handles high-current loads for motors, lighting, and general electrical circuits with reliable switching performance.
• Autovoltage 120-277 VAC Operation: Automatically adjusts to available voltage, eliminating the need for multiple models and simplifying inventory management.
• 7-Year Lithium Battery Backup: Maintains programming and accurate timekeeping during power outages, ensuring continuous operation without reprogramming.
• 24-Hour/7-Day Programming: Flexible scheduling with 20 setpoint programs and to-the-minute accuracy for precise load control.
• DPDT Switching Configuration: Provides 2 NO and 2 NC contacts for versatile wiring options and multiple load control applications.

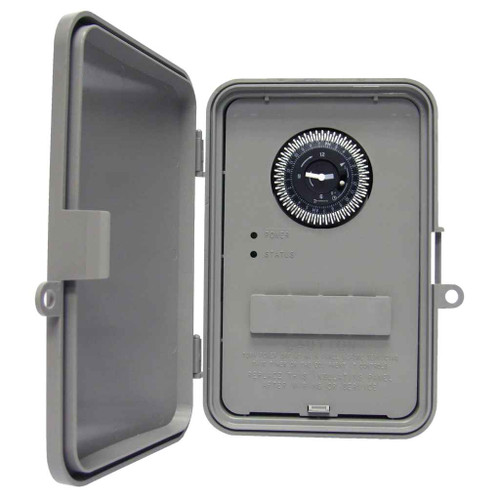

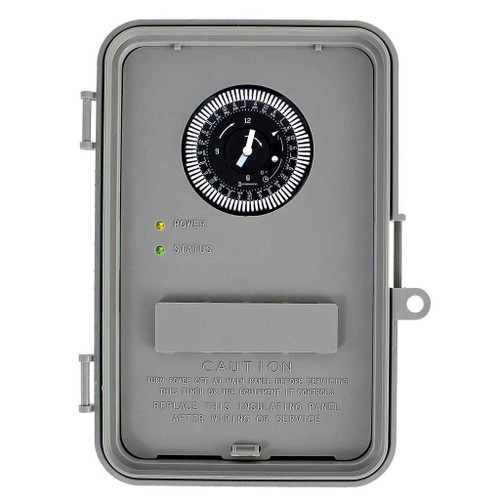

• Type 3R Outdoor Enclosure: Weather-resistant plastic housing with lockable hasp protects internal components and provides secure access control.
• Manual Override Capability: Temporary manual control with load status indication allows for testing and emergency operation.

Technical Specifications

• Backup Protection Time: 7 Years
• Backup Type: Battery
• Enclosure Type: Outdoor Type 3R Plastic
• Input Voltages Display: 120-277 VAC, 50/60 Hz
• Maximum On Off Operations: 0
• Maximum On Off Times: 23 hours, 59 minutes
• Minimum On Off Times: 1 min
• Motor No : 1 HP, 16 FLA, 90 LRA, 120 VAC, 50/60 Hz 2 HP, 12 FLA, 52 LRA, 208-277 VAC, 50/60 Hz
• Number Of Circuits: 2
• Operating Temperature Max C : 55
• Operating Temperature Max F : 131
• Operating Temperature Min C : -40
• Operating Temperature Min F : -40
• Operation Mode: 24-hour, 7-day
• Product Depth Mm : 76.2
• Product Height Mm : 225.6
• Product Width Mm : 167.9
• Resistive Nc : 30 A, 120 VAC, 50 Hz
• Resistive No : 40 A, 120-277 VAC, 50/60 Hz
• Switch Classification: DPDT
• Tungsten Nc : 2 A, 120 VAC, 50/60 Hz
• Tungsten No : 15 A, 120 VAC, 50/60 Hz

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Lighting Control Systems
• Industrial Motor Control Applications
• Pump and Fan Control Operations
• Commercial Refrigeration Systems
• Access Control and Security Systems
• General Electrical Circuit Management
• Outdoor Equipment Scheduling

Why Choose Intermatic Quality?

Intermatic electronic time controls deliver proven reliability with heavy-duty 40A contact ratings, extended 7-year battery backup protection, and rugged Type 3R outdoor enclosures. The wide operating temperature range from -40�F to 131�F ensures dependable performance in challenging environmental conditions, making this time control ideal for demanding commercial and industrial applications.
