GMS KIT-PART02 Small and Large Format Housing Cam Kit

The GMS KIT-PART02 Interchangeable Core Housing Cam Kit is an essential commercial hardware assortment engineered specifically for small format interchangeable core (SFIC) and large format interchangeable core (LFIC) mortise cylinder housings. When upgrading, servicing, or rekeying facilities utilizing interchangeable core systems, swapping out the entire core housing can be costly and time consuming. This kit provides a reliable alternative by supplying a comprehensive layout of modular cams.

Locksmiths, facility managers, and commercial technicians can use this assortment to adapt existing IC housings to sync perfectly with a wide variety of commercial locksets, deadlatches, and exit device trims. Covering major hardware brand footprints across both small and large formats, it ensures immediate compatibility and operational timing directly in the field.

Key Features

  • Optimized for IC Housings: Specifically designed to fit the unique rear configurations of SFIC and LFIC mortise cylinder housings rather than standard fixed plug cylinders.

  • Professional Fleet Grade Assortment: Eliminates the frustration of missing component parts on site by organizing the most frequently used commercial cam footprints into a single kit.

  • Multi Brand Footprint Coverage: Features dedicated cam profiles for major hardware specifications including Best, Adams Rite, Schlage, Sargent, and Yale configurations.

  • Premium Material Strength: Machined from heavy duty materials engineered to handle the rigorous everyday rotational force of commercial access environments without bending or binding.

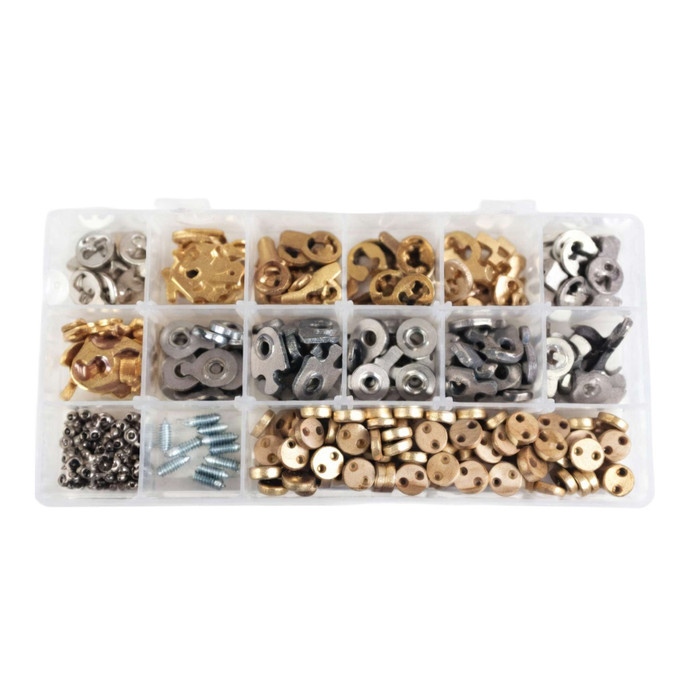

  • High Visibility Carrying Case: Packaged in a rugged, partitioned storage box that keeps each specific component separated, labeled, and highly accessible for mobile service operations.

Kit Components and Contents

The kit contains 10 pieces of each of the following specific IC housing cams:

  • CAM2-AR: Adams Rite Cam for SFIC Housings (10 pieces)

  • CAM2-CL: Cloverleaf Cam for SFIC Housings (10 pieces)

  • CAM2-BE: Best Cam for SFIC Housings (10 pieces)

  • CAM2-SA: Sargent Cam for SFIC Housings (10 pieces)

  • CAM2-SL: Schlage L Cam for SFIC Housings (10 pieces)

  • CAM2-ST: Yale Standard Cam for SFIC Housings (10 pieces)

  • CAM2-TS: Falcon / Saflok Cam for SFIC Housings (10 pieces)

  • CAM3-AR: Adams Rite Cam for LFIC Housings (10 pieces)

  • CAM3-CL: Cloverleaf Cam for LFIC Housings (10 pieces)

  • CAM3-SA: Sargent Cam for LFIC Housings (10 pieces)

  • CAM3-SL: Schlage L Cam for LFIC Housings (10 pieces)

Technical Specifications

  • Manufacturer: GMS Industries

  • Model / Part Number: KIT-PART02 (also referenced as KITPART02)

  • Product Type: Interchangeable Core (IC) Housing Cam Kit

  • Core Format Compatibility: Small Format Interchangeable Core (SFIC) and Large Format Interchangeable Core (LFIC)

  • Total Piece Count: 110 premium housing cams

  • Housing Compatibility: Tailored exclusively for GMS IC mortise housings and industry standard equivalents

  • Material Type: High tensile machined and stamped steel/brass alloy variants

  • Estimated Shipping Weight: 0.88 lb (0.40 kg)

Manufacturer Resources

Product Specs

Product Group:
Parts and Accessories
Product Subgroup:
Cylinders
Product Type:
Parts and Accessories
Product Function:
Cylinder
Department:
Door Hardware

GMS Lock-Cylinders KIT-PART01-CA-1 – Frequently Asked Questions

1) What cams are included in the GMS KIT-PART02 cam kit, and how many of each?
The GMS KIT-PART02 cam kit holds 110 pieces total, 10 each of 11 cam profiles. For small format interchangeable core (SFIC) housings: CAM2-AR (Adams Rite), CAM2-CL (cloverleaf), CAM2-BE (Best), CAM2-SA (Sargent), CAM2-SL (Schlage L), CAM2-ST (Yale standard), and CAM2-TS (Falcon/Saflok). For large format interchangeable core (LFIC) housings: CAM3-AR (Adams Rite), CAM3-CL (cloverleaf), CAM3-SA (Sargent), and CAM3-SL (Schlage L). Note the LFIC side covers four profiles, not the full seven, so Best, Yale standard and Falcon/Saflok cams come in the small format only.
2) Will these cams fit a standard fixed-plug mortise cylinder, or only interchangeable core housings?
Interchangeable core housings only. The KIT-PART02 cams are cut for the rear configurations of SFIC and LFIC mortise cylinder housings, not for conventional fixed plug mortise cylinders. If you are servicing standard keyed-plug mortise cylinders, this is the wrong kit and you need conventional mortise cylinder cams instead.
3) I'm rekeying a building with interchangeable cores and the cam timing is wrong on a few doors. Do I have to replace the whole housing?
Not necessarily. Swapping the cam is the usual fix, and that is what the KIT-PART02 assortment exists for: replacing the whole core housing on every door is slower and more expensive than fitting the correct cam profile. With the right cam the existing IC housing drives the lockset, deadlatch or exit device trim on the correct timing. Keep in mind the Best, Yale standard and Falcon/Saflok profiles are supplied in the SFIC version only.
4) What is the difference between the CAM2 and CAM3 cams in the GMS kit?
The numbering splits by core format. CAM2 parts are for small format interchangeable core housings, CAM3 parts are for large format. A CAM2-SL and a CAM3-SL are both Schlage L profiles, but they mount to different housing formats and are not interchangeable with each other. Identify your housing as SFIC or LFIC first, then pick the profile.
5) Do these cams work on non-GMS interchangeable core housings?
The kit is built for GMS IC mortise housings and industry standard equivalents, so it covers housings machined to the common SFIC and LFIC footprints. The cam profiles themselves are named for the lock they have to drive: Best, Adams Rite, Schlage, Sargent, Yale, Falcon/Saflok and cloverleaf. So you pick the cam by what the housing is going into, not by who made the housing.
6) Does the GMS KIT-PART02 include cores, keys or cylinder housings?
No. KIT-PART02 is cams only, 110 of them across 11 profiles. No interchangeable cores, no keys, no cylinder housings, no set screws are part of it. Order cores and housings separately for the openings you are working on.
7) Is the GMS cam kit organized for a service van, or is it loose parts in a bag?
It ships in a rugged partitioned box with each cam type separated and labeled, which is the point for mobile work: you can pull the Schlage L or Sargent cam on site without sorting through a pile of look-alike parts. Cams are machined and stamped steel and brass alloy depending on the profile.
8) Is KITPART02 the same product as GMS KIT-PART02?
Same part. GMS lists the cam kit as KIT-PART02 and it is also referenced as KITPART02 without the hyphen. Either designation refers to the 110 piece SFIC and LFIC housing cam assortment from GMS Industries.
9) Is the Cal-Royal PDL-200 privacy door latch tool an alternative to the GMS KIT-PART02 cam kit for a locksmith service truck?
No, they solve different problems. The GMS KIT-PART02 is an interchangeable core housing cam kit holding 110 cams, 10 each of eleven profiles including CAM2-BE Best, CAM2-SA Sargent, CAM2-SL Schlage L, CAM2-AR Adams Rite, CAM2-CL cloverleaf, CAM2-ST Yale standard and CAM2-TS Falcon/Saflok for SFIC housings, plus CAM3-AR, CAM3-CL, CAM3-SA and CAM3-SL for LFIC housings, so a technician can retime an existing IC mortise housing to a given lockset in the field. The Cal-Royal PDL-200 is a steel privacy door latch disengage tool for a privacy, bed and bath function latch. One stocks replacement cylinder parts, the other opens a locked privacy door.
