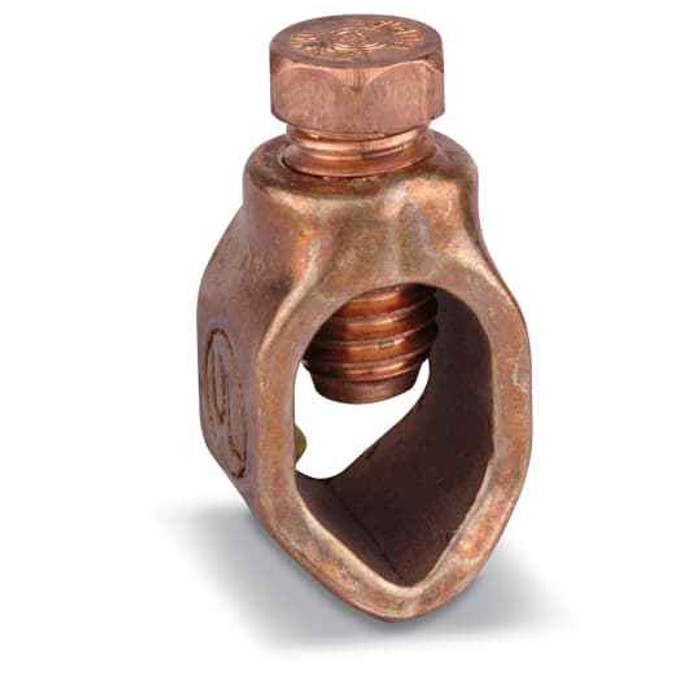

GRD ROD CLAMP 1/2IN ROD 2 STR-10SOL
Manufacturer Resources
Product Specs
- Country Of Origin:
- India (IN)
- Material Of Conductor:
- Copper
- Product Group:
- Grounding & Bonding
- Product Type:
- Ground Rod Clamp
- Selling Unit Of Measure:
- each
- Standards:
- UL E3060, CSA 29625
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Ground Clamps
Blackburn JAB12 – Frequently Asked Questions
1) What size ground rod does the Blackburn JAB12 clamp fit?
The JAB12 is sized for a 1/2 inch ground rod. If your rod is 5/8 inch (the most common size driven for services), this clamp is the wrong one, so measure the rod before ordering.
2) What wire range will the JAB12 ground rod clamp take?
It accepts #2 stranded down through #10 solid copper conductor, which covers typical grounding electrode conductors on residential and light commercial services. Larger than #2 needs a different clamp.
3) Is the Blackburn JAB12 clamp UL listed for grounding?
Yes. The JAB12 carries UL E3060 and CSA 29625, which is what an inspector or a spec on a government or healthcare job will want to see for a grounding electrode connection.
4) Can I use the JAB12 on copper wire without a galvanic corrosion problem?
The conductor material on the JAB12 is copper, so it mates with copper grounding electrode conductor without mixing dissimilar metals at the connection.
5) Do I need a separate clamp for each ground rod in a two-rod system?
Yes, one JAB12 per rod. It's a single-conductor ground rod clamp sold each, so a two-rod electrode system with a bonding jumper between rods takes two clamps, each on a 1/2 inch rod with #2 stranded to #10 solid copper.
6) Is the JAB12 sold individually or in a box?
Each. The selling unit is one clamp, so order the exact count you need rod by rod rather than buying a carton.
7) Where is the Blackburn JAB12 made?
India. Useful if your project carries country-of-origin documentation requirements on submittals.
