Greenlee 124AV Round Conduit Knockout Punch Die, 3-Size

Greenlee 124AV Round Conduit Knockout Punch Die, 3-Size

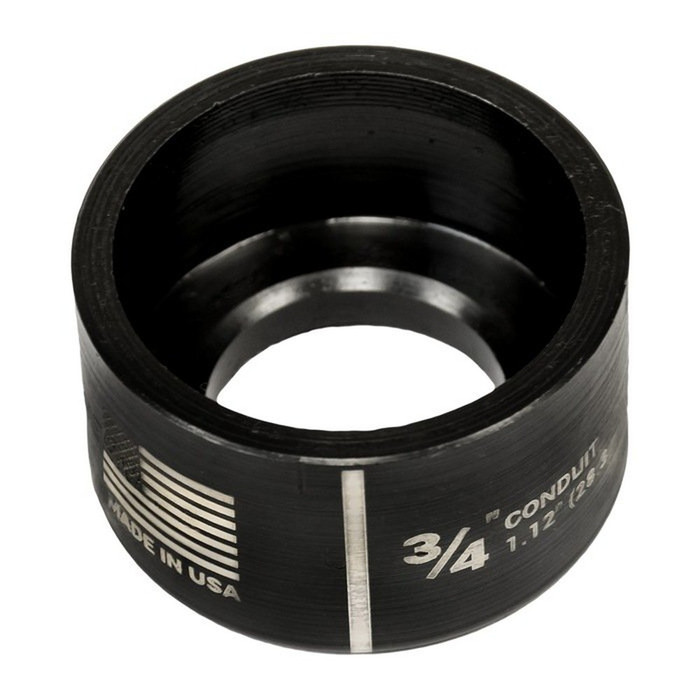

The Greenlee 124AV Round Conduit Die is a replacement die designed for use with standard round knockout punches, giving electricians and panel builders a reliable way to punch clean, accurately sized conduit holes. This round-shaped die is built as a 3 conduit size die, allowing one component to serve multiple hole-size requirements on the job. Compatible with battery-powered, hydraulic, ratchet, or manual punch drivers, it has the capacity to punch mild steel up to 10 gauge, along with aluminum, fiberglass, and plastic enclosures. Alignment markings on the die improve punching accuracy and productivity, helping installers place holes correctly the first time and reducing wasted material. Every Greenlee 124AV die is marked with its catalog number and size for fast identification in the field or in a crowded tool bag, and it is proudly made in the United States to help ensure consistent manufacturing quality.

Key Features

• 3 Conduit Size Die: A single round die covers three conduit sizes, reducing the number of individual dies needed on the truck.
• Alignment Markings: Clearly marked alignment references improve punching accuracy and productivity when making holes.
• Round Shape: Designed as a standard round knockout die for conventional round conduit hole punching.
• Broad Material Capacity: Rated for use on mild steel up to 10 gauge, as well as aluminum, fiberglass, and plastic.
• Driver Versatility: Works with battery-powered, hydraulic, ratchet, or manual punch drivers for flexible use across job types.
• Clear Part Identification: Punches and dies are marked with catalog numbers and sizes for quick identification and reordering.
• Replacement Die Type: Engineered as a replacement die for standard round knockout punches, simplifying maintenance of existing punch sets.

Technical Specifications

• Country of Origin: United States
• Type: Replacement Die for standard round knockout punches
• Shape: Round
• Conduit Sizes Covered: 3 Conduit Size Die
• Material Capacity: Up to 10 gauge mild steel, aluminum, fiberglass, and plastic
• Compatible Drivers: Battery-powered, hydraulic, ratchet, or manual

Typical Applications

• Punching Round Conduit Knockouts in Electrical Enclosures
• Panel and Junction Box Fabrication
• Commercial and Industrial Electrical Installations
• Fabrication of Aluminum, Fiberglass, and Plastic Enclosures
• Field Maintenance of Existing Round Knockout Punch Sets

Why Greenlee?

Greenlee builds its round conduit dies with alignment markings and clear catalog identification so electricians can punch accurate holes efficiently and reorder the correct part without guesswork. Manufactured in the United States, the 124AV die is engineered to deliver dependable performance across mild steel, aluminum, fiberglass, and plastic materials for professional electrical fabrication work.
