GRID CONNECT, 1/2-5/8 ROD, 4/0-2/0
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)Mexico (MX)
- Product Group:
- Grounding & Bonding
- Product Type:
- E-Z-Ground Compression Grounding
- Selling Unit Of Measure:
- each
- Standards:
- UL E3060
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
Blackburn 53060 – Frequently Asked Questions
1) Is the Blackburn 53060 UL listed for grounding?
Yes. The 53060 carries UL E3060. That is the file reference an inspector or spec writer will ask for on a grounding electrode connection.

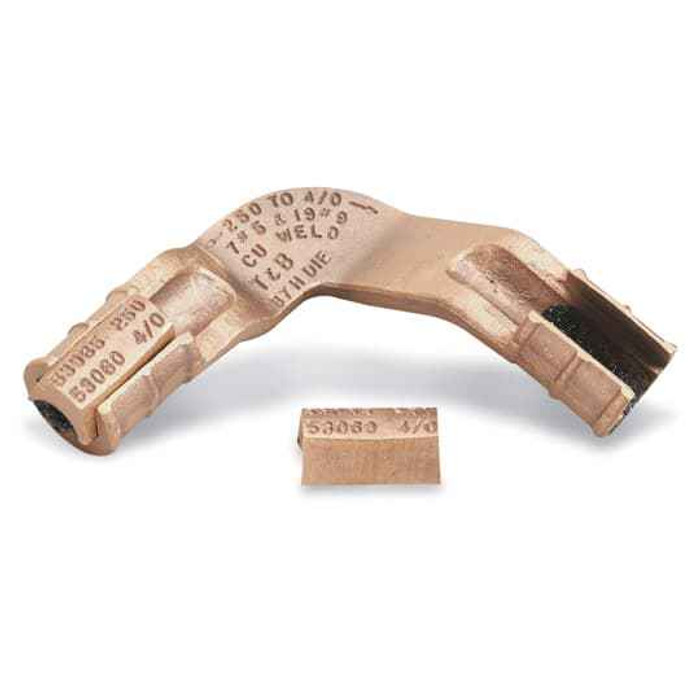

2) Is the Blackburn 53060 a compression connector or a mechanical clamp?
It is a compression grounding connector, part of Blackburn's E-Z-Ground compression line. You crimp it with the matching die rather than torquing a bolt, so plan on having a hydraulic or battery crimper on site. A mechanical rod clamp is the option if you need a bolted, re-openable connection instead.
3) Can the Blackburn 53060 be used for a direct-buried ground grid connection?
It is a grid connect compression fitting for grounding electrode work, tying a 4/0 to 2/0 grid conductor to a 1/2 or 5/8 inch rod. Compression grounding connections of this type are the standard choice where the connection goes below grade and will not be accessible for retightening.
4) What is the correct part number to order for a 5/8 inch rod with 4/0 grid conductor from Blackburn?
Blackburn 53060. That single MPN covers 1/2 and 5/8 inch rod with 4/0 down to 2/0 conductor, so distributors ordering for both rod sizes can standardize on the one number.
5) Is the Blackburn 53060 sold individually or in a bag quantity?
Each. The 53060 is sold as a single connector, so order one per rod-to-conductor connection in your grid layout.
6) Where is the Blackburn 53060 made?
Country of origin on the 53060 is the United States or Mexico. Worth knowing on federal or Buy American-flagged jobs where the submittal has to show origin.
