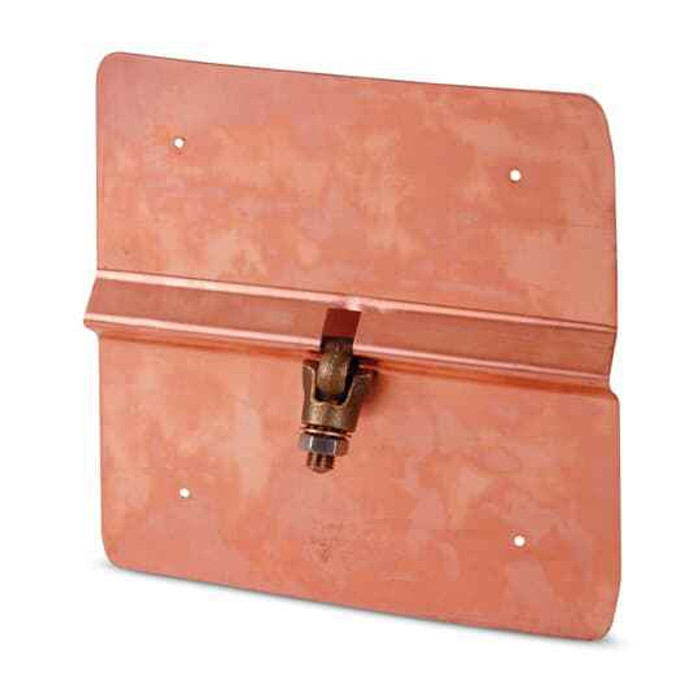

GRND PLT CU POLE 10-2/0 AL BRZALLOY
Manufacturer Resources
Product Specs
- Connection Type:
- Mechanical
- Country Of Origin:
- India (IN)
- Insulation Material:
- None
- Material Of Conductor:
- Copper
- Product Group:
- Grounding & Bonding
- Product Type:
- Copper Pole Ground Plate
- Selling Unit Of Measure:
- each
- Type Of Indicator:
- None
- Type2:
- Grounding devices or assemblies
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
- Product Size:
- 7 in X 7-5/8 in
Blackburn PBGW – Frequently Asked Questions
1) What conductor sizes does the Blackburn PBGW pole ground plate accept?
The PBGW takes conductors from #10 through 2/0, and it's rated for aluminum as well as copper conductor per the product designation (10-2/0 AL). That range covers the typical #6 bonding jumper up through a 2/0 grounding electrode conductor on a lighting or traffic pole, so one plate handles most pole-base grounding without a separate lug for the larger sizes.
2) Is the Blackburn PBGW a mechanical connection or does it need compression tooling?
It's a mechanical connection, so it lands with a wrench or hex key. No crimper, no die set, no exothermic mold. That matters on a pole base where you're working in a handhole and can't get a hydraulic tool in, and it means the connection can be opened later for testing or re-termination.
3) What is the Blackburn PBGW ground plate made of, and can I use it with aluminum conductor?
The conductor path is copper, and the body is bronze alloy. The 10-2/0 AL rating in the part description means it's listed to take aluminum conductor as well, which is what keeps a dissimilar-metal termination from being a problem on the pole base.
4) Does the Blackburn PBGW come insulated or with any kind of connection indicator?
Neither. The PBGW is a bare, uninsulated plate with no visual or torque indicator built in. If the installation calls for an insulated or covered termination, or the spec requires an indicating connector, this isn't the part.
5) Is the Blackburn PBGW ground plate sold individually or in a box?
Sold each. Order the exact plate count you need, one per pole base, rather than buying a carton quantity.
6) What part number do I give my distributor for the Blackburn pole ground plate?
Blackburn PBGW is the manufacturer part number, and it's the full catalog designation for the copper pole ground plate rated 10-2/0 AL in bronze alloy. Country of origin is India.
