Metallics CG20 Ground Clip size 10/12/14 Green Steel Zinc (Clam 100)

Metallics CG20 Ground Clip size 10/12/14 Green Steel Zinc (Clam 100)

(No reviews yet) Write a Review

Model: CG20
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.50
$0.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Ground Clip size 10/12/14 Green Steel Zinc (Clam 100)

Manufacturer Resources

Product Specs

Division:
Electrical H1
Pack Type:
Clamshell
Product Family:
Connectivity
Product Group:
Hardware
Sub Division:
Electrical-E H2
Department:
Electrical
Product Subgroup:
Straps and Clips

Metallics CG20 – Frequently Asked Questions

1) What wire sizes does the Metallics CG20 ground clip take?
The CG20 ground clip is sized for 10, 12, and 14 AWG ground wire, which covers the bare copper grounds pulled with standard 15 and 20 amp branch circuits.
2) How does the CG20 ground clip attach to a metal outlet box?

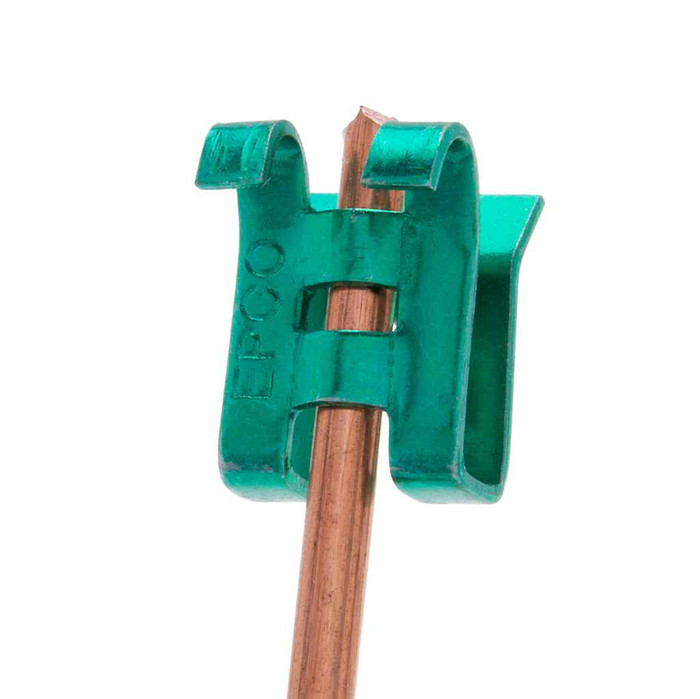

It is a spring steel clip that slides over the lip of a metal device box and pinches the bare ground wire against the box, bonding the box without a green screw or a tapped hole. Push the clip on over the wire with pliers or a screwdriver so the wire is trapped between the clip and the box edge.
3) Ground clip or green grounding screw for bonding a metal box?
A 10-32 green grounding screw needs a tapped hole in the box; the CG20 clip does not, so it is faster on boxes with no ground screw hole or when the hole is already used. The screw is the better choice when you need a removable, re-torquable connection or the box lip is obstructed.
4) Will a CG20 ground clip work on a plastic or nonmetallic device box?
No. The clip bonds by clamping onto the metal edge of a steel or cast box. Nonmetallic boxes are not bonded at all, so the ground wires are simply spliced and pigtailed to the device instead.
5) Is the Metallics CG20 ground clip corrosion protected?
It is steel with a zinc plating, which is the usual finish for indoor dry-location box bonding. The green coloring marks it as grounding hardware.
6) How are Metallics CG20 ground clips packaged for a truck stock or MRO shelf?
They come 100 to a clamshell pack, which is a convenient count for a service van or a maintenance crib where you are bonding boxes a few at a time.
