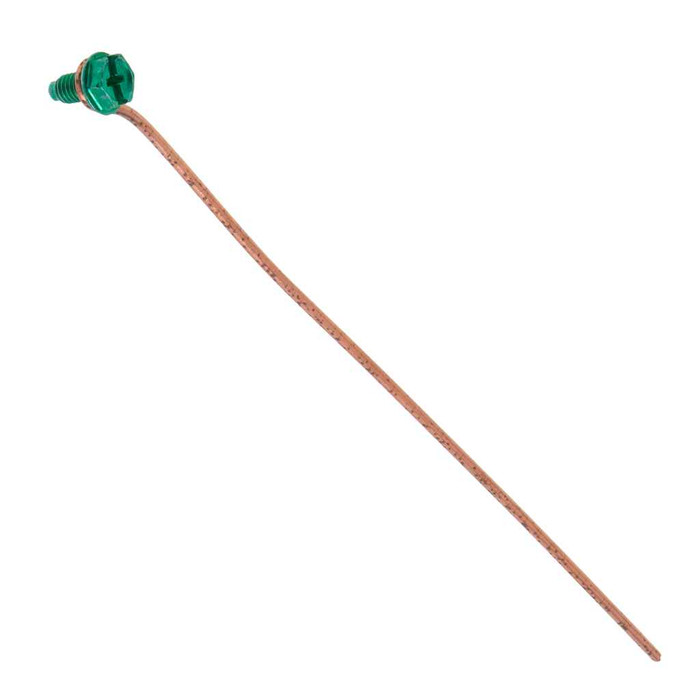

Ground Pigtail 7" #12 Solid Bare Copper (Box 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Box
- Product Family:
- Connectivity
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
Metallics PT40B – Frequently Asked Questions
1) What exactly is a Metallics PT40B ground pigtail and what is it used for?
The PT40B is a 7 inch length of #12 solid bare copper wire used as a grounding pigtail. In a metal box, you land one end on the box or device ground and splice the other end into the branch circuit equipment grounding conductors with a wire nut or push-in connector, so the receptacle or switch gets its own ground lead without cutting into the run. Sold 100 pieces to a box.
2) Do these ground pigtails come with a screw or a ring terminal attached?
No. The PT40B is plain #12 solid bare copper cut to 7 inches, with no green grounding screw, clip, or crimped ring terminal on either end. If you want a pigtail with the grounding screw already fitted, or a ground clip for the box, that is a separate item you need to order alongside these.
3) Is 7 inches long enough for a ground pigtail in a standard device box?
For a typical single gang box, yes. The PT40B gives 7 inches of #12 copper, which leaves enough free conductor to reach out past the box face for the splice and still fold back behind the device once the receptacle is set. Deep boxes stacked several gangs wide or pigtails that have to travel across a large junction box are where a 7 inch leg gets tight.
4) Is the PT40B insulated or bare wire?
Bare. There is no green insulation on the PT40B, it is solid bare copper, which is what the equipment grounding conductor is permitted to be. If your specification calls for a green insulated ground pigtail, this is not that part.
5) Why buy pre-cut ground pigtails instead of cutting scrap wire on site?
Time and consistency. For an electrician trimming out dozens or hundreds of devices, pulling a uniform 7 inch #12 copper leg out of a box of 100 is faster than measuring and stripping scrap, and every device ends up with the same length of free conductor. It also keeps bare copper on the truck when the job is wired in a cable assembly you would otherwise have to strip down for ground wire.
6) Is PT40B the part number to order, and how does it ship?
PT40B is the Metallics manufacturer part number, and it is the only configuration, so there is no length or gauge to pick. It ships as a box of 100 pigtails, meaning one box covers 100 device grounds.
7) Will a solid #12 pigtail work with push-in wire connectors and standard wire nuts?
Yes. Solid #12 copper is within the range of common twist-on wire nuts and push-in lever or stab connectors rated for #12 solid, and solid wire is easier to seat in a push-in connector than stranded. Strip the pigtail back to the connector manufacturer's strip gauge before inserting.
