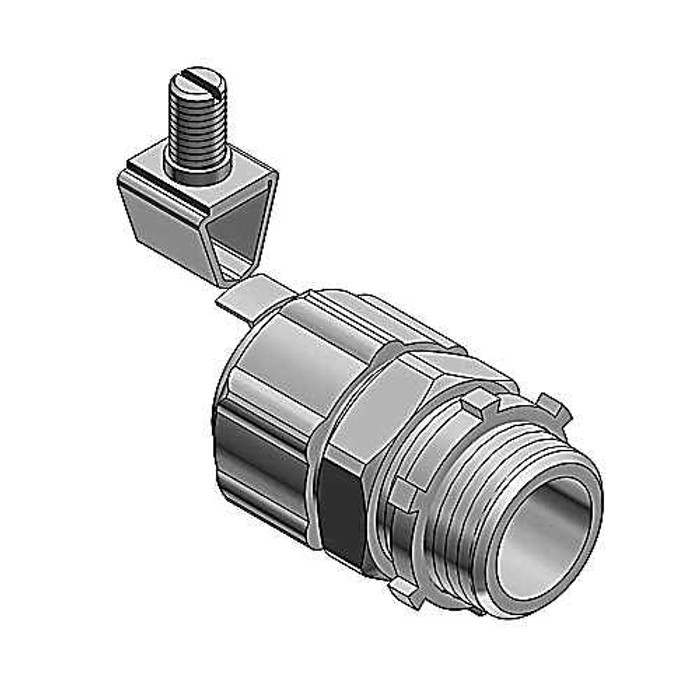

Grounding Connectors-Straight
5237GR - spec sheet
Features
- Ability to install quickly with low torque effort
5237GR - spec sheet
Manufacturer Resources
Product Specs
- Approved In Combination With Protective Conduit Csa:
- Y
- Approved In Combination With Protective Conduit Ul:
- Y
- Connection Type Screw Connection To Housing:
- Thread
- Construction Type:
- External thread
- Etim:
- EC001180 Screw connection for protective metallic hose
- Finish:
- Electro Zinc Plated/Chromate Coating
- Material:
- Steel
- Material Housing:
- Steel
- Model:
- Straight
- Nominal Size In Inch:
- 2 inch
- One Piece:
- N
- Outer Dimensions Inches :
- 10.3x4.2x7.5
- Outer Quantity:
- 5
- Product Group:
- Connectors
- Revolving Thread:
- N
- Standard:
- UL E3060, CSA
- Thread Connection Size:
- Other
- Thread Type:
- NPT
- Type:
- Grounding Connectors-Straight
- Unspsc:
- 39121420 Liquid tight connectors
- Weight Uom:
- 179.5 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Electrical Connectors
- Product Type:
- Grounding Connectors-Straight
