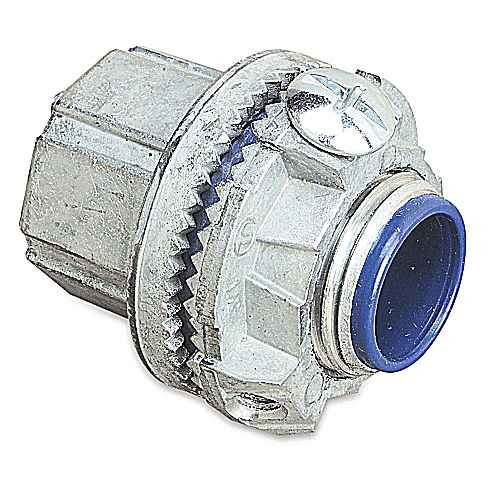

Grounding Hub
H075GRSST - spec sheet
Features
- Suitable for hazardous locations use in Class I, Division 2; Class II, Division 1&2; Class III, Division 1 & 2 per NEC 501-4(b); 502-4 (a) and 503-3 (a)
- Meets NEMA sealing requirements for NEMA 3R, 4, 4X and 13 enclosures
- Suitable for hazardous locations use in Class II, Groups E, F, G & Class III locations per CEC 18-202; 18-252; 18-302; 18-352.
H075GRSST - spec sheet
Manufacturer Resources
Product Specs
- Connection Type Screw Connection To Housing:
- Thread
- Etim:
- EC001180 Screw connection for protective metallic hose
- Inner Dimensions Inches :
- 8x5x4
- Inner Quantity:
- 25
- Material:
- 316 Stainless Steel
- Material Housing:
- Stainless steel
- Nominal Size In Inch:
- 3/4 inch
- Outer Dimensions Inches :
- 16.6x10.5x4.5
- Outer Quantity:
- 100
- Outside Diameter:
- 1.44 Inch
- Product Group:
- Grounding
- Revolving Thread:
- N
- Standard:
- UL E23018, CSA
- Thread Type:
- NPT
- Trade Size:
- 3/4 Inch
- Unspsc:
- 39131707 Electrical conduit coupling
- Weight Uom:
- 35 lbs. per 100
- Department:
- Electrical
- Product Subgroup:
- Grounding Devices
- Product Type:
- Grounding Hub
- Product Model:
- Straight
- Product Length:
- 1.59 in
- Product Details:
- Grounding Hub
