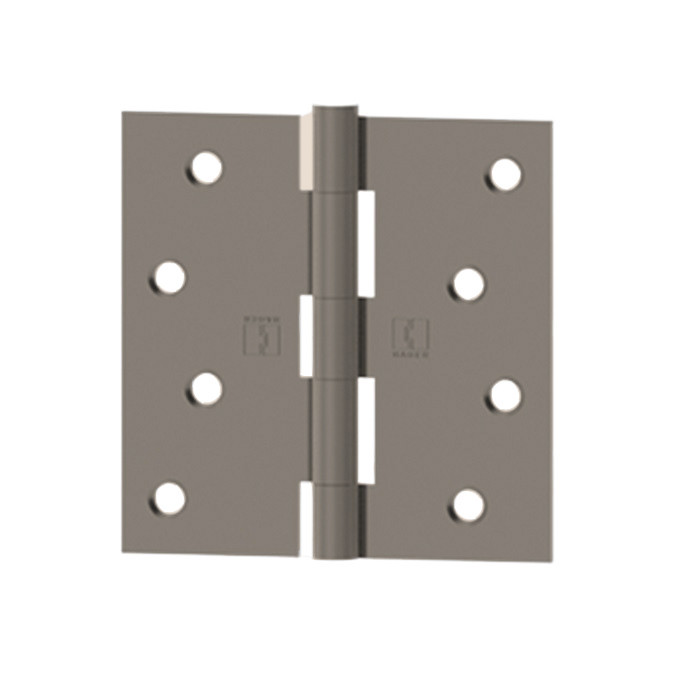

Hager 1541 Full Mortise Plain Bearing Residential Hinge with Stainless Steel Construction and 5 Knuckle Design

Hager 1541 Full Mortise Plain Bearing Residential Hinge with Stainless Steel Construction and 5 Knuckle Design

(No reviews yet) Write a Review

Model: 1541 3-1/2X3-1/2 US15
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 1541 Full Mortise Plain Bearing Residential Hinge with Stainless Steel Construction and 5 Knuckle Design

Professional Residential Door Hardware Solution

The Hager 1541 Full Mortise Plain Bearing Residential Hinge delivers reliable performance for residential door applications with stainless steel construction and 5 knuckle design. This reversible hinge features square corners and removable pin design with 0.085" gauge construction and 0.234" pin diameter. Available in brass with brass pin or stainless steel with stainless steel pin configurations, meeting ANSI A2133 and A5133 certification standards for residential use.

Professional Features & Benefits

  • Heavy-Duty Construction: 0.085" gauge material with brass or stainless steel construction provides exceptional durability for residential applications.
  • 5 Knuckle Design: Five knuckle configuration with 0.234" pin diameter ensures smooth operation and enhanced load distribution.
  • Reversible Installation: Square corners and reversible design allows flexible installation for left or right-hand door applications.
  • Removable Pin Feature: Removable pin design enables easy door removal for maintenance or replacement without disturbing frame installation.
  • ANSI Certified Performance: Meets ANSI A2133 (Brass) and A5133 (Stainless Steel) standards for reliable residential door hardware performance.
  • Complete Installation Package: Supplied as 2 pack with 3/4" x 9" FH fasteners for immediate installation readiness.
  • Plain Bearing Operation: Plain bearing design provides smooth door operation while meeting Light Weight requirements of ANSI A156.1.
  • Reversible. Square corners. Removable pin.

Technical Specifications

  • ANSI/BHMA: ANSI A2133 (Brass), ANSI A5133 (Stainless Steel)
  • Bearing Type: Plain Bearing
  • Case Quantity: 50 each 4'0", 100 each 3.5", 100 each 3'0"
  • Certifications: ANSI A2134 (Brass)
  • Commercial/Residential: Residential
  • Fastener Size - Wood: 3/4" x 9" FH
  • Fasteners: 3/4" x 9" FH
  • Features: Reversible, Square corners, Removable pin
  • Finishes: US3, US10R, US15, US32, US32D
  • Gauge: 0.085"
  • Knuckles: 5
  • Material: Brass with brass pin, or stainless steel with stainless steel pin
  • Notes
  • Subcategory: Full Mortise Hinges

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Residential Entry Doors
  • Interior Passage Doors
  • Bedroom and Bathroom Doors
  • Closet and Utility Room Doors
  • Multi-Family Housing Units
  • Apartment and Condominium Buildings
  • Single-Family Home Construction

Why Choose Hager Quality?

Hager residential hinges deliver professional-grade reliability with 0.085" gauge construction and ANSI certified performance standards. The 5 knuckle design with removable pin feature provides enhanced durability and serviceability for demanding residential applications. Engineered to meet Light Weight requirements of ANSI A156.1 while providing smooth, dependable door operation for years of reliable service.

Product Specs

Knuckles:
5
Subcategory:
Full Mortise Hinges
Fasteners:
3/4" x 9" FH
Product Group:
Door Hinges and Pivots
Product Subgroup:
Full Mortise Hinges
Product Type:
Full Mortise Hinges
ANSI/BHMA:
ANSI A2133 (Brass), ANSI A5133 (Stainless Steel)
Bearing Type:
Plain Bearing
Commercial/Residential:
Residential
Features:
Reversible, Square corners, Removable pin
Product Model:
1541
Product Function:
Plain Bearing
Product Substrate:
Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Hager 1541 3-1/2X3-1/2 US15 – Frequently Asked Questions

1) Do I need to order a left hand and right hand version of the Hager 1541?
No. The 1541 is reversible, so one hinge works on a left or right hand door. Order by size and finish only.
2) Will the Hager 1541 fit a door prepped with radius corner hinge pockets?
No. The 1541 has square corners, so it needs a square corner mortise, the kind you get when the pocket is chiseled by hand or routed with a square corner template. If your existing doors and frames were machined with a 1/4 inch or 5/8 inch radius router, a square corner hinge will leave gaps at the corners of the pocket and won't sit flush.
3) Is a plain bearing hinge like the Hager 1541 good enough for an apartment unit door that gets heavy use?
Plain bearing means the knuckles ride directly on each other with no bearing race, and the 1541 is certified to the light weight requirements of ANSI A156.1. It handles interior unit doors, bedrooms and closets. For a corridor entry door in multifamily, especially one with a closer or a solid core slab, step up to a bearing hinge, for example the McKinney TCA2314 standard duty 5 knuckle full mortise or the BEST 1900R. For an entry that sees real abuse, the McKinney TCA3386 is a heavy weight version.
4) How thick is the Hager 1541 hinge leaf, and will it swap for the builder hinges already on my doors?
The leaf is 0.085 inch gauge with a 0.234 inch pin and five knuckles. That's heavier than the thin builder-grade hinges on a lot of tract housing, so check that your existing mortise is deep enough to take the leaf flush. If the door was prepped for a standard 3-1/2 or 4 inch square corner residential hinge, the 1541 drops in with the same screw pattern once you match leaf height and corner type.
5) The Hager 1541 is residential grade - what do I use on a commercial opening instead?
The 1541 is catalogued for residential use with plain bearing operation. For commercial openings, concealed bearing architectural hinges are the usual swap: the BEST 1900R is a steel full mortise concealed bearing standard weight hinge with a removable pin at medium duty, and the Stanley Security CB1960R is a full mortise concealed bearing standard weight hinge, also medium duty. For a heavy weight commercial opening, the Stanley Security CB199 is a full mortise concealed bearing heavy weight hinge. All three keep the full mortise leaf pattern the 1541 uses.
6) I need an electrified hinge for a door with an access control lock - can the Hager 1541 do that?
The Hager 1541 is a plain bearing full mortise hinge with a removable pin and no electrical provision. For power transfer through the hinge, the ACSI 5BB1 is a 5 knuckle ball bearing full mortise hinge at 4-1/2 x 4-1/2 with a concealed electric through-wire in a 4 wire 28 gauge configuration. That requires a wire path drilled through both the door and the frame, which a standard 1541 opening will not have.
7) What is a ball bearing alternative to the Hager 1541 hinge for a higher traffic door?
The Hager 1541 is a plain bearing full mortise hinge in 3.5 x 3.5 and 4 x 4 sizes, intended for residential openings. If the opening sees heavier or more frequent use, a ball bearing hinge is the usual move. The Don-Jo BB74545 is a full mortise ball bearing hinge in 4-1/2 x 4-1/2 steel with square corners and a 5 knuckle barrel, and the Don-Jo BB94545 is the stainless steel version of the same 4-1/2 x 4-1/2 square corner hinge. Both are larger leaf sizes than the 1541, so the door and frame mortises must be cut or already prepped for 4-1/2 inch leaves.
8) I need a stainless steel hinge but heavier duty than the Hager 1541 - what should I look at?
The Hager 1541 is offered in brass with stainless pin or stainless steel with stainless pin, with 630 satin stainless and 629 bright stainless among its finishes, but it is a plain bearing residential hinge. For a stainless hinge rated heavy duty, the BEST CB223 is a stainless steel concealed bearing heavy weight hinge built for beveled edge doors. The Don-Jo BB94545 is a stainless steel full mortise ball bearing hinge at standard duty, sitting between the two.
9) Which hinges look similar to the Hager 1541 but will not drop into the same prep?
Several square corner full mortise hinges share the 5 knuckle look of the Hager 1541 without matching its prep. The BEST CB248 is a swing clear hinge, which throws the door leaf clear of the opening rather than hanging it flush, and is cut for square edge doors. The BEST CB223 and BEST FBB212 are pivot reinforced hinges, a different leaf pattern for heavy doors. The ACSI 5BB1 carries a concealed electric through-wire, which requires a wire raceway in the door and frame that a standard 1541 opening does not have. Check leaf size as well, since the 1541 covers 3.5 x 3.5 and 4 x 4 while many of these peers are 4-1/2 inch leaves.
10) What sizes and finishes does the Hager 1541 hinge come in?
Two sizes, 3-1/2 x 3-1/2 inch and 4 x 4 inch, each in five finishes: 605 bright brass, 619 satin nickel, 629 bright stainless, 630 satin stainless and US10R dark bronze. The 3-1/2 inch size is the usual interior passage size and the 4 inch is what most residential entry doors take. If you're matching existing openings, measure the leaf height of the hinge you're pulling off, not the door.
11) Can I pull the door off without unscrewing the Hager 1541 hinges?
Yes. The 1541 uses a removable pin, so you tap the pin out and lift the door off with both leaves still screwed to the door and frame. That's what you want when you're painting, moving appliances in, or swapping a door in an occupied unit. Note that a removable pin hinge on an out-swinging exterior door leaves the pin accessible from outside, so use a non-removable pin or security stud hinge there.
12) Do the Hager 1541 hinges come with screws?
Yes, wood screws are supplied: 3/4 inch x #9 flat head. Those are fine biting into a solid wood jamb and door stile. For a heavy entry door or a jamb where the screws are pulling out, run one longer screw per leaf into the framing behind the jamb instead of the supplied 3/4 inch.
13) Brass or stainless steel Hager 1541, which should I pick?
It comes as brass with a pin, or stainless with a stainless pin. Stainless is the one for exterior doors, coastal or humid buildings, and anywhere corrosion is a concern; 629 and 630 are the stainless finishes. The brass versions carry the decorative finishes, 605 bright brass, 619 satin nickel and US10R dark bronze, and are aimed at interior doors where matching the lockset finish is the point.
14) Is the McKinney TCA2314 a direct replacement for a Hager 1541?
Not a direct one. The McKinney TCA2314 shares the square corner 5 knuckle full mortise pattern with the Hager 1541, but it is a 4-1/2 by 4-1/2 inch hinge at standard duty, while the 1541 is built in 3.5 x 3.5 and 4 x 4 leaf sizes as a plain bearing residential hinge. The larger leaf will not sit in an existing 3.5 or 4 inch mortise without recutting. McKinney TCA2317 is the same 4-1/2 by 4-1/2 square corner 5 knuckle standard duty pattern, and the TCA3386 is the heavy weight version at the same leaf size.
15) I want a brass hinge for an apartment turn - how does the Hager 1541 compare to the Don-Jo BB84545?
The Hager 1541 is available in brass with a stainless pin and carries finishes including 605 bright brass, US10R dark bronze and 619 satin nickel, using plain bearing operation with a removable pin in 3.5 x 3.5 and 4 x 4 sizes. The Don-Jo BB84545 is a brass full mortise ball bearing hinge at 4-1/2 x 4-1/2 in satin chrome, standard duty. The choice comes down to leaf size matching the existing mortise and whether the opening wants plain or ball bearing.
16) Is there a ball bearing hinge with a narrower leaf than 4-1/2 inches square?
Among the ball bearing options, the Don-Jo BB74540 is a full mortise ball bearing hinge at 4-1/2 inch by 4 inch in satin chrome, standard duty - a narrower leaf than the 4-1/2 x 4-1/2 BB74545. It is still taller than the Hager 1541, which is built in 3.5 x 3.5 and 4 x 4, so confirm the frame rabbet height before ordering.
