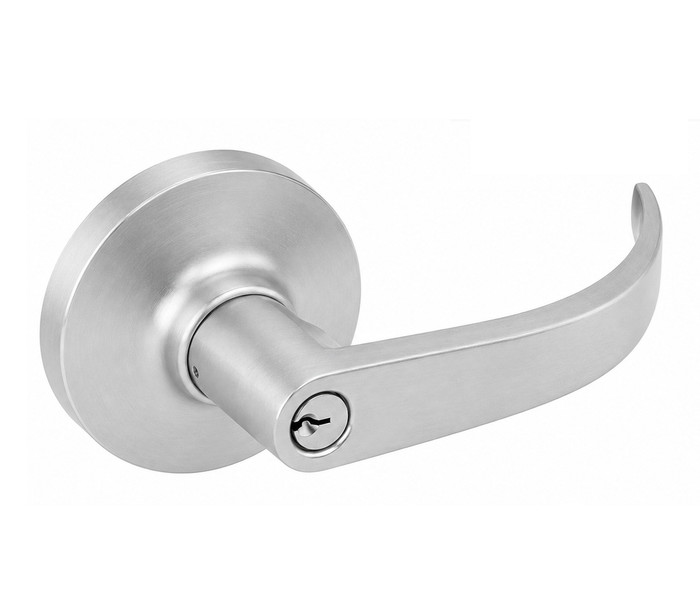

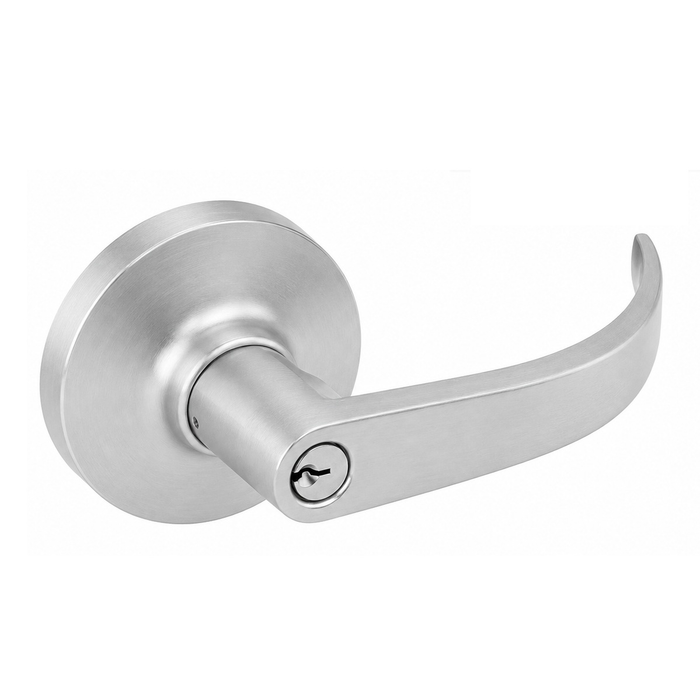

Hager 2500 Series KD Grade 2 Cylindrical Lock with Withnell Lever

Hager 2500 Series KD Grade 2 Cylindrical Lock with Withnell Lever

(No reviews yet) Write a Review

Model: 2517 WTN 26D
$77.56
$44.88
Selected Finish is
Selected Handle Design Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$77.56
$44.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 2500 Series KD Grade 2 Cylindrical Lock with Withnell Lever

Professional Commercial-Grade Cylindrical Lock Solution

The Hager 2500 Series KD Cylindrical Lock delivers reliable standard duty commercial performance with Grade 2 BHMA A156.2 certification. Designed for door thickness ranging from 1-3/8" to 2" (35 mm - 51 mm) with standard 2-3/4" (70 mm) backset, this non-handed lock features wrought brass, bronze, and stainless steel exposed trim construction. UL/cUL Listed for up to 3 hours "A" label single doors and UL10C Positive Pressure Rated for fire-rated applications.

Professional Features & Benefits

  • Door Compatibility: Accommodates door thickness from 1-3/8" to 2" (35 mm - 51 mm) with standard 2-3/4" (70 mm) backset for versatile installation options.
  • Grade 2 Certification: Meets BHMA A156.2 Grade 2 test standards for reliable commercial duty performance and durability.
  • Fire Rating Compliance: UL/cUL Listed for all functions up to 3 hours "A" label single doors and UL10C Positive Pressure Rated for fire-rated door applications.
  • Heavy-Duty Construction: Wrought brass, bronze, and stainless steel exposed trim with zinc-based lever plated to match BHMA symbols for long-lasting durability.
  • Deadlocking Security: 1/2" (13 mm) throw stainless steel latchbolt with deadlocking feature prevents manipulation when door is closed on keyed functions.
  • ADA Compliance: Meets ANSI A117.1 Accessibility Code requirements for barrier-free access applications.
  • Professional Installation: No exposed mounting screws and non-handed design simplifies installation and provides clean finished appearance.
  • Flexible Keying Options: Standard Keyed Different with Schlage C keyway, 6 pin cylinder drilled and keyed 5 pin standard, with optional SFIC cores and alternative keyways available.
  • No exposed mounting screws
  • Non-handed

Technical Specifications

  • Applications: Standard duty commercial Backsets 2-3/4" (70 mm) standard Certifications ADACompliant ANSIA117.1 Accessibility Code UL/cULListed for all functions up to 3 hours "A" label single doors UL10CPositive Pressure Rated Meets BHMAA156.2 Grade 2 test standards Cylinders/Cores Keyed Different - standard Cylinder drilled 6 pin, Keyed 5 pin - standard Other Keying options, including 6 pin keyed, available from factory Zero bit cylinders will be 6 pin keyed SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately Door Thickness 1-3/8" -2" (35 mm -51 mm) Exposed Trim Wrought brass, bronze, and stainless steel Lever is zinc based, plated to match BHMA symbols Features No exposed mounting screws Non-handed Finishes US3, US10B, US26D and BLKFunctions Dummy Offic Classroom Keys Two operating keys supplied per lock Keyway Schlage C - Standard, other keyways optional Latchbolt Type 1/2" (13 mm) throw, stainless steel 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" backset Deadlocking latchbolt prevents manipulation when door is closed; keyed functions only Lever Options Withnell
  • Backsets: 2-3/4" (70 mm) standard
  • Certifications: ADA Compliant ANSI A117.1 Accessibility Code; UL/cUL Listed for all functions up to 3 hours "A" label single doors; UL10CPositive Pressure Rated; Meets BHMA A156.2 Grade 2 test standards
  • Cylinder and Keyways: Keyed Different - standard; Cylinder drilled 6 pin, Keyed 5 pin - standard; Other Keying options, including 6 pin keyed, available from factory; Zero bit cylinders will be 6 pin keyed; SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
  • Door Thickness: 1-3/8" - 2" (35 mm - 51 mm)
  • Exposed Trim: Wrought brass, bronze, and stainless steel; Lever is zinc based, plated to match BHMA symbols
  • Features: No exposed mounting screws; Non-handed
  • Finishes: US3, US10B, US26D and BLK
  • Functions: Dummy; Offic; Classroom
  • Keys: Two operating keys supplied per lock
  • Latchbolt: Type
  • Lever Options: Withnell
  • Subcategory: Cylindrical Locks

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/8" to 2"), backset (2-3/4" standard), and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager 2500 Series cylindrical locks deliver professional-grade reliability with wrought brass, bronze, and stainless steel construction meeting BHMA A156.2 Grade 2 test standards. UL/cUL Listed for up to 3 hours fire rating and UL10C Positive Pressure certification ensure code compliance for demanding commercial applications. Engineered for standard duty commercial use where dependable performance and ADA compliance are essential.

Hager's Roton® continuous geared hinge distributes door weight along the full hinge length, minimizing lateral wear in high-traffic applications.

Product Specs

Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Cylindrical Locks
Subcategory:
Cylindrical Locks
Department:
Door Hardware

Hager 2517 WTN 26D – Frequently Asked Questions

1) Will the Hager 2500 Series cylindrical lock fit a 1-3/4 inch commercial door?
Yes. The Hager 2500 Series lever lock covers door thicknesses from 1-3/8 inches to 2 inches (35 mm to 51 mm), so the standard 1-3/4 inch commercial door sits right in the middle of the range. It uses the standard 2-3/4 inch (70 mm) backset. Older 1-3/8 inch interior wood doors are covered too, with no extra kit.
2) Do I have to specify handing when ordering a Hager 2500 lever lock?
No. The 2500 Series is non-handed, so one lock works on a left or right hand opening and you reverse the lever in the field. That also makes it easier to stock a single part number across a building. There are no exposed mounting screws on the finished install.
3) Will the Hager 2500 latch drop into my existing strike?
The latchbolt has a 1/2 inch (13 mm) throw in stainless steel, with a 1-1/8 inch x 2-1/4 inch (29 mm x 57 mm) faceplate on the 2-3/4 inch backset latch. A 2-3/8 inch backset latch uses a 1 inch x 2-1/4 inch (25 mm x 57 mm) faceplate. If your existing prep was cut for a standard cylindrical latch of the same backset and faceplate size, it drops in; if the old face was a 1 inch x 2-1/4 inch and you order the 2-3/4 backset, you will be widening the mortise for the face.
4) Is the Hager 2500 lock approved for a fire rated door?
It is UL/cUL Listed for all functions up to 3 hours on "A" label single doors, and UL10C Positive Pressure Rated. The keyed functions also use a deadlocking latchbolt, which resists manipulation once the door is closed.
5) Which functions does the Hager 2500 Series lever lock come in?
Four: Single Dummy, Office, Entry, and Classroom. Dummy is pull-only trim with no latch, Office lets you lock the outside lever from the inside, Entry is a keyed passage lock, and Classroom is keyed from the outside only with the inside lever always free for egress. All four are offered with either the Withnell or the Archer lever.
6) Can I use the Hager 2500 with my building's small format interchangeable core system?
Yes, order the SFIC Prep, Less Core version. It ships prepped for a small format interchangeable core with no core included, so you install your own brass 6 pin or 7 pin core, uncombinated or combinated. The Standard cylinder version instead comes keyed different on a Schlage C keyway, drilled 6 pin and keyed 5 pin, with two operating keys per lock. Other keyways and 6 pin keying are factory options.
7) What is a Grade 1 alternative to the Hager 2500 Series entry lever for a high-traffic opening?
The Hager 2500 Series is built to BHMA A156.2 Grade 2 and fits doors 1-3/8 inch to 2 inch with a 2-3/4 inch backset. If the spec calls for Grade 1 on an entrance opening, the Dorma C853 is a Grade 1 entry keyed single cylinder lever lockset in the C800 Series covering 1-3/8 inch to 2-1/4 inch doors, and the Marks USA 195RAB is a Grade 1 Survivor Series entry clutched lever supplied less core.
8) I ordered the Hager 2500 Series SFIC prep less core - what other SFIC storeroom lever can I standardize on?
The Hager 2500 Series is available with SFIC prep less core, with brass 6 pin or 7 pin cores sold separately. The Marks USA 175RF SFIC is a Grade 2 storeroom clutched lever also supplied small format IC less core, with a 2-3/4 inch backset and ANSI strike matching the Hager's standard backset. The Marks 195RAB is the Grade 1 entry version, also less core.
9) My door is thicker than 2 inches - what cylindrical lever works where the Hager 2500 Series does not?
The Hager 2500 Series is rated for door thickness of 1-3/8 inch to 2 inch. For a thicker leaf, the Dorma C150 Grade 1 heavy-duty entry/office cylindrical lock and the Dorma C853 Grade 1 entrance lever both cover 1-3/8 inch to 2-1/4 inch. The SDC E75 Series electronic cylindrical lockset covers 1-3/4 inch to 2-1/8 inch if keypad access is acceptable.
10) Is the Marks USA 110AB a substitute for the Hager 2500 Series office function lock?
They serve a similar function but prep differently. The Marks USA 110AB is a Grade 2 entrance/office lockset with a round knob and a 2-3/8 inch backset in satin stainless steel. The Hager 2500 Series is a lever design in Withnell or Archer with a 2-3/4 inch backset as standard, and it is ADA compliant to ANSI A117.1. If the door is bored for 2-3/4 inch, the 110AB's 2-3/8 inch backset will not line up without a different latch.
11) Is a Grade 2 cylindrical lock enough for a school corridor, or should I go Grade 1?
The Hager 2500 meets BHMA A156.2 Grade 2, which is standard duty commercial. It suits offices, retail, multi-tenant residential and moderate traffic classroom doors. For a high abuse opening, ZenSupply carries Grade 1 mechanical options such as the Marks USA 195RAB Survivor Series entry lever or the Dorma C853 entry lever, and the Cal-Royal CAL20 privacy and CAL30 passage locks in the Calypso Series. The Dorma C853 covers 1-3/8 inch to 2-1/4 inch doors, slightly thicker than the Hager's 2 inch maximum.
12) Does the Hager 2500 lever meet ADA requirements?
Yes. The lever trim is ADA compliant to the ANSI A117.1 Accessibility Code, so it operates without tight grasping or twisting of the wrist. If you need the same on a Grade 1 lock, the Marks USA 195N passage lever is also listed as ADA compliant.
13) I need a dummy lever to match my keyed doors. Does Hager offer one in this series?
Yes, the Single Dummy is one of the four functions in the 2500 Series and it can be ordered with the same Withnell or Archer lever and 626 satin chrome finish as the keyed openings, so the pull side of a pair matches. Being dummy trim, it has no latch and no strike prep. Comparable dummy trim from other brands includes the Dorma C501 and the Orca Hardware OCL2170 half dummy lever, both Grade 2.
14) Is there an electronic version of this Hager lock for keypad or credential access?
The 2500 Series is a mechanical key operated lockset, not electronic. For keypad or credential access in the same cylindrical bored prep, ZenSupply carries the Alarm Lock Trilogy DL2700 (Grade 1, IC/SFIC compatible, 1-5/8 to 1-7/8 inch doors), the TownSteel XCE-2000 keypad lockset (1-3/4 to 2 inch doors), and the Schlage NDEB ENGAGE wireless lock (1-5/8 to 2 inch doors). Watch the thickness ranges, they are narrower than the Hager's 1-3/8 to 2 inches.
15) Can I key the Hager 2500 into my existing Schlage C master key system?
The standard cylinder ships on the Schlage C keyway, drilled 6 pin and keyed 5 pin, supplied keyed different with two operating keys per lock. Because it is keyed different from the factory, a locksmith will need to re-pin it into your existing system, or you can specify other keying options including 6 pin keyed from the factory. Zero bit cylinders are supplied 6 pin keyed.
16) I need a passage latch to match the Hager 2500 Series levers on the same corridor - what pairs with it?
The Hager 2500 Series is keyed different with a Schlage C keyway and does not include a passage function. For non-latching or free-swinging openings alongside it, the Orca Hardware OCL210 is a Grade 2 medium duty passage cylindrical lockset, the Cal-Royal CAL30 is a Grade 1 passage lock for 1-3/8 inch to 2 inch doors, and the Marks USA 195N is a Grade 1 Survivor Series passage lever that is ADA compliant like the Hager.
17) What is the closest Grade 2 equivalent to the Hager 2500 Series single dummy lever?
The Hager 2500 Series single dummy is a non-handed trim with no exposed mounting screws. Comparable Grade 2 dummy trims include the Dorma C501 single dummy keyless lever lockset for 1-3/8 inch to 1-3/4 inch doors, the Dorma CL701 Grade 2 single dummy non-keyed lever, and the Orca Hardware OCL2170 Grade 2 half dummy lever. Note the C501 tops out at 1-3/4 inch where the Hager goes to 2 inch.
18) Which cylindrical locks besides the Hager 2500 Series use a Schlage C keyway so my master key system stays intact?
The Hager 2500 Series ships keyed different with a Schlage C keyway, cylinder drilled 6 pin and keyed 5 pin. The Stanley Security QCL200 Series is also supplied keyed different with an SC keyway and comes with a 118F ANSI 1-1/8 inch by 2-3/4 inch strike, so it can be brought into the same key system without a keyway change.
19) What keyless mechanical option replaces the Hager 2500 Series where I do not want to issue keys?
The Hager 2500 Series supplies two operating keys per lock on keyed functions. For a keyless opening, the Lockey 1600 heavy duty mechanical keyless knob lock has an adjustable backset and covers 1-1/8 inch to 2 inch doors, and the Lockey 2830 mechanical pushbutton keyless knob lock offers an auto-locking passage function over the same 1-1/8 inch to 2 inch range. Both are knob designs rather than levers, so they do not carry the ADA lever geometry of the Hager.
20) The Hager 2500 Series is UL fire rated - which electronic cylindrical locks are the comparable Grade 1 access control choices?
The Hager 2500 Series is UL/cUL Listed for all functions up to 3 hours on A label single doors and UL10C positive pressure rated at Grade 2. If the project wants credential access at Grade 1 instead, the Schlage NDEB ENGAGE Series is a Grade 1 heavy duty wireless Bluetooth cylindrical lock for 1-5/8 inch to 2 inch doors with storeroom, office, privacy and apartment functions, and the Alarm Lock Trilogy T2 DL2700 is a Grade 1 standalone keypad entrance lock for 1-5/8 inch to 1-7/8 inch doors that is IC/SFIC compatible.
21) How does the Stanley QCL150 entry lever compare with the Hager 2500 Series entry function?
Both are Grade 2 entrance levers on a 2-3/4 inch backset. The Stanley QCL150 is a Sierra bent lever with rose supplied less cylinder and ships with a 4-7/8 inch by 1-1/4 inch ASA strike. The Hager 2500 Series entry is offered with a standard cylinder keyed different on Schlage C or as SFIC prep less core, with Withnell or Archer lever designs and a 1-1/8 inch by 2-1/4 inch faceplate on the 2-3/4 inch backset latch.
