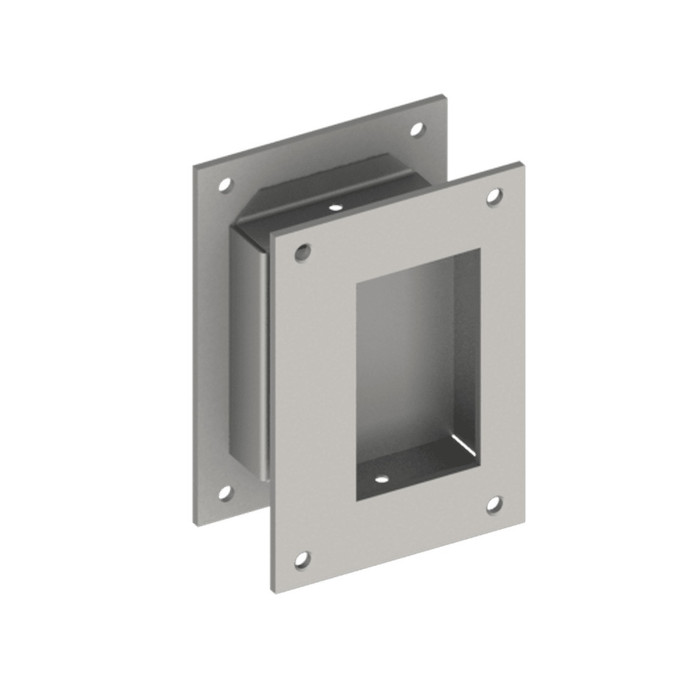

Hager 25N Flush Pull Set with 3-1/2" x 5" Face and 1/8" Projection

Professional Flush-Mounted Door Pull Solution

The Hager 25N Flush Pull Set provides a sleek, recessed door pull solution with a 3-1/2" x 5" face dimension and minimal 1/8" projection. This set consists of two 15N pulls mounted back to back, designed for standard 1-3/4" door thickness with a 3/4" cup depth. The opening measures 1-3/4" x 3-1/16" and meets ANSI A156.6 for J403 pulls certification for professional applications.

Professional Features & Benefits

  • Precise Dimensions: 3-1/2" x 5" face with 1-3/4" x 3-1/16" opening provides optimal grip area while maintaining minimal 1/8" projection for flush installation.
  • Standard Door Compatibility: Designed for 1-3/4" door thickness with 3/4" cup clearance for versatile installation options.
  • ANSI Certified Performance: Meets ANSI A156.6 for J403 pulls ensuring compliance with professional door hardware standards.
  • Premium Material Options: Available in aluminum, brass, bronze, and stainless steel construction for durability and aesthetic flexibility.
  • Complete Hardware Set: Consists of two 15N pulls mounted back to back with included 6-32 OPHMS sex nuts and bolts for secure installation.
  • Multiple Finish Options: Available in US3, US4, US10, DBZ, US26, US26D, US28, and US32D finishes to match existing door hardware.
  • Professional Installation: Includes mounting template for precise installation and consistent results.

Technical Specifications

  • Certifications: Meets ANSI A156.6 for J403 pulls
  • Cup Clearance: 3/4" (19 mm)
  • Door Thickness: 1-3/4" (44 mm) standard
  • Fasteners: Two 6-32 OPHMS sex nuts and bolts
  • Finishes: US3, US4, US10, DBZ, US26, US26D, US28, US32D
  • Material: Aluminum, Brass, Bronze, Stainless Steel
  • Projection: 1/8" ( 3 mm)
  • Subcategory: Door Pulls, Push and Pull Plates

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager flush pull sets deliver professional-grade reliability with premium material construction in aluminum, brass, bronze, and stainless steel options. ANSI A156.6 certification ensures compliance with professional door hardware standards for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and aesthetic appeal are essential.

Manufacturer Resources

Template

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Pulls, Push and Pull Plates
Product Type:
Flush Pulls
Subcategory:
Door Pulls, Push and Pull Plates
Department:
Door Hardware

Hager 25N US26 – Frequently Asked Questions

1) Will the Hager 25N flush pull work on a 1-3/4 inch door?
That's exactly what the 25N is built for. The set is dimensioned around a standard 1-3/4 inch commercial door, with a 3/4 inch cup depth on each side and only 1/8 inch of projection off the face. Two 15N pulls mount back to back through the door and are drawn together with the supplied 6-32 sex nuts and bolts, so the through-bolt length assumes that 1-3/4 inch thickness. On a thinner 1-3/8 inch door the fasteners will stand proud and the two cups leave very little material between them.
2) What size cutout do I need to rout for a Hager 25N flush pull?
Two numbers matter on the prep. The face plate is 3-1/2 by 5 inches, and the through-opening is 1-3/4 by 3-1/16 inches, so that is the pocket you rout through the door. A mounting template ships with the set, and Hager publishes the 25N template as a PDF if the shop wants to lay out the prep before the hardware lands.
3) Is the Hager 25N one pull or a pair for both sides of the door?
It is a set: two 15N flush pulls mounted back to back, one on each face, plus the 6-32 OPHMS sex nuts and bolts that join them through the door. Order one 25N per opening, not two. If only one side of the door needs a pull, the 25N is more than you need.
4) Will a flush pull clear a pocket door or a door that swings past a wall?
Projection is the whole point here. The 25N stands just 1/8 inch off the door face, so it clears a pocket, a sliding track, or a door face that has to pass tight to an adjacent surface, which a bar or offset pull will not. The grip comes from the 3/4 inch deep cup recessed into the door rather than from anything sticking out.
5) What is a cross-brand alternative to the Hager 25N flush pull set?
The Trimco 1110 Series manual flush pulls cover the same manual flush pull function as the Hager 25N. The Hager 25N is a back-to-back pair of 15N pulls with a 3-1/2 inch by 5 inch face, 1/8 inch projection, 3/4 inch cup depth and a 1-3/4 inch by 3-1/16 inch opening, built for 1-3/4 inch doors and meeting ANSI A156.6 for J403 pulls. Confirm the Trimco 1110 face size and cup depth against the existing cutout before treating it as a drop-in, since a flush pull swap lives or dies on whether the mortise pocket already in the door matches.
6) What finishes does the Hager 25N flush pull come in?
Eight, and they cover the usual commercial ranges: 605 bright brass, 606 satin brass, 612 satin bronze, 613 satin bronze oil-rubbed, 625 bright chrome, 626 satin chrome, 628 satin aluminum, and 630 satin stainless steel. Matching a fleet of openings usually means 626 or 630 for chrome and stainless jobs, 613 where the rest of the building is oil-rubbed bronze.
7) Does the Hager 25N flush pull meet ANSI standards for commercial pulls?
It meets ANSI A156.6 for J403 pulls, which is the door trim standard a spec writer or facilities buyer will be looking for on a schedule. That is the citation to put on the submittal for the flush pull line item.
8) Do I need to buy screws or fasteners separately for the Hager 25N?
No extra hardware to order. Two 6-32 OPHMS sex nuts and bolts come with the set, which is what through-bolts the two pulls to each other across the door. A template is in the box as well. All the installer supplies is the router or hole saw work to cut the 1-3/4 by 3-1/16 inch opening.
9) What else could I use instead of the Hager 25N flush pull?
Trimco's 1110 Series manual flush pulls are the cross-brand alternative for the same job. Where the 25N is a fixed set of two 15N pulls at a 3-1/2 by 5 inch face for a 1-3/4 inch door, the 1110 is a series, so the face size and configuration are picked within that range. If the prep is already cut to the 25N's 1-3/4 by 3-1/16 inch opening, staying with the 25N avoids reworking the door.
10) Is the Hager 25N the same thing as a single flush pull?
No. The 25N is a set of two 15N pulls mounted back to back, so it dresses both faces of the door in one part number. A single-face manual flush pull, such as the Trimco 1110 Series, addresses one side of the opening. On a pocket or bypass door that is pulled from both sides, the back-to-back 25N set is what fills both cutouts; on a door pulled from one face only, a single pull is the matching part.
11) If the door is not 1-3/4 inch thick, is the Hager 25N still the right pull?
The Hager 25N is dimensioned for 1-3/4 inch door thickness with 3/4 inch cup clearance, and its two 15N cups are joined with 6-32 sex nuts and bolts sized to that stack. On a thinner leaf, two cups at 3/4 inch depth each leave very little material between them, so a single-face manual flush pull such as the Trimco 1110 Series is the safer direction. Verify the Trimco 1110 cup depth against the leaf thickness you actually have.
12) Which material should I pick for a flush pull in a healthcare or high-traffic corridor?
The 25N is made in aluminum, brass, bronze, and stainless steel. For heavy hands-on traffic, healthcare, schools, or anywhere wiped down constantly, stainless in 630 satin stainless is the one that holds up to cleaners and hides wear. Brass and bronze in 605, 606, 612, or 613 are the choice when the pull has to match existing decorative trim; aluminum in 628 pairs with aluminum storefront and interior frames.
