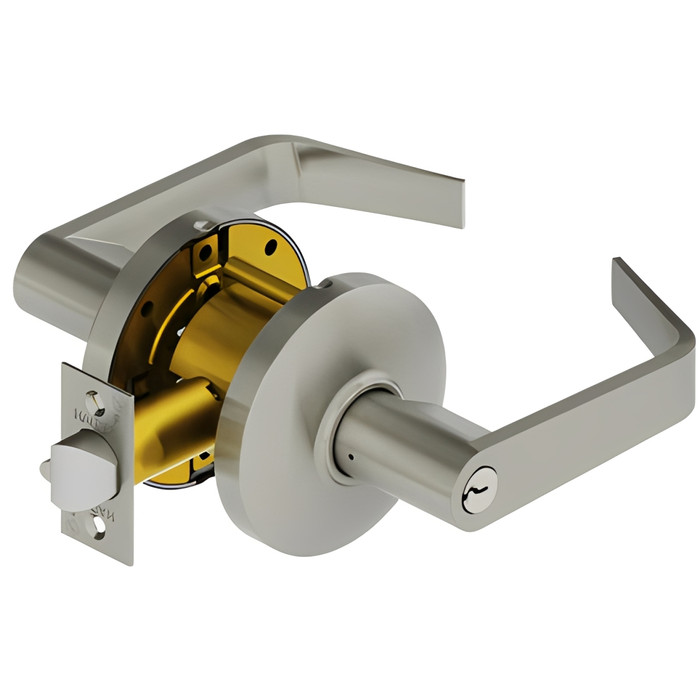

Hager 3482 Grade 1 Institution Cylindrical Lock, Non-Handed

Hager 3482 Grade 1 Institution Cylindrical Lock with Non-Handed Design

(No reviews yet) Write a Review

Model: 3482 WTN US26D
$547.66
$459.23
Selected Finish is
Selected Lever Type is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$547.66
$459.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 3482 Grade 1 Institution Cylindrical Lock with Non-Handed Design

Heavy-Duty Institution Lock for Maximum Security Applications

The Hager 3482 Grade 1 Institution Cylindrical Lock delivers professional-grade security for demanding institutional environments. This non-handed lock features a 1/2" throw stainless steel deadlocking latchbolt with 2-3/4" standard backset and accommodates door thickness from 1-3/8" to 2". BHMA Grade 1 certified and UL listed for up to 3 hours fire rating, this lock provides reliable performance for extra heavy duty commercial, industrial, and institutional applications.

Professional Features & Benefits

  • Grade 1 Certification: BHMA certified ANSI A156.2, Series 4000, Grade 1 for maximum durability and security in institutional environments.
  • Fire Rating Compliance: UL/cUL listed for all functions up to 3 hours "A" label single doors with UL10C positive pressure rating.
  • Flexible Door Compatibility: Accommodates door thickness from 1-3/8" to 2" with multiple backset options including 2-3/4" standard, 2-3/8", 3-3/4", and 5" configurations.
  • Heavy-Duty Construction: Heavy gauge steel chassis with zinc dichromate coating for corrosion resistance and thru-post mounting for enhanced security.
  • Deadlocking Security: 1/2" throw stainless steel latchbolt with deadlocking feature prevents manipulation when door is closed, with 3/4" throw option available.
  • Non-Handed Design: Universal installation with free wheeling levers eliminates handing requirements for simplified inventory and installation.
  • ADA Compliance: Meets ANSI A117.1 Accessibility Code requirements and ANSI A250.13 Severe Windstorm compliance for comprehensive code adherence.
  • Lifetime Warranty: Comprehensive lifetime warranty coverage for long-term confidence and protection in institutional applications.
  • No exposed mounting screws

Technical Specifications

  • Applications: Extra Heavy Duty Commercial
  • Backsets: 2-3/4" (70mm) - Standard
  • Certifications: ADA Compliant ANSI A117.1 Accessibility Code
  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Schlage C - Standard, Other keyways optional
  • Door Strike: ASA Strike
  • Door Thickness: 1-3/8" - 2" (35 mm - 51 mm)
  • Exposed Trim: Wrought brass, bronze, and stainless steel
  • Finishes: US3, US4, US10B, US26, US26D
  • Functions: Institution (F87)
  • Grade: Grade 1
  • Handle Type: Lever
  • Keyed: Yes
  • Lever Options: Archer, August and Withnell
  • Lock Chassis: Heavy gauge steel, zinc dichromated for corrosion resistance.
  • Lock Type: 1/2" (13 mm) throw, stainless steel
  • Notes: SFIC option available (Cores are sold separately - standard)
  • Options: Lead Lining
  • Rose Diameter: 3-17/32" (90 mm)
  • Standard Door Prep: 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Strikes: 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike - Standard
  • Subcategory: Cylindrical Locks
  • Warranty: Lifetime

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 2", backset configuration, and standard 2-1/8" cross bore with 1" edge bore preparation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for thru-bolt mounting configuration.
  3. Prepare door by drilling required 2-1/8" diameter cross bore and 1" diameter edge bore holes per manufacturer specifications.
  4. Install lock chassis using thru-post mounting system and secure all mounting hardware per manufacturer torque specifications.
  5. Adjust lever operation and latchbolt alignment for proper engagement with strike plate and smooth operation throughout full range of motion.
  6. Test lock operation including key function, lever operation, and deadlocking latchbolt engagement to verify proper installation and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Healthcare and Medical Facilities
  • Educational Institution Security
  • Correctional and Detention Facilities
  • Mental Health and Treatment Centers
  • Government and Municipal Buildings
  • Industrial Security Applications
  • High-Security Commercial Buildings

Why Choose Hager Quality?

Hager 3482 cylindrical locks deliver institutional-grade security with heavy gauge steel construction and zinc dichromate corrosion resistance rated for Grade 1 performance. UL listed for 3-hour fire rating and BHMA certified for demanding applications where maximum security and reliability are essential. Lifetime warranty coverage provides long-term confidence for critical institutional security applications.

Product Specs

Warranty:
5 Year
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Subcategory:
Cylindrical Locks
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Handle Type:
Lever
Grade:
Grade 1
Product Attribute:
Cylindrical Locks
Product Model:
3482
Product Function:
Asylum/Institution/Utility
Door Thickness Range:
1-3/8" to 2"
Door Strike:
ASA Strike
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Hager 3482 WTN US26D – Frequently Asked Questions

1) Will the Hager 3482 institution lock fit a 1-3/8 inch door, or does it need a 1-3/4?
Both work. The 3482 covers 1-3/8 inch through 2 inch doors, so it handles older 1-3/8 inch interior leaves and standard 1-3/4 inch commercial doors off the same part number, plus thicker leaves up to 2 inches. Standard backset is 2-3/4 inches. Door prep is a 2-1/8 inch cross bore with a 1 inch edge bore, thru-bolted.
2) What does the F87 institution function actually do, and is it the right lock for a patient room or holding room?
Institution function (F87) means both levers are locked at all times and a key on either side is the only way through. There is no button, no thumbturn, nothing a person on either side can operate without a key. That is why it goes on psychiatric and holding rooms, mechanical and utility spaces. If staff need to be able to leave the room freely, F87 is the wrong choice, a storeroom or classroom function is what you want instead.
3) Do I have to order the Hager 3482 left hand or right hand?
No handing to specify. The 3482 is non-handed with free wheeling levers, so one part number covers left and right hand openings. For a facility carrying spares across a building, that means one shelf item instead of two.
4) Will the Hager 3482 latch into the strike prep already in my frame?
It ships with an ASA strike, 1-1/4 x 4-7/8 inches, which is the standard commercial hollow metal frame prep. If your frame is already cut for an ASA strike the lock drops straight in. The latchbolt is stainless with a 1/2 inch throw and deadlocks when the door closes, and a 3/4 inch throw option is available if your gap needs it.
5) Can I key the Hager 3482 into my existing Schlage C master key system?
Yes. The 3482 comes standard with a Schlage C keyway cylinder, so it keys into an existing C system, and other keyways are available if your facility runs something else. It is a single cylinder lock, keyed both sides on the institution function.
6) Does the Hager 3482 take a small format interchangeable core?
An SFIC version is available and shows up on the order as SFIC Prep, Less Core in all five finishes and all three lever styles. Cores are not included, so if you run an SFIC system you order the core separately from your own core stock. If you are not on SFIC, take the Standard cylinder option and it arrives with a Schlage C cylinder.
7) Is the Hager 3482 rated for a fire door?
Rated up to 3 hours on A label single doors, UL and cUL listed for all functions, with a UL10C positive pressure rating. It also meets ANSI A117.1 for accessibility and ANSI A250.13 for severe windstorm, and it is BHMA certified to ANSI A156.2 Series 4000 Grade 1.
8) Will a Falcon K101 or Corbin Russwin CL3110 work in place of a Hager 3482?
No - both are passage locks and neither is keyed. The Falcon K101 is a Grade 1 heavy duty non-handed passage lever, fire rated, for doors 1-3/8 inch to 2-1/4 inch. The Corbin Russwin CL3110 is a Grade 1 vandal resistant passage lever, fire rated, for doors 1-3/4 inch to 2 inch. They share the Grade 1 rating and the non-handed convenience with the Hager 3482, but the 3482 is keyed with a single cylinder. A passage lock latches and releases from both sides at all times; use one only where the door does not have to lock.
9) What is the closest equivalent to a Hager 3482 institution lock from another manufacturer?
The Dexter C1000 Series asylum lock is the nearest match. Both are Grade 1 cylindrical locks built for the asylum/institution/utility function, and both fit doors 1-3/8 inch to 2 inch thick, so the door prep and thickness range carry across. The Hager 3482 carries a 2-3/4 inch backset with an ASA strike and is keyed single cylinder; the Dexter is catalogued as the F87 asylum function. If you are matching an existing institution opening, either lock addresses the same door.
10) The opening does not need an asylum function - what keyed Grade 1 cylindrical lever should be used instead of a Hager 3482?
It depends on how the door needs to behave. For a classroom door keyed from the outside, the Dexter C1000 Series classroom lock is Grade 1 with a clutching lever for doors 1-3/8 inch to 1-3/4 inch thick. For an office or entry door, the Dexter C1000 Series entry/office lock is Grade 1 in the same thickness range. The Hager 3482 is the institution (F87) function, which is the one to hold onto when both sides need to stay secured and key-operated.
11) The door needs to release on a fire alarm - what takes the place of a Hager 3482 there?
An electrified chassis. The Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running 12VAC/DC, fitting doors 1-3/4 inch to 2 inch. Fail safe means the lock unlocks when power drops, which is what an access control or alarm release sequence needs. The Hager 3482 is a mechanical keyed institution lock with a 2-3/4 inch backset and no electrical connection, so on a door tied to the alarm system the electrified lever is the substitution to make.
12) Which Grade 1 lever locks fit a 1-3/8 inch door, since many commercial chassis start at 1-3/4 inch?
The Hager 3482 covers 1-3/8 inch to 2 inch. Among Grade 1 peers, the Dexter C1000 asylum lock also covers 1-3/8 inch to 2 inch and the Falcon K101 passage lever covers 1-3/8 inch to 2-1/4 inch. The Corbin Russwin CL3110 passage lever and the Design Hardware X75 Grade 1 passage lever start at 1-3/4 inch, so on a thin institutional door those two drop out and the 3482, the Dexter and the Falcon remain.
13) What do I have to pick when ordering a Hager 3482, and what comes in the box?
Three choices: lever design (Archer, August, or Withnell), finish (605 bright brass, 606 satin brass, 613 satin bronze oil rubbed, 625 bright chrome, 626 satin chrome), and cylinder (Standard, or SFIC Prep Less Core). Every lever design is offered in every one of those five finishes. The ASA strike is standard with the lock. Lead lining is a separate option if the opening is an X-ray or imaging room.
14) How much wall or trim clearance does the Hager 3482 rose need?
Rose diameter is 3-17/32 inches (90 mm), which matters when the lock sits close to a frame stop, a narrow trim band, or next to a second piece of hardware. There are no exposed mounting screws on the outside, the chassis thru-posts through the door instead, so the rose face stays clean and there is nothing to back off from the secure side.
15) What is the difference between the Hager 3482 and the Dexter C1000 asylum lock?
Both are Grade 1 cylindrical locks in the asylum/institution F87 function, and both cover 1-3/8 to 2 inch doors, so either fits the same opening range. The 3482 is the one to spec if you want the Schlage C keyway standard with an SFIC option, three lever designs, and the UL 3 hour fire listing stated on record. Pick between them on which lever trim and finish match the rest of the building.
16) Is there a lighter-duty asylum lock than the Hager 3482 for a lower-traffic institutional door?
The Arrow MK33-BD-CS is the step down. It is a Grade 2 heavy duty asylum/institution/utility lock with a ball knob and a conventional cylinder in the Schlage C keyway. The Hager 3482 is Grade 1 with a lever handle and Schlage C standard keying. The practical differences are the ANSI grade and the trim: knob versus lever. If the opening has to meet accessibility requirements, the lever trim on the 3482 is the one that answers that.
17) For a storeroom door on the same corridor as Hager 3482 institution locks, what lock keeps the same keyway?
The Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for doors 1-3/8 inch to 1-3/4 inch thick, and the Cal-Royal AG03 classroom lever uses a 6-pin Schlage C keyway with a 2-3/4 inch backset. The Hager 3482 is supplied Schlage C standard as well and uses the 2-3/4 inch backset, so a Cal-Royal AG series lock on the storeroom door can be keyed into the same system and prepped on the same backset line. The grade differs: the 3482 is Grade 1.
18) Can a keypad lever like the Lockey 2835 or Delaney LP250 replace a Hager 3482 on an institutional door?
Not on a door that has to stay secured on both sides. The Lockey 2835 is a mechanical pushbutton keyless lever with passage function for doors 1-3/16 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Hager 3482 is a Grade 1 keyed lock with a single cylinder in the institution function. Keypad units trade the key cylinder for a code, so they do not tie into an existing master key system the way the 3482 does.
19) Does a Grade 3 residential lever like the Cal-Royal AUS00 or Kwikset Breton belong on an institutional door?
They are built to a different duty level. The Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for doors 1-3/8 inch to 1-3/4 inch, and the Kwikset 200BRNL Breton is a Grade 3 passage lever in the same thickness range. The Hager 3482 is Grade 1 and specified as commercial, with an institution function and a keyed single cylinder. For a facility door carrying institutional traffic, the Grade 1 chassis is the one that matches the spec.
20) Will the Hager 3482 hold up in a corridor that gets abused?
Chassis is heavy gauge steel with a zinc dichromate coating for corrosion resistance, thru-post mounted, and rated extra heavy duty commercial at Grade 1. Exposed trim is wrought brass, bronze, or stainless depending on finish. The deadlocking latchbolt also blocks the credit card trick, the bolt cannot be depressed once the door is shut against the strike.
21) What should be ordered alongside a Hager 3482 for the inactive leaf or a door that only needs a matching pull?
A dummy trim in the same lever family. The BEST 9K Series 1DT is a Grade 1 heavy duty non-keyed single dummy trim cylindrical lever, and the BEST 7KC Series 1DT is the Grade 2 medium duty equivalent. Neither latches - they mount as fixed trim so the leaf looks like the locked openings. The Hager 3482 itself is the working keyed lock, offered with Archer, August and Withnell lever designs.
