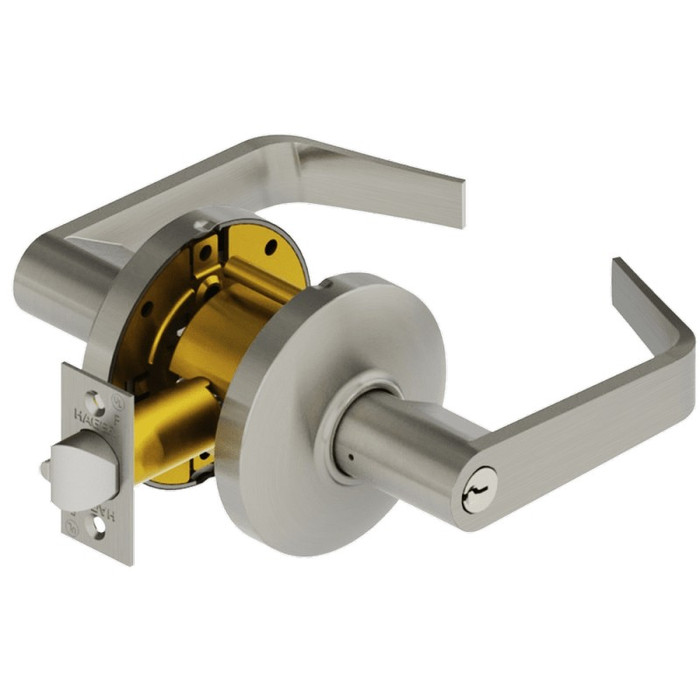

Hager 3495 Grade 1 Classroom Security Cylindrical Lock, Non-Handed
Applications
- Extra Heavy Duty Commercial
- Industrial
- Institution
Backsets
- 2-3/4" (70mm) - Standard
- 2-3/8" (60mm) - Optional
- 3-3/4" (94mm) - Optional
- 5" (128mm) - Optional
Certifications
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.2, Series 4000, Grade 1
- ANSI A250.13 Severe Windstorm Compliant
- Miami Dade County, FL NOA #22-0816.08
Cylinders/Cores
- Keyed Different - standard
- Cylinder drilled 6 pin, Keyed 5 pin - standard
- Other Keying options, including 6 pin keyed, available from factory
- Zero bit cylinders will be 6 pin keyed
- SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately
- LFIC Zero-BIt or combinated, brass 6 pin cores sold separately
Door Thickness
1-3/8" - 2" (35 mm - 51 mm)
Exposed Trim
- Wrought brass, bronze, and stainless steel
- Lever is zinc based, plated to match BHMA symbols
- Locking indicator arrow stamped on the interior rose
Features
- No exposed mounting screws
- Non-handed
- Free wheeling levers
Finishes
- US3, US4, US10B, US26, US26D
- Anti-Microbial Coating (US26D finish only)
Functions
Intruder Classroom (F110)
Keyway
Schlage C - Standard, Other keyways optional
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed
- 3/4" (19 mm) throw latchbolt available
Lever Options
Archer, August and Withnell
Lock Chassis
- Heavy gauge steel, zinc dichromated for corrosion resistance.
- Thru-post mounted.
Notes
- SFIC option available (Cores are sold separately - standard)
- LFIC option available (Cores sold separately - standard)
Options
- Lead Lining
- Tactile Warning
- Split Finish
Rose Diameter
3-17/32" (90 mm)
Strikes
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
- Optional strikes available
Warranty
Lifetime
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Warranty:
- 5 Year
- Keyed Function:
- Single Cylinder
- Model:
- 3495
- Door Thickness:
- 1-3/8" to 2"
- Backset:
- 2-3/4"
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Leversets
- Subcategory:
- Cylindrical Locks
- Keyed:
- Yes
- Strike:
- ASA Strike
- Commercial/Residential:
- Commercial
- Lock Type:
- Cylindrical
- Handle Type:
- Lever
- Function:
- Intruder Classroom
- Grade:
- Grade 1
- Product Attribute:
- Cylindrical Locks
