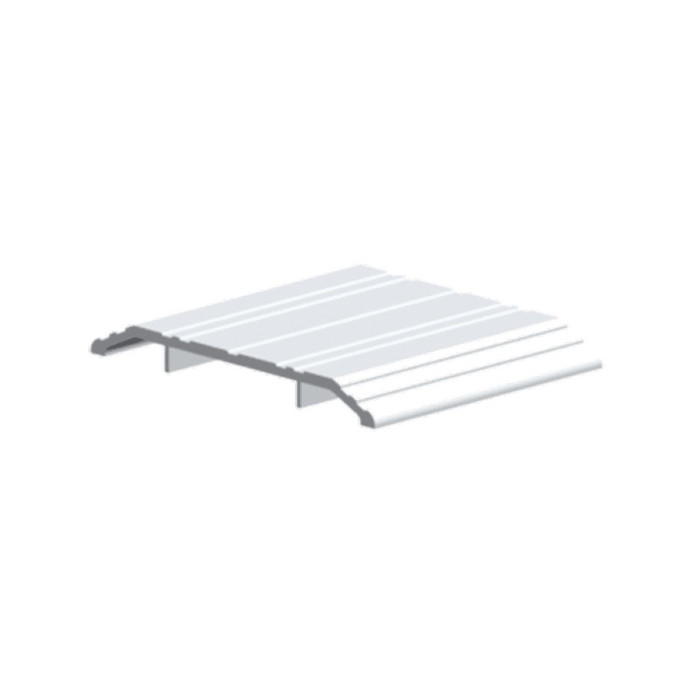

Hager 412S Saddle Threshold 5" x 1/2" BHMA Certified with Handicap Accessibility

Hager 412S Saddle Threshold 5" x 1/2" BHMA Certified with Handicap Accessibility

(No reviews yet) Write a Review

Model: 412S 36 MIL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$189.62
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 412S Saddle Threshold 5" x 1/2" BHMA Certified with Handicap Accessibility

Professional Door Threshold Solution

The Hager 412S Saddle Threshold delivers professional-grade door transition performance with 5" width and 1/2" height dimensions. This BHMA certified threshold meets handicap accessibility requirements and features UL Listed fire rating for code compliance. Designed for commercial applications requiring reliable door sealing and smooth transitions.

Professional Features & Benefits

  • Precise Dimensions: 5" (127 mm) width and 1/2" (13 mm) height provide optimal door clearance and transition performance.
  • BHMA Certification: Meets rigorous industry standards for commercial door hardware applications with verified performance testing.
  • Handicap Accessibility Compliance: Engineered to meet ADA requirements for accessible door transitions in commercial facilities.
  • Fire Rating Certification: UL Listed construction ensures code compliance for fire-rated door assemblies and emergency egress applications.
  • Sure-Step Non-Slip Option: Available with abrasive coating for enhanced traction and slip resistance in high-traffic areas.
  • Professional Installation Hardware: Includes 10 x 1-1/2" sheet metal screws with additional fastener options available upon request for various substrate types.

Technical Specifications

  • Certifications: BHMA Certified Handicap Accessibility
  • Commercial/Residential: Commercial
  • Fasteners: 10 x 1-1/2” sheet metal screws, other screw types and anchors available upon request
  • Fire Rating: UL Listed
  • Height: 1/2" (13 mm)
  • Options: Available with Sure-Step non-slip abrasive coating
  • Subcategory: Door Thresholds
  • Width: 5" (127 mm)

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager threshold products deliver professional-grade reliability with BHMA certification and UL Listed fire rating for demanding commercial applications. The 412S saddle threshold combines precise 5" x 1/2" dimensions with handicap accessibility compliance for dependable door transition performance where code compliance and accessibility are essential.

Door sealing solutions for smoke, light, air, and sound control. Positive-pressure-tested gasketing available for fire door assemblies.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Thresholds - Saddle
Commercial/Residential:
Commercial
Subcategory:
Door Thresholds
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Hager 412S 36 MIL – Frequently Asked Questions

1) Will the Hager 412S saddle threshold work on an ADA accessible entrance?
Yes. The 412S rises 1/2 inch (13 mm) above the floor, and it is BHMA certified for handicap accessibility. Half an inch is the maximum vertical rise ADA allows at a doorway, and beveled saddle profiles at that height are what accessible openings are specified with. If your opening already has a threshold taller than 1/2 inch and you are correcting an accessibility deficiency, this is the swap that gets you there.
2) What lengths does the Hager 412S saddle threshold come in?
Two lengths, 36 inch and 72 inch, both in milled aluminum. The 36 inch covers a single standard door opening. The 72 inch is the one to order for a pair of doors, or when you want to cut one stick down to two single openings and keep a matched finish across both.
3) Does the Hager 412S come with screws, or do I need to buy fasteners separately?
Screws are included: 10 x 1-1/2 inch sheet metal screws. Those are sized for wood and for shooting into a wood sub-floor. If you are anchoring into concrete or terrazzo, which is most commercial exterior openings, those sheet metal screws are the wrong fastener and Hager will supply other screw types and anchors on request. Sort that out before the crew is on site with a bag of screws that will not hold in slab.
4) Will a 1/2 inch threshold leave enough clearance under my existing door?
The 412S adds 1/2 inch (13 mm) of height at the crown. Measure the gap between the bottom of your door and the finished floor before ordering: if you have less than 1/2 inch of undercut, the door will bind on the threshold and you either plane the bottom or go with a lower profile saddle. If you are replacing an older saddle of similar height it usually drops straight in. On new hollow metal openings the standard door undercut clears a half inch saddle without modification.
5) What is the closest equivalent to the Hager 412S saddle threshold from another manufacturer?
The Hager 412S is a saddle threshold measuring 5 inches wide by 1/2 inch high, supplied in milled aluminum in 36 inch and 72 inch lengths. The nearest peer on dimensions is the NGP 653, an aluminum alloy door saddle at 1/2 inch by 5-1/2 inch. Both sit at the same 1/2 inch rise, so door clearance and undercut stay the same when you swap; the NGP 653 is a half inch wider across the sill and is an offset profile rather than a flat saddle, so confirm the sill condition before substituting.
6) Which threshold should I use instead of the Hager 412S when the opening needs a lower rise for wheelchair traffic?
The Hager 412S rises 1/2 inch (13 mm) above the floor and is BHMA certified for handicap accessibility. If the opening calls for a shallower rise, the Pemko 272 is a flat saddle threshold at 1/4 inch by 6 inches in heavy-duty aluminum and is described as ADA compliant, and the NGP 1013 is a saddle threshold at 1/4 inch by 10 inches in mill aluminum with BHMA certification. Both cut the rise in half against the 412S while widening the sill coverage, which changes the fastener layout and the width of the sill you need to land on.
7) What threshold do I use in place of the Hager 412S on a fire-rated opening that needs a 3-hour positive pressure rating?
The Hager 412S carries a UL Listed fire rating and is BHMA certified for handicap accessibility, which covers most commercial fire door assemblies. Where the submittal calls out a specific 3-hour positive pressure rating, the Cal-Royal CR3700 saddle threshold series is rated 3-hour positive pressure. The Cal-Royal CR2000 saddle threshold series is another fire rated, ADA compliant saddle option. Match the rating on the door label and the frame assembly listing when you specify.
8) What is the difference between a saddle threshold and an offset threshold?
A saddle like the Hager 412S is symmetrical, sloping up from both sides to a flat crown, so it works where the finished floor is at roughly the same level inside and out and the door closes down onto the center. An offset threshold, such as the NGP 653, is stepped rather than symmetrical, made for openings where the exterior sits lower or where the door has to seal against a raised interior leg. Pick the saddle for a flush floor-to-floor transition and the offset when there is a change of level or you need a stop face for weatherstripping.
9) Is there a non-slip version of the Hager 412S threshold for wet or high traffic entries?
Yes. The 412S is available with Hager's Sure-Step abrasive coating, a gritted surface on the crown that gives traction underfoot. Specify it on entries that get rain and snow tracked in, pool and locker room doors, and anywhere a wet aluminum saddle turns into a slip claim. Plain milled aluminum is fine for interior and covered openings.
10) Is the NGP 653 a drop-in replacement for the Hager 412S?
Not a drop-in. The Hager 412S is a flat saddle threshold 5 inches wide by 1/2 inch high; the NGP 653 is an offset threshold, 1/2 inch by 5-1/2 inch in aluminum alloy. An offset threshold steps between two floor heights, so it is meant for a different sill condition than a flat saddle even though the two share the 1/2 inch rise. If the existing sill is level on both sides of the door, the 412S profile is the one that matches; save the 653 for openings where the interior and exterior floors do not meet flush.
11) For standardizing thresholds across a facility, how do the BHMA certified saddle options differ?
Two of the aluminum saddle options carry BHMA certification: the Hager 412S at 5 inches by 1/2 inch in milled aluminum, and the NGP 1013 at 10 inches by 1/4 inch in mill aluminum. They differ in the two dimensions that drive the install, rise and sill coverage, so standardizing on one means one undercut and one sill width across the building rather than mixing. The 412S is a commercial product and comes in 36 inch and 72 inch lengths, so wider openings and pairs can be cut from the same part number you use on singles.
12) Can I cut a Hager 412S threshold down to fit my door opening?
Yes. Aluminum saddle thresholds are routinely cut to length on site with a miter saw and a non-ferrous blade, and that is why the 412S is sold in 36 inch and 72 inch sticks rather than every possible opening width. Measure jamb to jamb, cut, then re-mark the fastener holes so you are not drilling through the original spacing on a shortened piece.
13) Is the Hager 412S rated for commercial traffic or is it a residential threshold?
Commercial. The 412S is a commercial specification saddle, which is why it carries BHMA certification and a UL Listing rather than just a size. It is aimed at office buildings, schools, hospitals, retail, warehouses, apartment buildings, and municipal facilities, where the same opening cycles all day and the threshold has to survive carts, hand trucks, and grit.
14) Will the Hager 412S match the milled aluminum thresholds already installed in my building?
The 412S ships in milled aluminum, the plain mill finish that is the default across commercial threshold lines, so it reads the same as most existing aluminum saddles in a corridor or entry run. If you are standardizing a building on one threshold, the 5 inch by 1/2 inch profile in both 36 inch and 72 inch lets you cover singles and pairs out of the same part.
