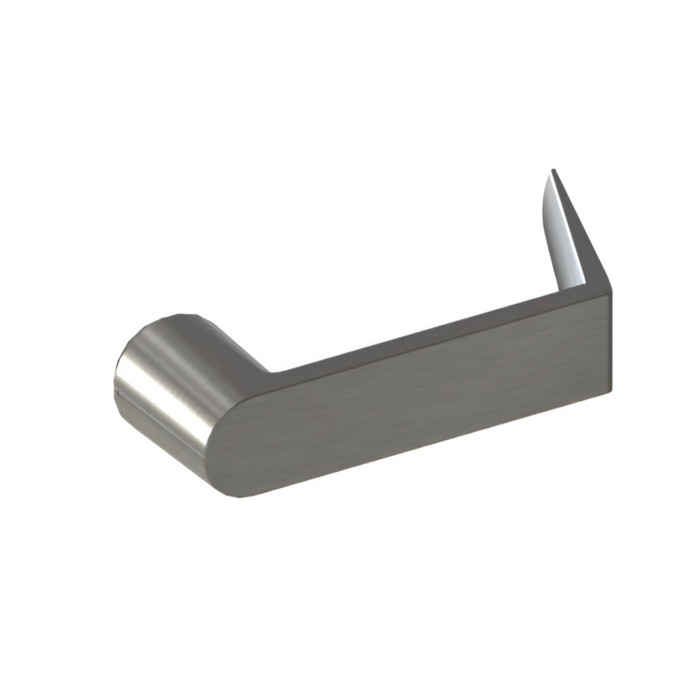

Hager 45CE Grade 1 Classroom Exit Device Trim, Cylinder Escutcheon, Charles Lever, Non-Handed

Hager 45CE Grade 1 Classroom Exit Device Trim with Cylinder Escutcheon and Charles Lever

(No reviews yet) Write a Review

Model: 45CE CHA US26
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$645.27
$381.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 45CE Grade 1 Classroom Exit Device Trim with Cylinder Escutcheon and Charles Lever

Professional Classroom Security Solution

The Hager 45CE Grade 1 Classroom Exit Device Trim provides secure classroom functionality with cylinder escutcheon design and Charles lever configuration. This non-handed trim features ANSI/BHMA A156.3-2014 Grade 1 certification and ADA compliance for accessible buildings. The escutcheon measures 2-3/4" x 10-3/4" (70mm x 273mm) with Charles lever projection of 3-3/8" (86mm). Requires a 3902 mortise cylinder (1-1/8" or 1-3/8") with standard cam for complete installation.

Professional Features & Benefits

  • Grade 1 Certification: ANSI/BHMA A156.3-2014 Grade 1 rating ensures heavy-duty performance for high-traffic commercial applications.
  • ADA Compliance: Complies with ANSI A117.1 for accessible buildings and facilities, meeting universal design requirements.
  • Classroom Function: Function 08 provides key locks or unlocks lever operation with free-wheeling lever when locked for enhanced security control.
  • Precise Dimensions: Escutcheon measures 2-3/4" x 10-3/4" (70mm x 273mm) with Charles lever projection of 3-3/8" (86mm) for accurate door preparation.
  • Cylinder Compatibility: Designed for 3902 mortise cylinder (1-1/8" or 1-3/8") with standard cam for flexible keying options.
  • Non-Handed Design: Universal configuration eliminates handing concerns during installation and ordering.
  • Multiple Finish Options: Available in US3, US4, US10, US10B, US26, US26D, and BLK finishes to match architectural requirements.
  • Lifetime Warranty: Comprehensive lifetime warranty coverage provides long-term protection and confidence.

Technical Specifications

  • ADA Compliant: t: Yes
  • ANSI/BHMA: ANSI/BHMAA156.3-2014 Grade 1
  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Requires 3902 Mortise Cylinder With Standard Cam
  • Subcategory: Exit Devices - Trim

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classrooms
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Retail Establishments
  • Industrial and Warehouse Facilities

Why Choose Hager Quality?

Hager exit device trim products deliver professional-grade reliability with zinc, stainless steel, and aluminum construction rated for ANSI/BHMA Grade 1 performance. Lifetime warranty coverage provides added confidence and long-term protection. Engineered for demanding commercial applications where dependable classroom security and ADA compliance are essential.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Devices - Accessories
Subcategory:
Exit Devices - Trim
ANSI/BHMA:
ANSI/BHMA A156.3-2014 Grade 1
Commercial/Residential:
Commercial
Cylinder and Keyways:
Requires 3902 Mortise Cylinder With Standard Cam
Product Model:
45CE
Product Function:
Classroom
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 45CE CHA US26 – Frequently Asked Questions

1) Does the Hager 45CE classroom trim come with a cylinder, or do I have to order one separately?
No cylinder is included. The 45CE needs a 3902 mortise cylinder with a standard cam, in either 1-1/8 inch or 1-3/8 inch length. Order the cylinder and keying separately, or the trim cannot be locked or unlocked.
2) Do I need to specify left or right hand for the Hager 45CE exit device trim?
No handing to specify. The 45CE escutcheon trim with Charles lever is non-handed, so one part covers left and right hand openings. Pick finish only.
3) How does classroom function work on this exit device trim?
It is Function 08 classroom. A key on the outside locks or unlocks the lever. When locked, the outside lever free-wheels so it cannot be forced, and egress from the inside is always available through the exit device itself.
4) What size cutout does the 45CE escutcheon cover, and how far does the lever stick out?
The escutcheon measures 2-3/4 x 10-3/4 inches (70mm x 273mm), and the Charles lever projects 3-3/8 inches (86mm) off the door face. Use those numbers when checking clearance to an adjacent wall, a door in a pair, or a return, and confirm the escutcheon footprint covers the existing prep before you commit.
5) Is this Hager trim a complete exit device, or just the outside trim?
Just the outside trim. The 45CE is the cylinder escutcheon plate and Charles lever that mounts on the pull side of a door already fitted with a Hager exit device. You still need the exit device itself and the mortise cylinder.
6) Will the Hager 45CE meet ADA requirements for a school corridor door?
Yes. The 45CE lever trim is ADA compliant and meets ANSI A117.1 for accessible buildings, which is why a lever is used rather than a knob. It is also ANSI/BHMA A156.3-2014 Grade 1, the heavy duty commercial rating for exit hardware traffic.
7) What finishes does the Hager 45CE classroom trim come in for matching existing doors?
Six orderable finishes with the Charles lever: 605 bright brass, 606 satin brass, 613 satin bronze oil-rubbed, 625 bright chrome, 626 satin chrome, and black. 626 satin chrome is the usual match for satin stainless hardware, and 613 for dark bronze openings.
8) Is the 45CE trim durable enough for a high traffic school or hospital door?
It is built for commercial use, Grade 1 under ANSI/BHMA A156.3-2014, with zinc, stainless steel and aluminum construction. Grade 1 is the top of three grades in that standard and the level typically specified for institutional openings.
9) Should I use classroom trim or a dummy pull on an exit device?
If staff need to lock down the outside lever with a key while free egress stays available, classroom trim like the 45CE is the right choice. If the outside should never be openable, a blank escutcheon or pull is simpler and there is no cylinder to key. If outside entry should be free at all times with no key control, night latch or passage trim is the better pick.
10) What keying should I order for the 45CE if I want it on my building master key system?
Keying is handled through the cylinder, not the trim. Specify a 3902 mortise cylinder with a standard cam in your facility keyway, masterkeyed to your existing system, in 1-1/8 or 1-3/8 inch length depending on how deep the escutcheon and door sit.
