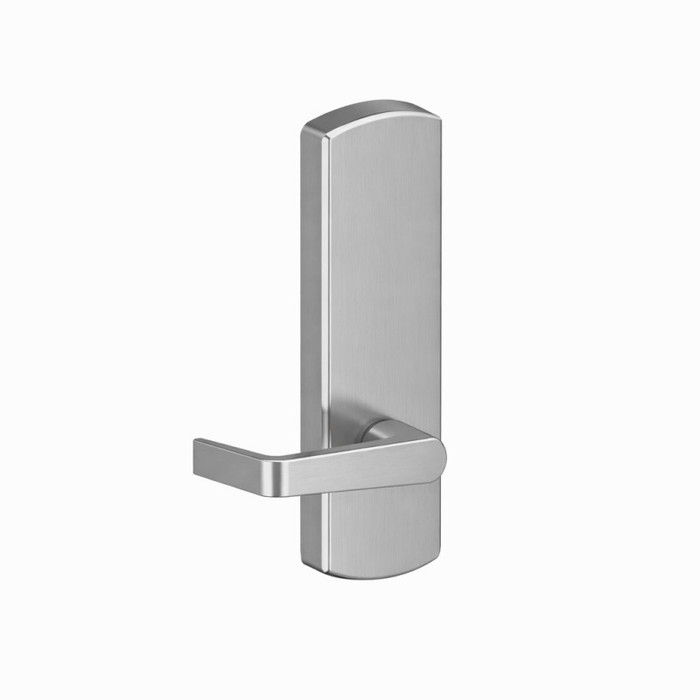

Hager 45MD Grade 1 Dummy Exit Device Trim, Mortise Dummy, Withnell Lever, Non-Handed

Hager 45MD Grade 1 Dummy Exit Device Trim with Withnell Lever

(No reviews yet) Write a Review

Model: 45DT WTN US26D-1
$621.08
$520.70
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$621.08
$520.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 45MD Grade 1 Dummy Exit Device Trim with Withnell Lever

Professional Mortise Dummy Trim for Commercial Exit Device Applications

The Hager 45MD Grade 1 Dummy Exit Device Trim features a mortise dummy configuration with Withnell lever design for commercial door applications. This non-handed trim accommodates 1-3/4" door thickness with 2-9/16" projection and 2-15/16" x 10" escutcheons. ANSI/BHMA A156.3-2014 Grade 1 certified and ADA compliant for accessible building requirements.

Professional Features & Benefits

  • Door Compatibility: Designed for 1-3/4" door thickness with precise mortise dummy configuration for professional installations.
  • Grade 1 Certification: ANSI/BHMA A156.3-2014 Grade 1 rating ensures heavy-duty performance for high-traffic commercial applications.
  • ADA Compliance: Meets ANSI A117.1 requirements for accessible buildings and facilities, ensuring universal design compatibility.
  • Withnell Lever Design: 2-9/16" projection provides ergonomic operation with professional appearance and reliable function.
  • Non-Handed Configuration: Universal design eliminates handing requirements for simplified ordering and installation flexibility.
  • Professional Construction: Zinc, stainless steel, and aluminum substrate materials provide exceptional durability for demanding commercial environments.
  • Multiple Finish Options: Available in US3, US4, US10, US10B, US26, US26D, and BLK finishes for architectural coordination.
  • Lifetime Warranty: Comprehensive lifetime warranty coverage provides long-term protection and confidence in product reliability.

Technical Specifications

  • ADA Compliant: Yes
  • ANSI/BHMA: ANSI/BHMA A156.3-2014 Grade 1
  • Certifications: ANSI/BHMA A156.3-2014 Grade 1
  • Commercial/Residential: Commercial
  • Door Thickness: 1-3/4"
  • Escutcheons: 2-15/16" x 10" (75mm x 254mm)
  • Finishes: US3, US4, US10, US10B, US26, US26D, BLK
  • Functions: 02 - Pull when device is dogged down
  • Lever Options: Archer, August, William, Withnell
  • Notes: Mortise trim (45MB, 45MC, 45MD, 45MN) does not match center line of other 4500 Series trim (45BE, 45CE, 45DT, 45NL)
  • Projection: 3-1/4" (82 mm) for Archer; 2-3/4" (70mm) for August; 3-13/32" (87mm) for William; 2-9/16" (65mm) for Withnell
  • Subcategory: Exit Devices and Trim
  • Warranty: Lifetime

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager exit device trim products deliver professional-grade reliability with zinc, stainless steel, and aluminum construction rated for Grade 1 commercial performance. Lifetime warranty coverage provides added confidence and long-term protection. Engineered for demanding commercial applications where dependable ADA-compliant performance is essential.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices Trims
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Devices - Trim
Subcategory:
Exit Devices and Trim
ANSI/BHMA:
ANSI/BHMA A156.3-2014 Grade 1
Commercial/Residential:
Commercial
Product Model:
45MD
Product Function:
Dummy
Door Thickness Range:
1-3/4"
Product Projection:
2-9/16"
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 45DT WTN US26D-1 – Frequently Asked Questions

1) Does the Hager 45MD dummy trim retract a latch, or is it just a pull?
It's a pull only. The 45MD is a dummy function trim, so the lever doesn't retract anything. Its function is listed as 02 - pull when the device is dogged down, meaning you dog the exit device open and the Withnell lever serves as a pull from the outside. If you need the outside lever to actually operate the device, you need a keyed or thumbpiece trim instead, not this one.
2) How far does the Withnell lever on the Hager 45MD stick out from the door?
Projection is 2-9/16 inches (65mm) with the Withnell lever, the shortest of the four lever styles in the family. For comparison, August projects 2-3/4 inches, Archer 3-1/4 inches, and William 3-13/32 inches. If you're tight to a return wall, an adjacent door leaf, or a wall stop, the Withnell is the one that eats the least space.
3) Can I mix the Hager 45MD mortise trim with 45BE or 45NL trim on adjacent doors and have them line up?
No. The mortise trims (45MB, 45MC, 45MD, 45MN) do not share a center line with the other 4500 Series trims (45BE, 45CE, 45DT, 45NL). If you want the levers at a consistent height across a bank of doors, stay within the mortise trim group or within the other group, don't mix them.
4) Do I need to order the Hager 45MD trim left or right handed?
No handing to specify. The 45MD mortise dummy trim is non-handed, so one part number covers both swings. That simplifies stocking it across a building where openings swing different ways.
5) Is the Hager 45MD trim rated for high-traffic commercial openings?
It's certified to ANSI/BHMA A156.3-2014 Grade 1, the heavy-duty tier for exit device hardware, and it's a commercial-only product. Construction is zinc, stainless steel, and aluminum. That's the rating facility buyers usually need for schools, hospitals, and office corridors.
6) Does the Hager 45MD lever trim meet ADA requirements?
Yes. The 45MD is ADA compliant, and the Withnell lever gives the graspable, no-tight-grasping operation ANSI A117.1 calls for on accessible openings. That's the usual reason a lever dummy trim gets specified over a plain pull.
7) How big is the escutcheon plate on the Hager 45MD trim, and will it cover my old prep?
The escutcheon measures 2-15/16 x 10 inches (75mm x 254mm). Compare that against whatever plate is on the door now before you pull the old trim, because anything wider or taller than that will leave prep showing.
8) Can I get the Hager 45MD trim with an antimicrobial coating for a healthcare corridor?
Yes. Two add-on options are available when ordering: antimicrobial coating and tactile warning. The antimicrobial option is the one hospitals and clinics typically add on touch hardware; tactile warning is used where a door leads to a hazardous area and needs to be identifiable by touch.
9) What finishes does the Hager 45MD Withnell dummy trim come in?
Five orderable finishes: 605 bright brass, 606 satin brass, 613 oil-rubbed satin bronze, 625 bright chrome, and 626 satin chrome. For a building already standardized on satin chrome hardware, 626 is the match.
