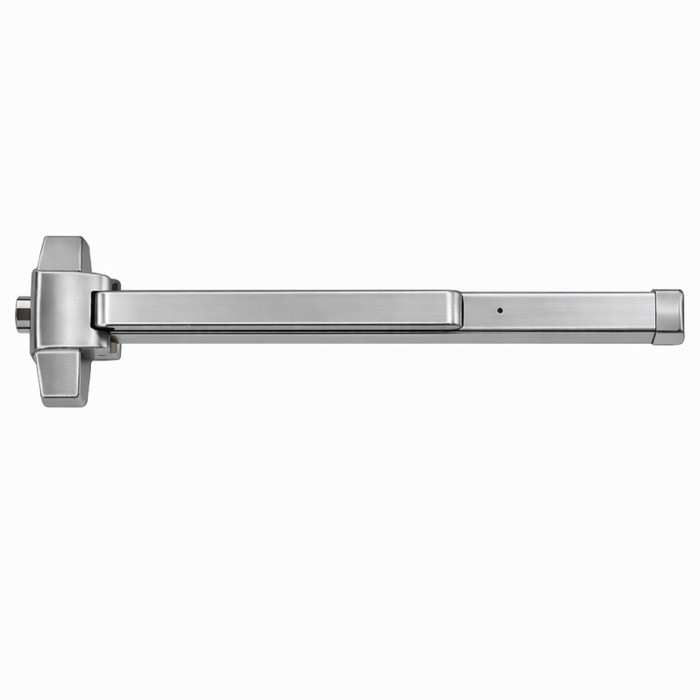

Hager 4601 Series 48" Grade 1 Rim Exit Device Narrow Stile Pushpad

Hager 4601 Series 48" Grade 1 Rim Exit Device for Narrow Stile Doors

(No reviews yet) Write a Review

Model: 4601 RIM 48 F US26D
$1,859.11
$1,543.12
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,859.11
$1,543.12
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 4601 Series 48" Grade 1 Rim Exit Device for Narrow Stile Doors

Heavy-Duty Commercial Exit Device for Aluminum and Glass Construction

The Hager 4601 Series 48" Grade 1 Rim Exit Device delivers superior performance for narrow stile doors with 2-inch minimum stile width in demanding commercial applications. This BHMA certified Grade 1 exit device features extruded aluminum construction with stainless steel push bar covers and latchbolts, specifically engineered for aluminum and glass door construction. UL 305 listed for panic hardware and UL 10C positive pressure rated, this device meets Life Safety codes and ANSI A117.1 accessibility requirements.

Professional Features & Benefits

  • Narrow Stile Compatibility: Designed for doors with 2-inch minimum stile width, ideal for aluminum and glass construction applications.
  • 48" Door Width Sizing: Factory cut for 48" wide doors with recommended overall length equal to door width minus four inches for optimal performance.
  • Grade 1 Durability: BHMA certified ANSI/BHMA A156.3-2014 Grade 1 rating ensures heavy-duty commercial performance and reliability.
  • Premium Construction: Extruded aluminum body with stainless steel push bar covers, die cast caps and covers, and stainless steel latchbolts for superior security.
  • Fire Safety Compliance: UL 10C positive pressure rated and UL 10B neutral pressure rated for comprehensive fire safety applications.
  • Installation Convenience: Non-handed device with included thru-bolts, wood screws, and machine screws plus slotted rim strikes for easy alignment adjustments.
  • Flexible Dogging Options: Standard hex key dogging with optional cylinder dogging (CD) or less dogging (LD) configurations available.
  • Surface-Mounted Trim: Escutcheon trim with built-in locking mechanism reduces door preparation and installation time with fewer required holes.

Technical Specifications

  • ADA Compliant: Yes
  • ANSI/BHMA: ANSI A156.3-2014
  • Applications: Heavy Duty Commercial
  • Certifications: BHMA Certified ANSI/BHMA
  • Commercial/Residential: Commercial
  • Cylinder and Keyways: Rim
  • Dogging: Cylinder dogging or less dogging are available to replace the standard hex key dogging on panic exit devices. Forless dogging, specify LD on order. For cylinder dogging, specify CD on order or purchase 4926 for retrofit applications. Unit requires 1-1/8” (29 mm) mortise cylinder part number 3902) with standard cam.
  • Features: Provide Necessary Security and Performance At Economy Pricing
  • Fire Rating: No
  • Grade: Grade 1
  • Installation Made Easy: For the convenience of our customers, Hager Companiesintroduced several key features to the exit device market.• Thru-bolts are included with every model. Wood and machine screws are also provided standard in every package.• Slotted RIM strikes speed up installation, allowing the installer to make easy adjustments to align the latch to•Non-handed device offers added versatility and means less inventory.•Escutcheon trim is surface mounted with the locking mechanism built inside, reducing door preparation and installation time by requiring fewer holes in the door.
  • Series: 4600
  • Shim Kits (Rim only): Shim kits are available for devices on doors with glass bead kits or other interfacing moldings. Each kit contains two1/8” (3.2 mm) shims and the appropriate longer fasteners.
  • Sizing: The exit device is cut for 36” (914 mm) and 48” (1219 mm) wide doors. For other door widths, cut exit device toappropriate length. Recommended overall length of exit device is equal to the door width minus four inches.
  • Subcategory: Rim Exit Devices
  • Wood Door Compatible: No

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, 2-inch minimum stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware using included thru-bolts, wood screws, and machine screws, securing the device to door and frame per manufacturer torque specifications.
  5. Adjust slotted rim strikes for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings with Aluminum Storefronts
  • Educational Facilities with Glass Construction
  • Healthcare Institutions with Narrow Stile Doors
  • Retail Establishments with Aluminum and Glass Entrances
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager 4600 Series exit devices deliver professional-grade reliability with extruded aluminum construction and stainless steel components engineered for demanding commercial applications. BHMA certified Grade 1 rating with UL 305 panic hardware listing and comprehensive fire safety certifications ensure dependable performance where Life Safety code compliance is essential. Backed by Hager's commitment to superior performance and value pricing for heavy-duty commercial use.

Grade 1 surface vertical rod exit device for use on pairs or single doors requiring top and bottom latching.



Product Specs

ADA Compliant:
Yes
Grade:
Grade 1
Application:
Heavy Duty Commercial
ANSI/BHMA:
ANSI A156.3-2014
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Rim Exit Devices
Features:
Provide Necessary Security and Performance At Economy Pricing
Commercial/Residential:
Commercial
Cylinder and Keyways:
Rim
Series:
4600
Wood Door Compatible:
No
Product Model:
4601 RIM
Product Size:
48"
Dogging Configuration:
Hex Key Dogging
Fire Rating:
No
Product Substrate:
Zinc, Stainless Steel
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 4601 RIM 48 F US26D – Frequently Asked Questions

1) Will the Hager 4601 rim exit device fit an aluminum storefront door with a narrow stile?
Yes. The Hager 4601 is built for narrow stile aluminum and glass doors with a 2 inch minimum stile width, so it works on typical storefront framing where a wide stile device will not mount. It is not for wood doors.
2) How do I get cylinder dogging on the Hager 4601 instead of the hex key?
Hex key dogging is standard. Specify CD on the order for cylinder dogging, or buy the Hager 4926 kit to retrofit a device already in the field. Cylinder dogging takes a 1-1/8 inch mortise cylinder, Hager part 3902, with a standard cam. If you do not want the device dogged at all, specify LD for less dogging.
3) What ratings does the Hager 4601 carry for a code-compliant egress opening?
BHMA certified to ANSI/BHMA A156.3-2014 Grade 1, UL 305 listed as panic hardware, and ADA compliant per ANSI A117.1 accessibility requirements. It is UL 10C positive pressure and UL 10B neutral pressure rated as well, though the device itself is not sold as fire rated.
4) I have a hollow metal or wood door, not storefront. Is the Hager 4601 the right device?
Not for wood. The 4601 is not wood door compatible and its narrow stile geometry suits aluminum and glass construction. For a wood door, the Adams Rite 3700 and 8700 Series narrow stile rim devices are listed as wood door compatible. For a wide stile hollow metal door, wide stile rim devices like the Corbin Russwin ED5200 or the Detex 10 Advantex are the better match.
5) I need a 48 inch rim device but the door is a wide stile hollow metal leaf - what should I use instead of the Hager 4601?
The Hager 4601 is built for narrow stile aluminum and glass doors with a 2 inch minimum stile. For a wide stile leaf at 48 inches, look at the DORMA 9300 Series 48 inch wide stile rim device, Grade 1 exit only with a 1-3/4 to 2-1/4 inch door thickness range, the Corbin Russwin ED3200 Grade 1 48 inch crossbar rim device, or the Sargent 2828 Grade 1 reversible rim device for 48 inch minimum door width.
6) What looks like a substitute for the Hager 4601 but will not latch the door?
Several bars in the same shape are not latching exit devices. The SDC MSB550 mechanical switch bar and the SDC SureExit PSB560 pressure sense bar release an electromagnetic lock rather than throwing a latchbolt, and the Detex Advantex 00 Series is a dummy exit device. The Hager 4601 is a mechanical rim device with a stainless steel latchbolt and slotted rim strikes, so those bars are not drop-in replacements unless the opening is maglock controlled.
7) Does the Hager 4601 need to be handed?
No handing required. The 4601 is a non-handed device, so one part number covers both left and right hand openings, which keeps stocking simple for a property manager carrying spares across a building.
8) What keyway and cylinder does the Hager 4601 take for outside trim?
It is a rim device, so outside key function uses a rim cylinder. The escutcheon trim is surface mounted with the locking mechanism built into the trim, so the door prep is fewer holes than a mortise-prepped trim. Note the dogging cylinder is different: that one is a 1-1/8 inch mortise cylinder, part 3902.
9) My storefront door has glass bead moldings in the way of the device. What do I need?
Order a shim kit. Hager offers shim kits for rim devices going onto doors with glass bead kits or other interfering moldings. Each kit has two 1/8 inch shims plus the longer fasteners needed to make up the offset.
10) What mounting hardware comes with the Hager 4601, and what do I still have to buy?
Thru-bolts, wood screws and machine screws are in every box, along with slotted rim strikes that let you shift the strike to align the latch. What is not included: the rim cylinder if you are adding keyed outside trim, the escutcheon trim itself, the 3902 mortise cylinder if you go cylinder dogging, and shim kits if the door has interfering moldings.
11) Can I use the Adams Rite 8800 in place of the Hager 4601?
The Adams Rite 8800 Series is a Grade 1 narrow stile rim exit device with a 1-3/4 to 2-1/4 inch door thickness range, and like the Hager 4601 it is not fire rated and not wood door compatible. The catalogued 8800 is a 30 inch device, while the Hager 4601 covered here is cut for a 48 inch door, so size the bar to the leaf.
12) How does the Hager 4601 compare to the Stanley QED211 and Dormakaba QED200 for a narrow stile job?
All three are Grade 1 narrow stile rim devices for heavy duty use. The Stanley Security QED200 Series device is described as heavy duty narrow stile with hex key dogging, the same standard dogging the Hager 4601 ships with, and the Dormakaba QED200 is a 36 inch device with a 7 ft rod. The Hager 4601 covered here is cut for a 48 inch door and offers cylinder dogging or less dogging as ordering options.
13) I need a night latch function rather than exit only - what pairs with a narrow stile opening?
The Sargent 8504 is a Grade 1 narrow stile rim exit device with a night latch function, giving key retraction of the latch from the outside. The Hager 4601 uses rim cylinder prep and surface mounted escutcheon trim with the locking mechanism built in, so the trim choice is what sets the outside function on that device.
14) What finishes does the Hager 4601 come in for matching other doors in a building?
Seven finishes: 605 bright brass, 606 satin brass, 612 satin bronze, 613 oil-rubbed satin bronze, 625 bright chrome, 626 satin chrome, and 630 satin stainless steel. Satin chrome 626 and satin stainless 630 are the usual matches on aluminum storefront entrances.
15) What is the Hager 4601 actually made of, and will it hold up on a high traffic entrance?
Extruded aluminum body with stainless steel push bar covers and stainless steel latchbolts, plus die cast caps and covers. Substrate is listed as zinc and stainless steel. It is BHMA certified Grade 1 for heavy duty commercial use, which is the top ANSI/BHMA durability tier for exit hardware.
