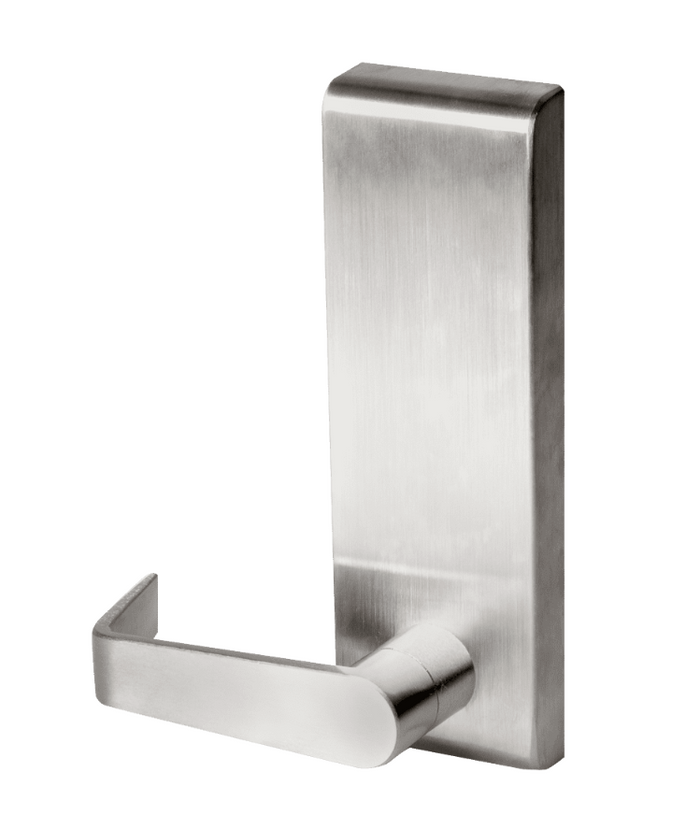

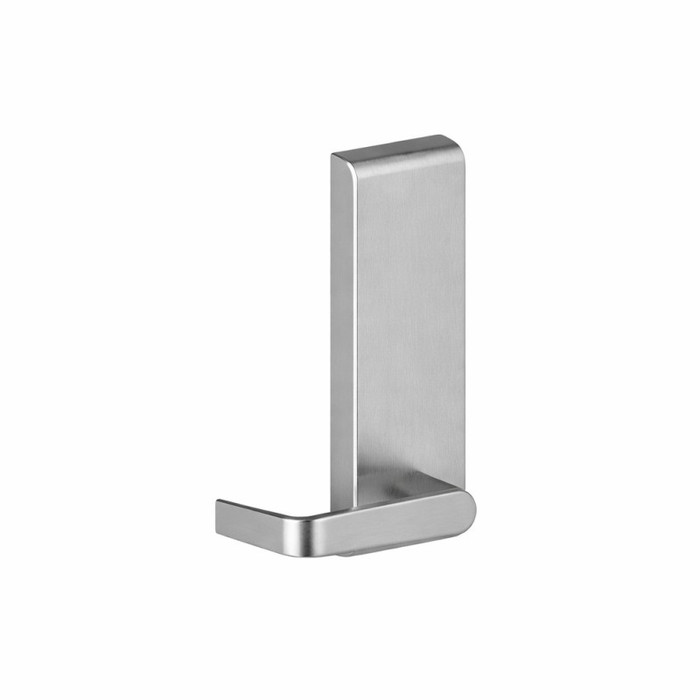

Hager 47BE 4700 Series Exit Trim, Blank Escutcheon, Steel Body, Zinc Withnell Lever, Non-Handed

Hager 47BE 4700 Series Exit Trim with Blank Escutcheon and Withnell Lever

(No reviews yet) Write a Review

Model: 47BE WTN RHR ALM
$305.83
$216.92
Selected Finish is
Selected Lever Type is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$305.83
$216.92
Adding to cart… The item has been added
Bulk Pricing:
Buy in bulk and save

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

  • Buy 51 - 76 and get 8% off
  • Buy 77 - 101 and get 15% off
  • Buy 102 - 152 and get 23% off
  • Buy 153 or above and get 32% off
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Hager 47BE 4700 Series Exit Trim with Blank Escutcheon and Withnell Lever

Professional Grade 1 Exit Device Trim Solution

The Hager 47BE 4700 Series Exit Trim delivers professional-grade performance with ANSI/BHMA A156.3-2014 Grade 1 certification for demanding commercial applications. This non-handed trim features a steel body construction with zinc Withnell lever, blank escutcheon design measuring 2-5/8" x 8", and 2-3/4" projection for optimal door clearance. ADA compliant design ensures accessibility compliance while the passage function provides always operable functionality for high-traffic commercial environments.

Professional Features & Benefits

  • Grade 1 Certification: Meets ANSI/BHMA A156.3-2014 Grade 1 standards for heavy-duty commercial applications with superior durability and performance.
  • ADA Compliant Design: Complies with ANSI A117.1 accessibility standards for barrier-free operation in commercial facilities.
  • Precision Escutcheon Dimensions: 2-5/8" x 8" escutcheon provides proper coverage and professional appearance for standard door preparations.
  • Optimal Projection: 2-3/4" Withnell lever projection ensures comfortable operation while minimizing interference with door swing clearances.
  • Heavy-Duty Construction: Steel body with zinc lever provides exceptional durability for high-traffic commercial installations.
  • Non-Handed Configuration: Universal design eliminates field confusion and reduces inventory requirements for flexible installation.
  • Always Operable Function: Passage function ensures continuous access without key operation for emergency egress compliance.
  • Manufacturer Warranty: Five-year warranty coverage provides added confidence and protection for commercial installations.

Technical Specifications

  • ADA Compliant: Yes
  • ANSI/BHMA: Meets ANSI/BHMA A156.3-2014 Grade 1
  • Certifications: Meets ANSI/BHMA A156.3-2014 Grade 1
  • Commercial/Residential: Commercial
  • Door Thickness: 1-3/4"
  • Escutcheons: 2-5/8" x 8" (67 mm x 203 mm)
  • Finishes: US3, ALM, DBZ, US32D
  • Functions: 14 - Always operable (Passage)
  • Handing: Specify when ordering
  • Lever Options: Archer, August, Withnell
  • Notes: 4700 trim have steel bodies and zinc handles. The exception being US32Dwhich has a stainless steel body.
  • Projection: 2-7/8" (73 mm) for Archer; 2-7/8" (73 mm) for August; 2-3/4" (70 mm) for Withnell
  • Subcategory: Exit Devices and Trim
  • Warranty: Five-years

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness of 1-3/4" and proper exit device compatibility.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for the 2-5/8" x 8" escutcheon.
  3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for proper trim integration.
  4. Install all mounting hardware and secure the trim assembly to door per manufacturer torque specifications.
  5. Adjust lever operation for proper alignment and smooth function throughout the full range of motion with 2-3/4" projection clearance.
  6. Test trim operation to verify proper function with exit device and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Hager Quality?

Hager 47BE exit trim products deliver professional-grade reliability with steel body construction and Grade 1 certification for demanding commercial applications. Five-year warranty coverage provides added confidence for long-term performance. Engineered for high-traffic commercial environments where dependable ADA-compliant operation and emergency egress functionality are essential.

Grade 1 rim exit device UL listed for panic and fire-rated hardware. Non-handed and packaged with thru-bolts, slotted strikes, and wood and machine screws.

Product Specs

ADA Compliant:
Yes
Product Group:
Exit Devices Trims
Product Subgroup:
Exit Devices - Trim
Product Type:
Exit Device Trims
Subcategory:
Exit Devices and Trim
ANSI/BHMA:
Meets ANSI/BHMA A156.3-2014 Grade 1
Commercial/Residential:
Commercial
Product Model:
47BE
Product Function:
Passage
Door Thickness Range:
1-3/4"
Product Projection:
2-3/4"
Product Substrate:
Zinc, Stainless Steel, Aluminum
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Hager 47BE WTN RHR ALM – Frequently Asked Questions

1) Does the 47BE trim lock, or is it always open?
It does not lock. The 47BE is function 14, always operable passage trim, so the lever retracts the exit device latch at any time with no key and no cylinder. If you need the outside lever to be locked off or key controlled, this is the wrong trim in the 4700 range.
2) Do I have to specify handing when ordering Hager 47BE exit trim?
Yes. Although the trim body is described as non-handed, handing is called out as an order specification and every buildable combination is either Left Hand Reverse or Right Hand Reverse. Exit device openings are almost always reverse bevel, so pick LHR or RHR to match the door swing before you order.
3) Is the Hager 47BE trim ADA compliant for a school or healthcare corridor door?
Yes. The 47BE is listed as ADA compliant and the passage lever needs no tight grasping or wrist twisting to operate. It is also certified to ANSI/BHMA A156.3-2014 Grade 1, which is the heavy duty tier for exit hardware and what most institutional specs call for.
4) Which lever styles come on the Hager 4700 Series exit trim, and does the choice change the projection?
Three levers: Archer, August, and Withnell. Projection differs. Archer and August both project 2-7/8 inches (73 mm); the Withnell projects 2-3/4 inches (70 mm). If clearance to a return wall, a gate, or an adjacent leaf is tight, the Withnell buys you an eighth of an inch.
5) What is the 47BE trim actually made of, and does the finish change the material?
Steel body with a zinc lever across the range, with one exception: the US32D (630 satin stainless) version has a stainless steel body. Substrate is listed as zinc, stainless steel, and aluminum. For coastal or washdown areas, the 630 stainless build is the one to spec.
6) What finishes can I get on Hager 47BE exit trim to match other doors in my building?
Orderable finishes are ALM aluminum, black, dark bronze, 605 bright brass, and 630 satin stainless steel, and each is available with any of the three lever styles in both LHR and RHR. Published finish codes for the 4700 trim are US3, ALM, DBZ, and US32D. For a building standardizing on satin chrome or stainless hardware, 630 is the match.
7) What is a blank escutcheon on exit trim, and when would I want it instead of a cylinder prep?
Blank means the escutcheon plate has no cylinder hole. That is what you want on a passage opening where the outside lever is always free and no key control is needed, such as a stairwell discharge or a corridor cross door. If the spec calls for key retraction or a lever that locks off, you need a trim prepped for a cylinder instead, not the 47BE.
8) Can I add a tactile warning to the Hager 47BE lever trim?
Yes, tactile warning is an available option on the 47BE trim. It is the knurled or ridged lever surface used to flag doors leading to hazardous areas, which many institutional and industrial specs require on mechanical, electrical, and loading dock openings.
