Professional Removable Mullion Solution for Panic-Rated Door Pairs

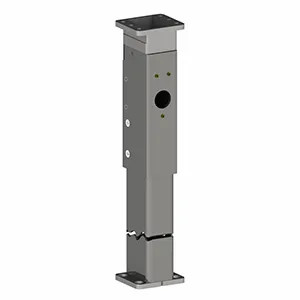

The Hager 4900 Panic-Rated Keyed Removable Mullion Set provides secure center post functionality for panic-rated door pairs while offering quick removal capability when needed. This 11 gauge steel tube mullion measures 2" x 3" and is designed for use with 4500, 4600, and 4700 Series rim exit devices. Available in 84", 96", and 120" lengths with panic-rated certification and key-removable operation for maximum security and flexibility.

Professional Features & Benefits

• Multiple Length Options: Available in 84" (2134 mm), 96" (2438 mm), and 120" (3048 mm) lengths to accommodate various door opening heights.
• Heavy-Duty Construction: 11 gauge steel tube construction with 2" x 3" (51 mm x 76 mm) profile provides exceptional strength and durability for high-traffic applications.
• Series Compatibility: Designed specifically for use with 4500, 4600, and 4700 Series rim exit devices for seamless integration.
• Quick-Release Top Fitting: Latching head allows the mullion to be removed in seconds while providing the option to lock in place without using a key.
• Panic-Rated Certification: Meets panic-rated requirements for code compliance in emergency egress applications.
• Key-Removable Security: Solid brass 6-pin rim cylinders (3901, sold separately) provide secure key-controlled removal when authorized access is needed.
• Complete Hardware Package: Includes all necessary fasteners, masonry anchors, and shim kits for professional installation.
• Manufacturer Warranty: One-year warranty coverage for added confidence and protection.

Technical Specifications

• Applications: For use with 4500, 4600, and 4700 Series rim exit devices on panic-rated pairs of doors.
• Certifications: Panic-rated
• Commercial/Residential: Commercial
• Cylinder and Keyways: Solid brass 6-pin rim cylinders, 3901, sold separately; Conventional cylinder, Ckeyway - Standard; Small Format Interchangeable Core sold separately
• Fasteners: Four (4) each 5/16" - 18 x 5/8" (16 mm) FHPMS (top bracket); Two (2) each 5/16" - 18 x 1-1/2" (38 mm) FHPMS (top bracket); Four (4) each 5/16" - 18 x 1-1/2" (38 mm) FHMS (bottom bracket); Four (4) each 5/16" - 18 masonry anchors (bottom bracket); Two (2) each 1/4"- 20 x 1-1/4" FHPMS (top fitting); Two (2) each 1/4"- 20 thru bolts (top fitting); Two (2) #10 - 24 x 3/8"- 20 x 1-1/4" FHPMS (top fitting)
• Finishes: USP - grey primer only
• Material: 11 gauge steel tube
• Mullion: 2" x 3" (51 mm x 76 mm) - 11 gauge steel tube
• Notes: Key removable.; Shim kits supplied standard.
• Shims: Two (2) each 1/2" (13 mm) and 5/8" (16 mm) spacers included (top). Two (2) 3/32" (2.4 mm) shims included (bottom).
• Strikes: Panic-rated mullions use standard rim strike supplied with exit device
• Subcategory: Door Position Switches & Alarms
• Warranty: One-year

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, opening height, and compatibility with existing 4500, 4600, or 4700 Series rim exit devices.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door frame and floor surfaces for top and bottom brackets.
3. Prepare frame and floor by drilling required holes per manufacturer specifications, using appropriate masonry anchors for bottom bracket installation.
4. Install top bracket using provided 5/16" - 18 fasteners and bottom bracket with 5/16" - 18 FHMS and masonry anchors per manufacturer torque specifications.
5. Install shim kits as needed using provided 1/2" and 5/8" spacers (top) and 3/32" shims (bottom) to ensure proper alignment and fit.
6. Test mullion removal and locking operation to verify proper function of the latching head mechanism and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Hager Quality?

Hager mullion products deliver professional-grade reliability with 11 gauge steel tube construction and panic-rated certification for demanding commercial applications. One-year warranty coverage provides added confidence for critical egress hardware installations. Engineered for seamless integration with Hager exit device series where dependable performance and code compliance are essential.
