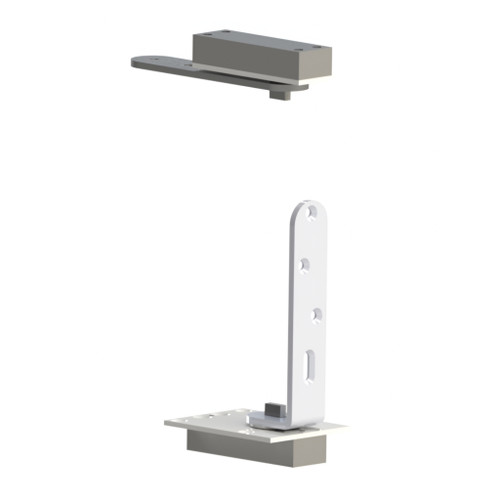

Hager 511 Mortise Hospital Pivot Set for Masonry Floor Installation

Professional Double-Acting Pivot Solution for Healthcare Applications

The Hager 511 CAMTROL double-acting head and floor pivot set provides reliable mortise application pivot hardware specifically designed for masonry floor installations. This heavy-duty pivot system supports doors up to 135 lbs with maximum dimensions of 3'6" width and 7' height, featuring self-centering operation that centers the door at 30° and opens 90° in each direction. Constructed with brass substrate and US26D finish, this pivot set includes head and floor pivots for complete installation.

Professional Features & Benefits

  • Maximum Door Capacity: Supports doors up to 135 lbs with maximum dimensions of 3'6" (1067 mm) width and 7' (2134 mm) height for versatile healthcare facility applications.
  • Self-Centering Operation: Centers door at 30° and opens 90° in each direction for smooth, controlled double-acting movement ideal for hospital traffic flow.
  • Heavy-Duty Construction: Brass substrate with US26D finish provides exceptional durability for demanding commercial healthcare environments.
  • Masonry Floor Compatibility: Specifically designed for mortise application in masonry floors with plastic cinch anchors for secure installation.
  • ANSI Compliance: Manufactured in accordance with ANSI/BHMA A156.1 standards ensuring professional-grade performance and reliability.
  • Versatile Door Compatibility: Works with wood or metal doors up to 135 lbs and wood or metal frames for flexible installation options.
  • Complete Pivot System: Includes both head and floor pivots for comprehensive door support (use with door release #610 for complete functionality).
  • Self Centering, centers door at 30°- Opens 90° in each direction;

Technical Specifications

  • ANSI/BHMA: ANSIA5702
  • Applications: Head and Floor Pivots Mortise Application in Masonry Floors.;
  • Commercial/Residential: Commercial
  • Door Weight: Up to 135 lbs
  • Duty Level: Heavy Duty
  • Electronic: No
  • Fastener Size - Wood: Door Mount Brackets1-1/4 x 12 FHHead Cam Box1-1/2 x 12-24 FHFloor Cam Box1-1/2 x 12 FH;
  • Fasteners: p lastic cinch anchors ;
  • Features: Self Centering, centers door at 30°- Opens 90° in each direction ;
  • Finishes: US26D;
  • Fire Rating: No
  • Lock Type: Mortise
  • Maximum Door Height: 7' (2134 mm);
  • Maximum Door Length: 3 '6" (1067 mm) ;
  • Maximum Door Weight: 135 lbs.;
  • Mounting Method: Center Hung
  • Notes: Includes head and floor pivots only - use with door release #610 ;
  • Pivot Type: Top & Bottom
  • Subcategory: Pivots

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, weight capacity up to 135 lbs, and masonry floor conditions for proper pivot installation.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and masonry floor surfaces for head and floor pivot placement.
  3. Prepare door and floor by drilling required holes per manufacturer specifications, ensuring proper alignment for mortise application.
  4. Install floor pivot in masonry using plastic cinch anchors and secure head pivot to door frame per manufacturer torque specifications.
  5. Adjust pivot components for proper alignment and verify self-centering operation at 30° with 90° opening in each direction.
  6. Test pivot operation throughout full range of motion and make final adjustments as needed. Install door release #610 for complete functionality. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Hospital and Healthcare Facilities
  • Medical Office Buildings
  • Surgical Centers and Clinics
  • Emergency Treatment Areas
  • Patient Room Entrances
  • Healthcare Administrative Offices
  • Medical Equipment Storage Areas

Why Choose Hager Quality?

Hager pivot systems deliver professional-grade reliability with brass construction and heavy-duty design rated for doors up to 135 lbs. Manufactured in accordance with ANSI/BHMA A156.1 standards, this pivot set provides the dependable performance essential for demanding healthcare applications. Engineered for commercial environments where smooth, controlled door operation and long-term durability are critical requirements.

Product Specs

Fasteners:
Plastic cinch anchors
Subcategory:
Pivots
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Pivots - Center Hung
ANSI/BHMA:
ANSI A5702
Commercial/Residential:
Commercial
Lock Type:
Mortise
Duty Level:
Heavy Duty
Electronic:
No
Door Weight:
Up to 135 lbs
Pivot Type:
Top & Bottom
Mounting Method:
Center Hung
Application:
Standard Door
Product Attribute:
Pivots
Product Model:
511
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Brass
Department:
Door Hardware

Hager HAG-511-US26D – Frequently Asked Questions

1) Can the Hager 511 pivot set be installed in a concrete floor, or does it need a wood subfloor?
Masonry is exactly what it's made for. The 511 is a mortise application set for masonry floors, and it ships with plastic cinch anchors for fastening the floor cam box into the concrete. The floor pivot mortises into the slab, so you need to core the pocket rather than just surface-screw a plate. If your floor is wood subfloor or a raised access floor, this is not the set to buy.
2) Does the Hager 511 pivot set include everything needed to hang the door, or do I have to order more parts?
Head and floor pivots only. The 511 set covers both ends of the door, but Hager specifies it be used with door release #610 for complete functionality, so plan on ordering that separately. Fastener sizes for wood are called out: 1-1/4 x 12 FH for the door mount brackets, 1-1/2 x 12-24 FH for the head cam box, and 1-1/2 x 12 FH for the floor cam box, with plastic cinch anchors for the masonry side.
3) Can I use the Hager 511 hospital pivot set on an aluminum storefront door?
No. The 511 mortises into a masonry floor and mounts to wood or metal doors and frames, which is not how an aluminum entrance is prepped. For aluminum doors, ZenSupply carries Kaba Ilco offset pivot sets matched to specific door lines: the IL-OP-12 Series for Armalite and Trulite style doors, the IL-OP-13 Series 1/8 inch recessed set for aluminum doors and frames including YKK style, the IL-OP-14 Series for US Aluminum and Arcadia, and the IL-OP-15 Series for Pittco and Efco. Identify the storefront line first, then match the series.
4) The door is heavier than 135 lbs. What center hung pivot set should be used instead of the Hager 511?
The Hager 511 is rated for doors up to 135 lbs, so a heavier leaf needs a higher capacity set. The Ives 7253 center hung pivot set carries 300 lb, the Ives 7255 carries 500 lb, and the Ives 7256 carries 600 lb with a bottom base mount. The Dorma CP440 double acting center hung pivot set is rated up to 440 lb for wood or steel doors. All four are center hung sets like the Hager 511, so confirm the capacity against the actual leaf weight before ordering.
5) Can Kaba Ilco offset pivots be used in place of the Hager 511?
No. The Hager 511 is a center hung top and bottom pivot set, where the pivot point sits under the door so the leaf can swing 90 degrees in each direction. The Kaba Ilco IL-OP-12, IL-OP-14 and IL-OP-15 series are offset pivot hinges built for specific aluminum storefront door and frame profiles - IL-OP-12 for Armalite and Trulite style doors, IL-OP-14 for US Aluminum and Arcadia style doors, IL-OP-15 for Pittco and Efco style doors - and the IL-OP-13 series is a 1/8 inch recessed pivot set for aluminum doors and frames in YKK style. Offset pivots hang the door off to one side on a single swing path and are not a substitute for a double acting center hung set.
6) Do I need to specify handing when ordering the Hager 511 pivot set?
No handing to specify. The 511 is a double-acting center hung set, so the door swings 90 degrees in both directions and self-centers at 30 degrees. There is no left hand or right hand version to get wrong. What you do specify is finish: it comes in 626 satin chrome.
7) What is the difference between a hospital pivot set and a regular center hung pivot?
Both hang the door on its own vertical axis rather than on hinges at the jamb, but a hospital set like the Hager 511 is double-acting: the leaf pushes 90 degrees either way and returns to center at 30 degrees, so a bed, cart, or someone with both hands full gets through from either side without reaching for a knob. A conventional center hung set such as the Ives 7253 or 7255 swings one direction and latches. Pick the 511 where traffic runs both ways and nothing needs to lock; pick a single-acting set where the opening has to secure.
8) Is the Hager 511 pivot set rated for a commercial corridor, and what standard does it meet?
It's a heavy duty commercial pivot set, built to ANSI/BHMA A156.1 and designated ANSI A5702. The pivots are brass substrate. That combination is what a facility standardizing corridor and patient room doors across a building wants on the submittal.
9) Will the Hager 511 work if I only want to replace the floor pivot and keep my existing top pivot?
It's sold as a top and bottom set, so you get both the head and floor pivots together and they're built to work as a pair. Mixing the 511 floor pivot under another maker's top pivot isn't something to count on. If what you actually need is a standalone top pivot, the Dorma 8062 walking beam center hung top pivot ships complete with a cover plate.
10) Which double acting pivot set covers wood and steel doors besides the Hager 511?
The Hager 511 is a double acting center hung head and floor pivot set that works with wood or metal doors up to 135 lbs. The Dorma CP440 is also a double acting center hung pivot set for wood or steel doors, rated up to 440 lb, and is a standard duty set where the Hager 511 is heavy duty. Both give the swing-both-directions action, so the choice comes down to leaf weight and duty level.
11) What should be ordered if only the top pivot needs replacing rather than a full Hager 511 set?
The Hager 511 is supplied as a set that includes both head and floor pivots for a mortise application in masonry floors. If the floor pivot is sound and only the head hardware is being replaced, the Dorma 8062 walking beam center hung complete top pivot with cover plate is a heavy duty top pivot supplied on its own. Match it to the existing bottom pivot and frame prep before committing, since a top-only part has to align with what is already anchored in the floor.
12) For standardizing a facility on one center hung pivot set, which options cover both fire rated and non-rated openings?
The Hager 511 is a commercial heavy duty center hung set built to ANSI/BHMA A156.1 and is not fire rated, so it covers non-rated openings up to 135 lbs. To carry one family across rated openings as well, the Ives fire rated heavy duty center hung sets run 7253 at 300 lb, 7255 at 500 lb, 7255J at 500 lb with a bottom jamb mount, and 7256 at 600 lb with a bottom base mount. That range lets a facility spec one series across leaf weights and both bottom mounting conditions.
13) Can the Hager 511 pivot set be wired for electrified access control?
No. The 511 is a mechanical pivot set with no electrical option, so power transfer to the door has to come from somewhere else, typically an electric hinge or a door loop on the hinge jamb. If the opening needs power at the leaf, plan that path before the floor pocket gets cut.
14) Will the Hager 511 pivot set match the satin chrome hardware already on my other doors?
It's supplied in 626 satin chrome, which is the brushed silver tone that matches the great majority of commercial lever and closer hardware in a healthcare or office building. That's the only finish offered, so if the building standard is bright brass or oil rubbed bronze, this set won't blend in.
